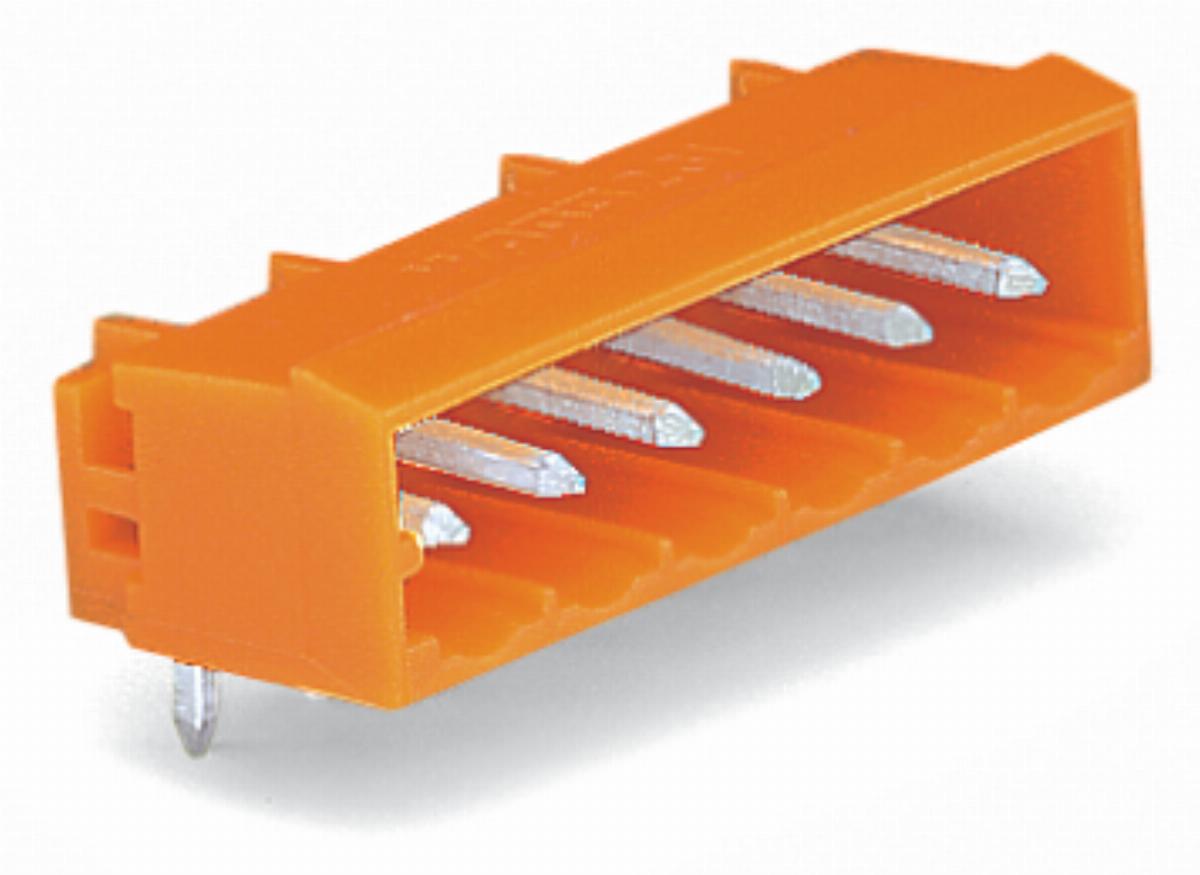

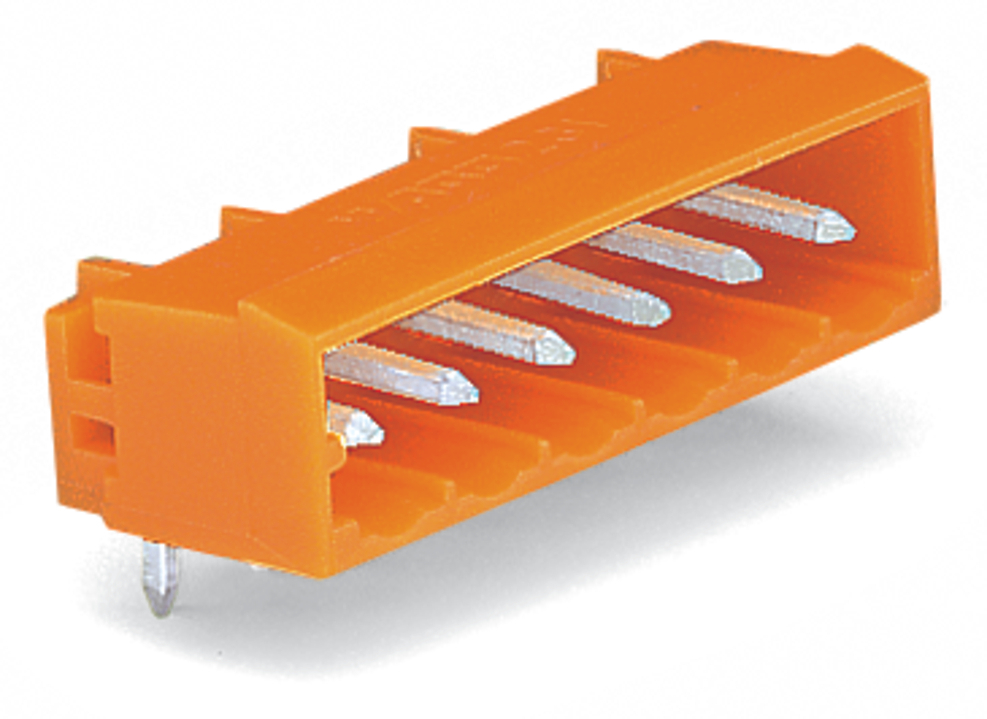

Wtyk THT Pin lutowniczy 1,2 x 1,2 mm konstrukcja kątowa, pomarańczowy 231-582/001-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 231-582/001-000 |
GTIN(EAN) | 4044918931625 |
Price unit | piece |
Catalog price | 35,92 zł (29,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
wtyk THT; pin lutowniczy 1,2 x 1,2 mm; konstrukcja kątowa; raster 5,08 mm; 22-bieg.; pomarańczowy
Additional features:
Information | Value |
---|---|
Net weight: | 8,28 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 100 °C |
Material insulation body: | Thermoplastic |
Modular spacing contacts: | 5.08 mm |
Contact type: | Pin |
Rated current In: | 16 A |
Housing colour: | Orange |
Rated surge voltage: | 4 kV |
Type of electric connection: | Soldering connection |
Number of poles: | 22 |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Length pin: | 3.8 mm |
Modular spacing connections: | 5.08 mm |
Connector model: | Free connector |
Type of banding: | None |
Over voltage category: | III |
Inflammability class of insulation material according to with UL94: | V0 |
Number of plug-in contact rows: | 1 |
Type of fastening: | Solder |
Suitable for PCB thickness: | 1.5 mm |
Material of contact surface: | Tin |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 0°/180° (horizontal) |
