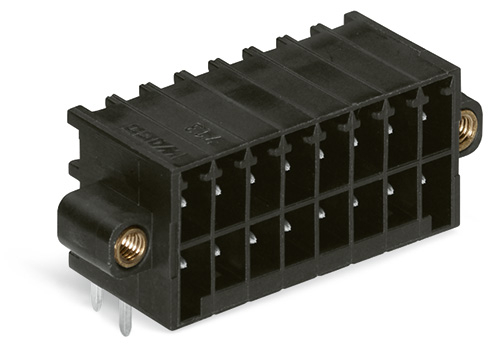

Wtyk THT 2-rzędowy pin lutowniczy 0,8 x 0,8 mm konstrukcja kątowa, czarny 713-1422/107-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 713-1422/107-000 |
| GTIN(EAN) | 4066966230390 |
| Price unit | piece |
| Catalog price | 13,99 zł (11,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
wtyk THT 2-rzędowy; pin lutowniczy 0,8 x 0,8 mm; konstrukcja kątowa; 100% ochrona przed błędnym połączeniem; gwintowy uchwyt montażowy; raster 3,5 mm; 4-bieg.; czarny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,05 g |
| ETIM class: | Printed circuit board connector |
| Operating temperature: | -60 - 100 °C |
| Material insulation body: | Thermoplastic |
| Modular spacing contacts: | 3.5 mm |
| Contact type: | Pin |
| Rated current In: | 10 A |
| Housing colour: | Black |
| Rated surge voltage: | 2.5 kV |
| Type of electric connection: | Soldering connection |
| Number of poles: | 4 |
| Type of PCB fastening: | Connecting contact |
| Rated voltage: | 160 V |
| Pollution degree: | 2 |
| Length pin: | 3.8 mm |
| Modular spacing connections: | 3.5 mm |
| Connector model: | Free connector |
| Type of banding: | None |
| Over voltage category: | III |
| Inflammability class of insulation material according to with UL94: | V0 |
| Number of plug-in contact rows: | 2 |
| Type of fastening: | Solder |
| Suitable for PCB thickness: | 1.5 mm |
| Material of contact surface: | Tin |
| Type of connection: | Flexible PCB-connector |
| Angle PCB/contact: | 0°/180° (horizontal) |
