Wtyk THR Pin lutowniczy 1,2 x 1,2 mm konstrukcja prosta, czarny 231-164/001-000/105-604/997-407
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 231-164/001-000/105-604/997-407 |
| GTIN(EAN) | 4045454000325 |
| Price unit | piece |
| Catalog price | 10,17 zł (8,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

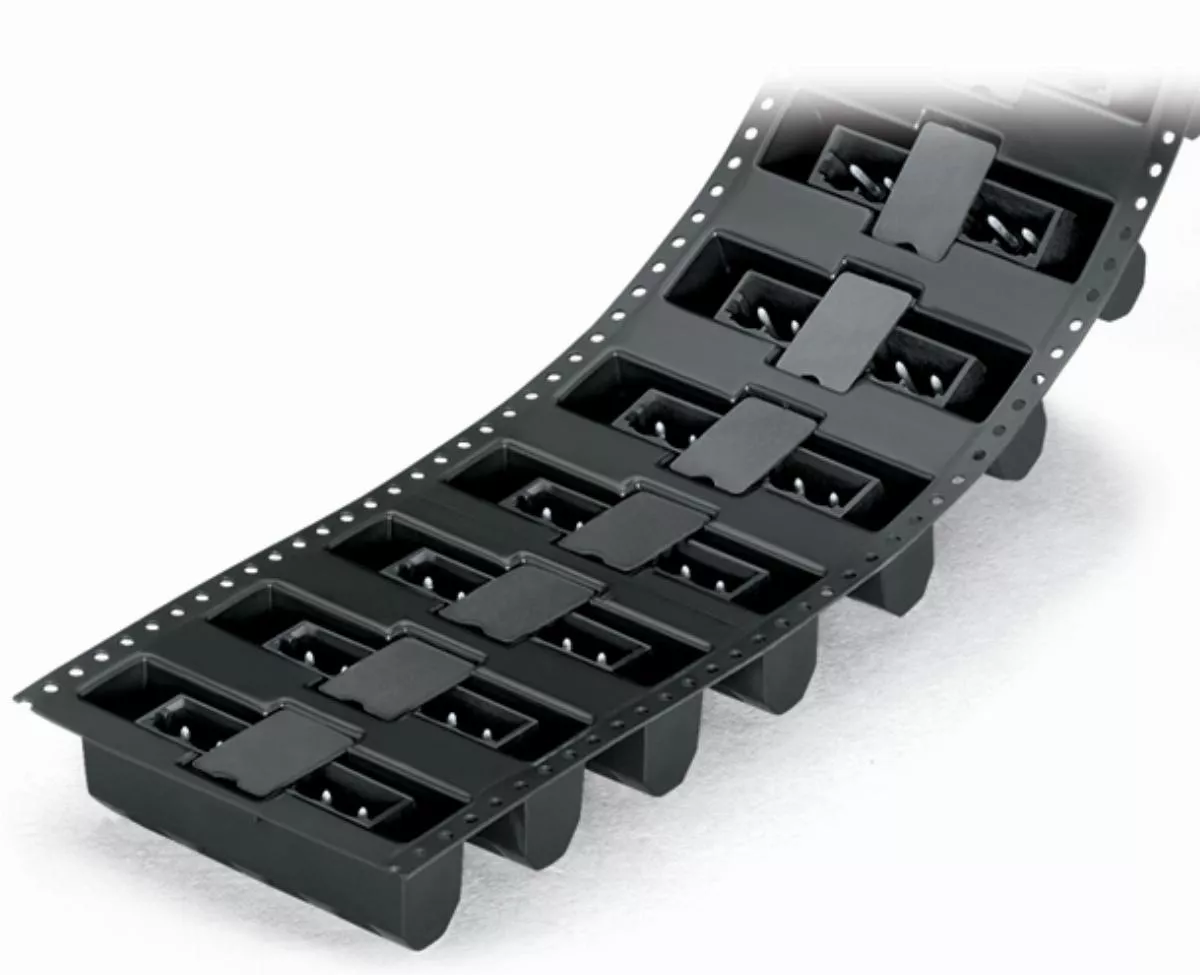

wtyk THR; pin lutowniczy 1,2 x 1,2 mm; konstrukcja prosta; w rolce; raster 5 mm; 4-bieg.; czarny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,8 g |
| ETIM class: | Printed circuit board connector |
| Operating temperature: | -60 - 100 °C |
| Material insulation body: | Thermoplastic |
| Modular spacing contacts: | 5 mm |
| Contact type: | Pin |
| Rated current In: | 16 A |
| Housing colour: | Black |
| Rated surge voltage: | 4 kV |
| Type of electric connection: | THR connection |
| Number of poles: | 4 |
| Type of PCB fastening: | Connecting contact |
| Rated voltage: | 320 V |
| Pollution degree: | 2 |
| Length pin: | 2.4 mm |
| Modular spacing connections: | 5 mm |
| Connector model: | Free connector |

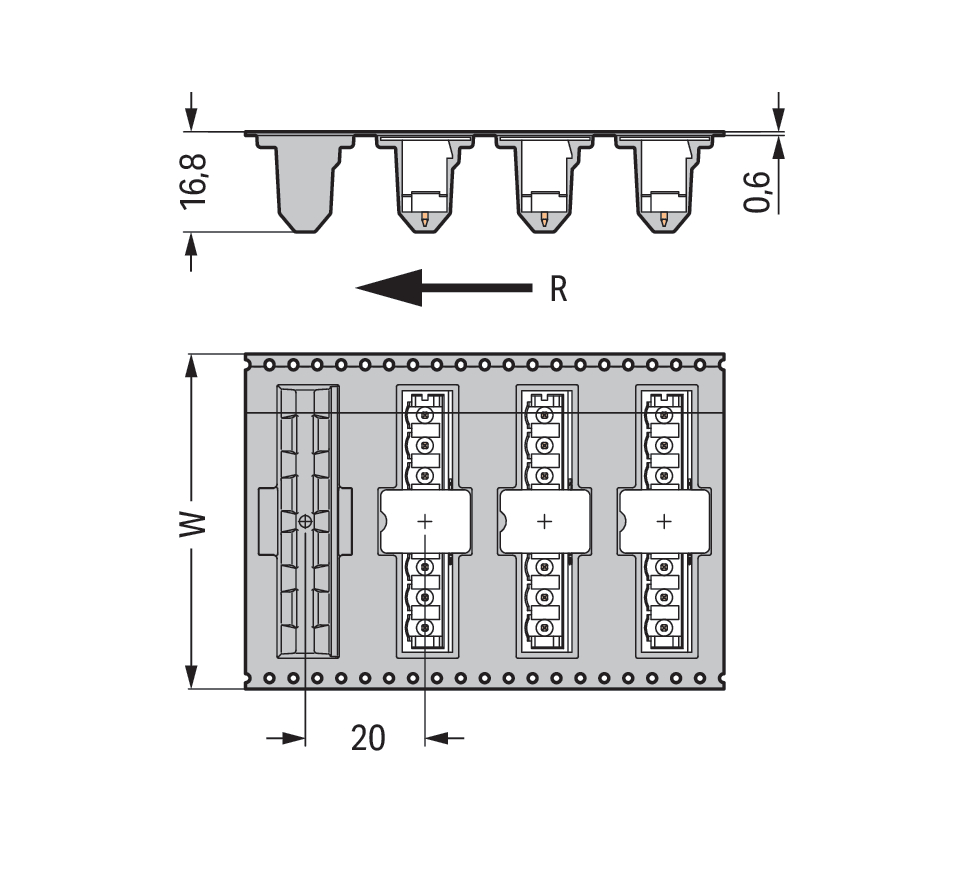

| Type of banding: | Blister girdle (for SMD) |
| Over voltage category: | III |
| Inflammability class of insulation material according to with UL94: | V0 |
| Number of plug-in contact rows: | 1 |
| Type of fastening: | Solder |
| Suitable for PCB thickness: | 1.5 mm |
| Material of contact surface: | Tin |
| Type of connection: | Flexible PCB-connector |
| Angle PCB/contact: | 90° (upwards vertical) |
