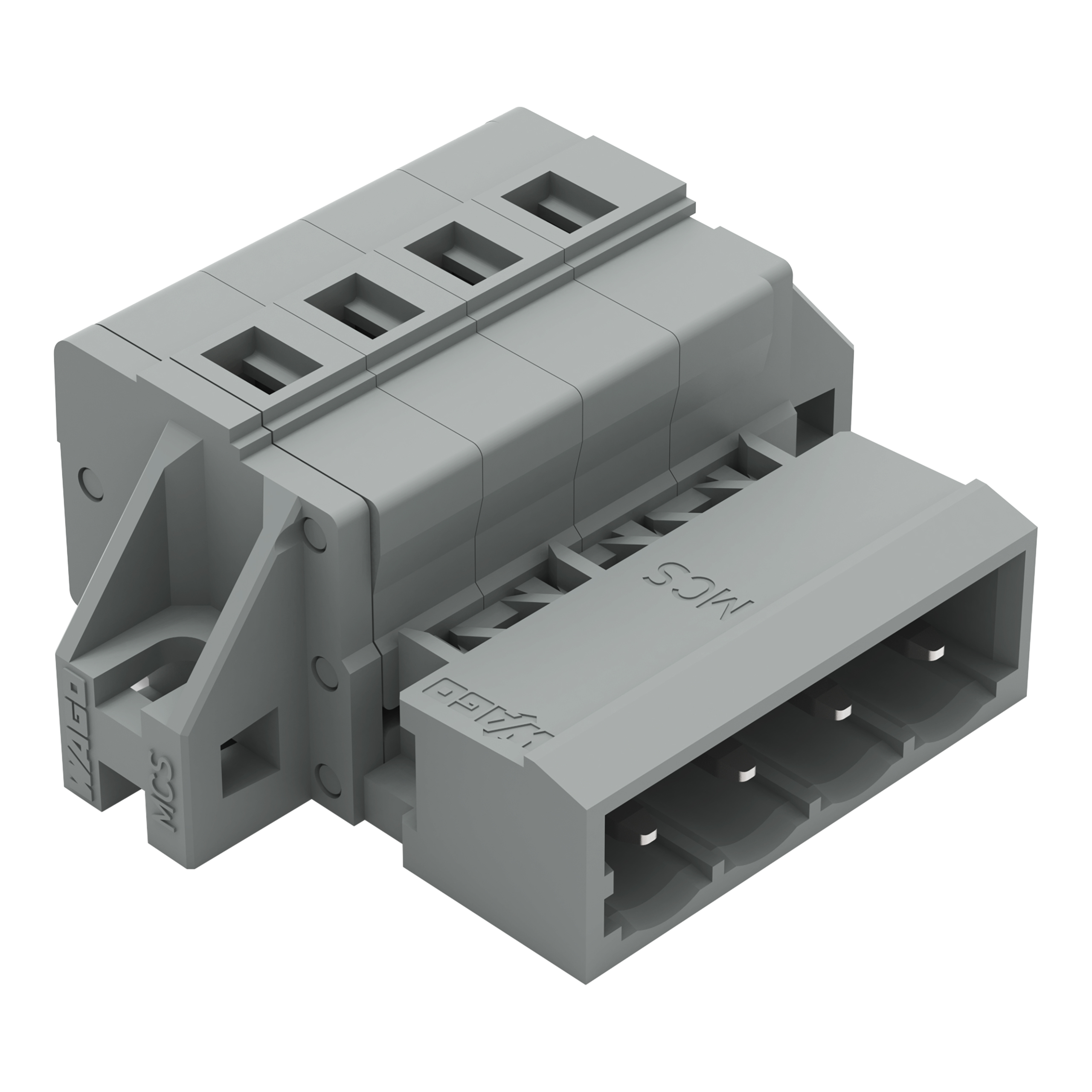

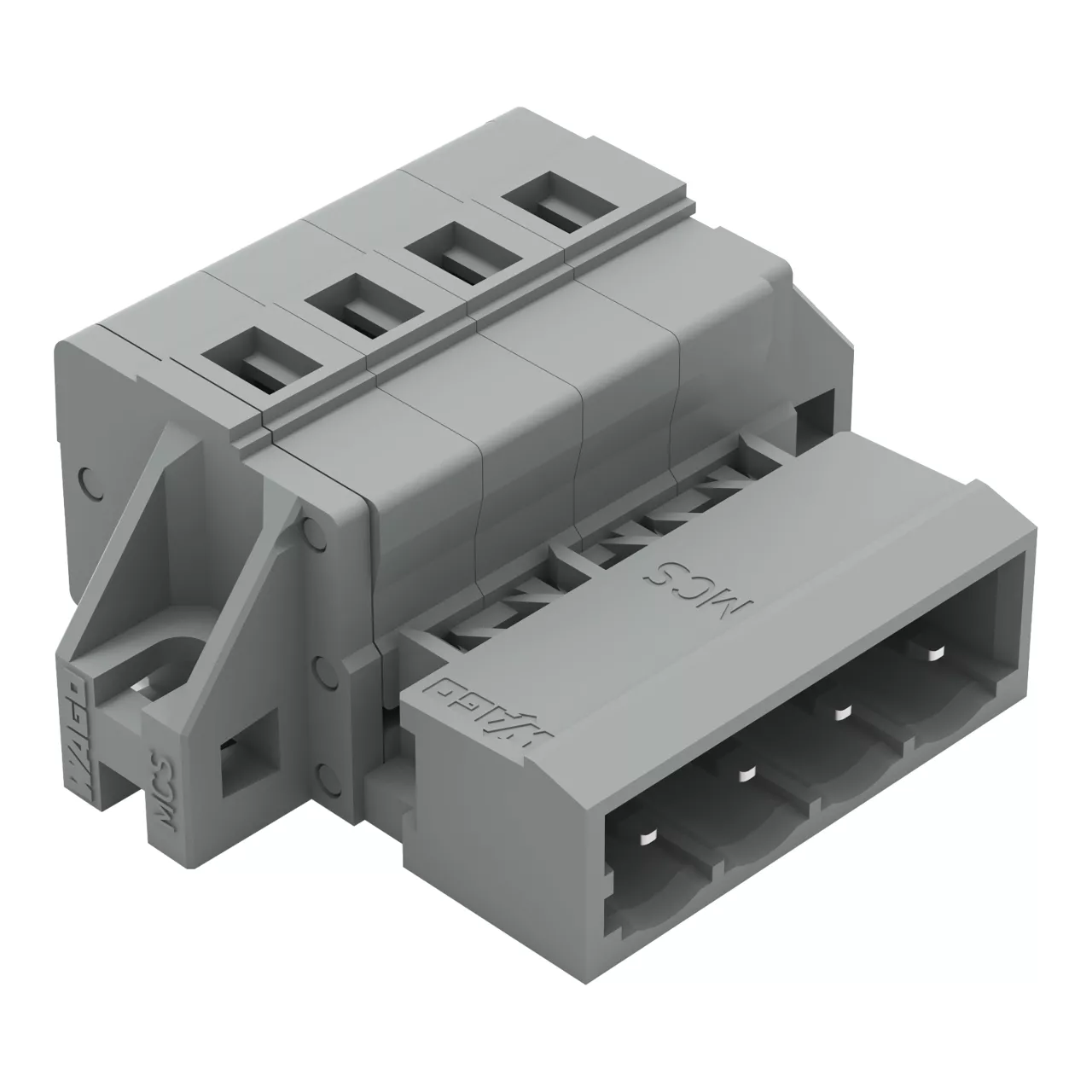

Wtyk 1-przewodowy CAGE CLAMP®, szary 231-604/019-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 231-604/019-000 |
GTIN(EAN) | 4044918257039 |
Price unit | piece |
Catalog price | 20,76 zł (16,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk 1-przewodowy; CAGE CLAMP®; 2,5 mm²; raster 5 mm; 4-bieg.; kołnierz mocujący; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 7,18 g |
ETIM class: | Cable connector |
Coating housing: | Uncoated |
Operating temperature: | -60 - 100 °C |
Housing material: | Plastic |
Type of connection: | Printed circuit board to cable |
Angle contact/conductor connection: | 180° (horizontal) |
Connectable cable type: | Tubular cable |
Contact type: | Pin |
Rated current In: | 12 A |
Type of electric connection: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Over voltage category: | III |
Rated surge voltage: | 4 kV |
Material contact: | Other copper alloys |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Housing colour: | Grey |
Modular spacing contacts: | 5 mm |
With protective conductor: | no |
Pollution degree: | 2 |
Degree of protection (IP), mounted: | IP10 |
Material of contact surface: | Tin |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 320 V |
Number of poles: | 4 |
Number of plug-in contact rows: | 1 |
Modular spacing connections: | 5 mm |
