Wielowtyk typu T Linect® 3-bieg., biały 770-6229
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-6229 |
GTIN(EAN) | 4050821621928 |
Price unit | piece |
Catalog price | 36,46 zł (29,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

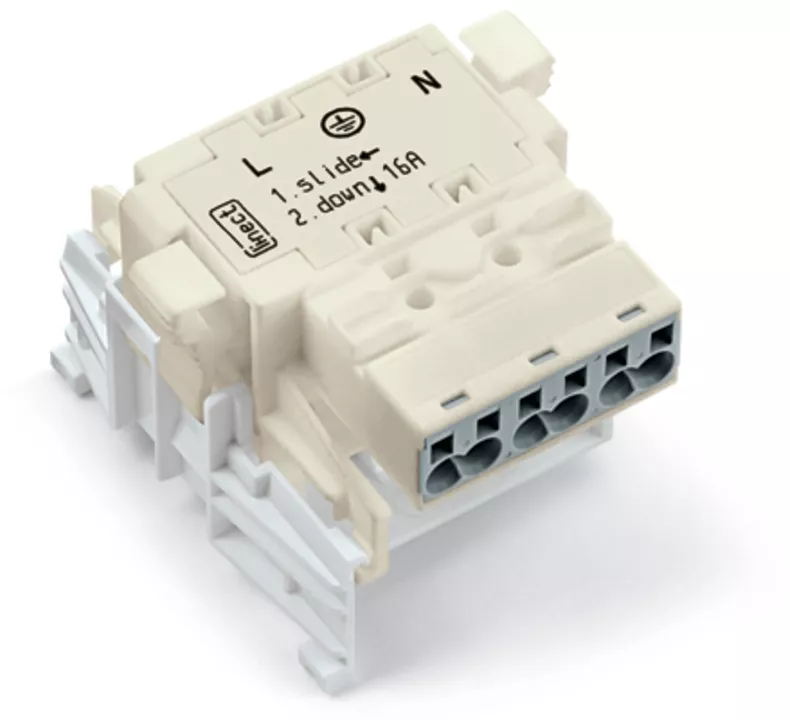

wielowtyk typu T Linect®; 3-bieg.; 1 wejście; z podłączeniem przewodu na wejściu; biały
Additional features:
Information | Value |
---|---|
Net weight: | 24,7 g |
ETIM class: | Device connection for plug-in building installation |
Fire load: | 0.16361 kWh |
Halogen free: | yes |
Number of connections per pole: | 2 |
Housing colour: | White |
Rated surge voltage: | 4 kV |
Number of poles: | 3 |
Type of locking: | Integrated in plug-in connector |
Rated current: | 25 A |

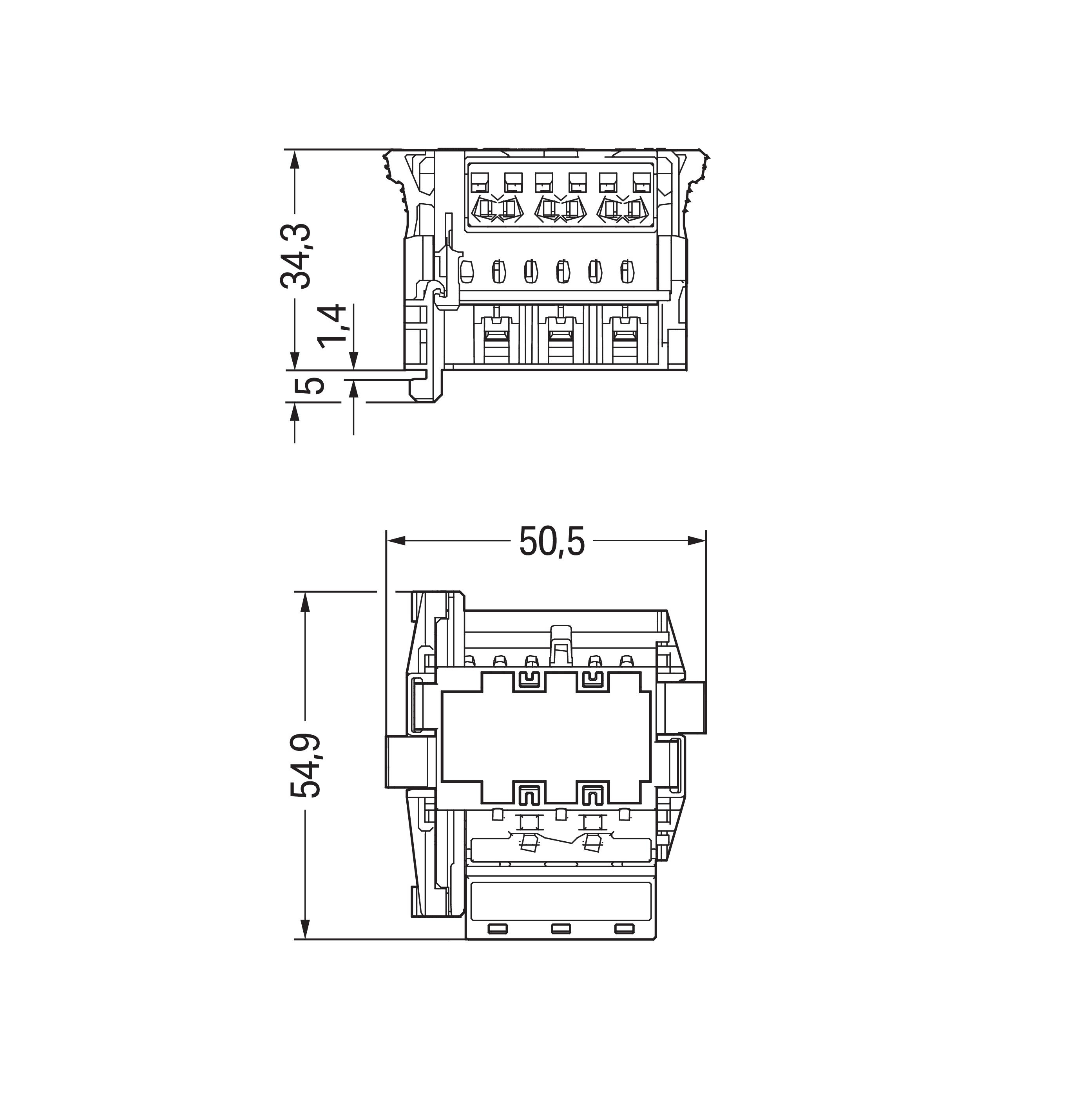

Length: | 54.9 mm |
Rated voltage: | 250 V |
Width: | 50.5 mm |
Angle of inclination: | 0 - 0 ° |
Height: | 40.8 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Connection size thread: | No thread connection |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Continuity resistance: | 1 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | White |
Pollution degree: | 3 |
Pole codification: | L, N, PE |
Colour of the separate adapter piece: | Without adapter piece |
Insert direction: | Straight |
Built-in version: | Built-in part/plug-in connection |
