Moduł przekaźnikowy 24 V DC 858-304
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 858-304 |
GTIN(EAN) | 4055143567770 |
Price unit | piece |
Catalog price | 57,40 zł (46,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

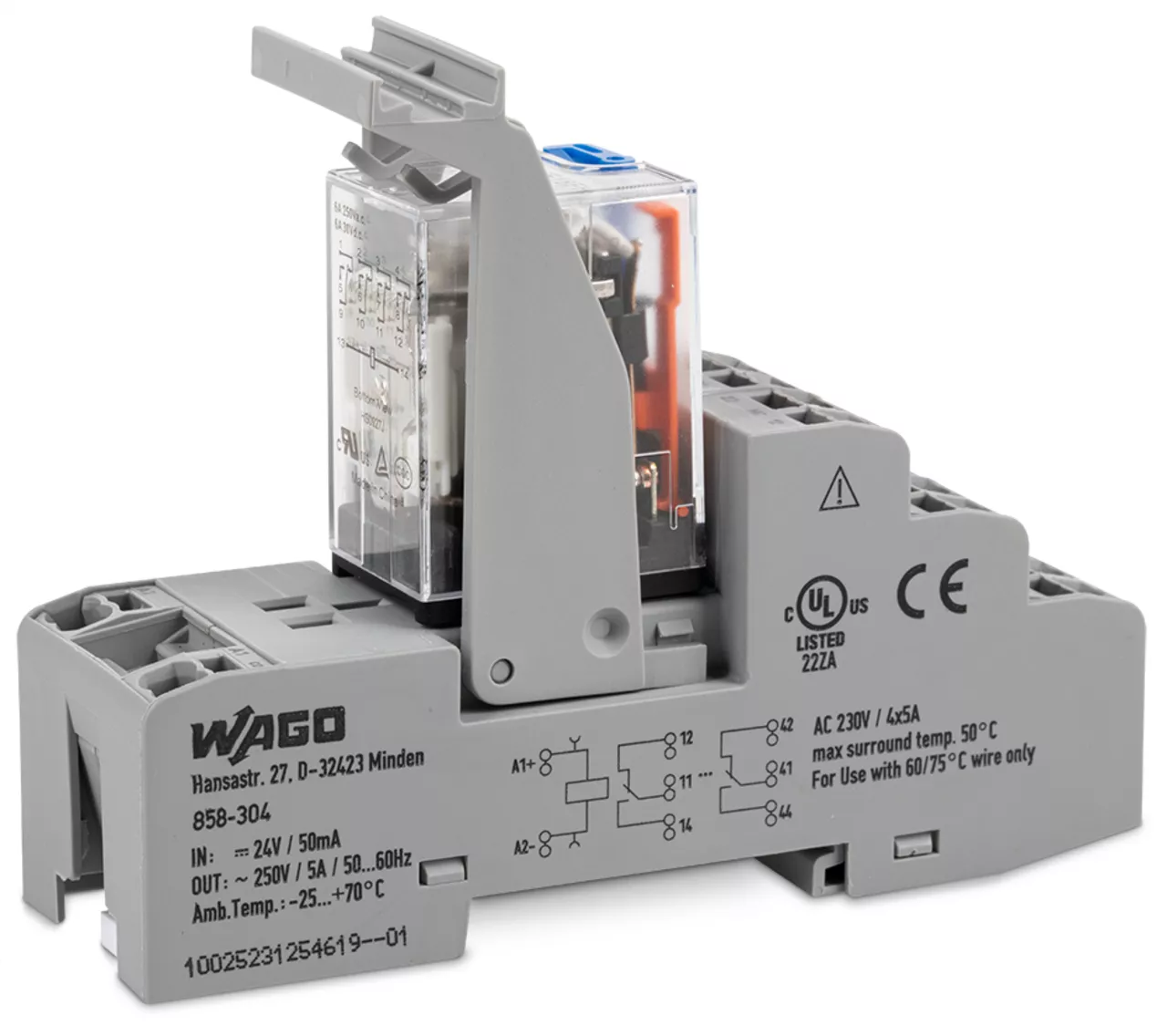

przekaźnik; znamionowe napięcie wejściowe 24 V DC; 4 x zestyk przełączny; maksymalny prąd długotrwały 5 A; z ręcznym pobudzeniem; sygnalizacja statusu czerwony; szerokość 31 mm; 1,50 mm²
Additional features:
Information | Value |
---|---|
Net weight: | 96,96 g |
ETIM class: | Switching relay |

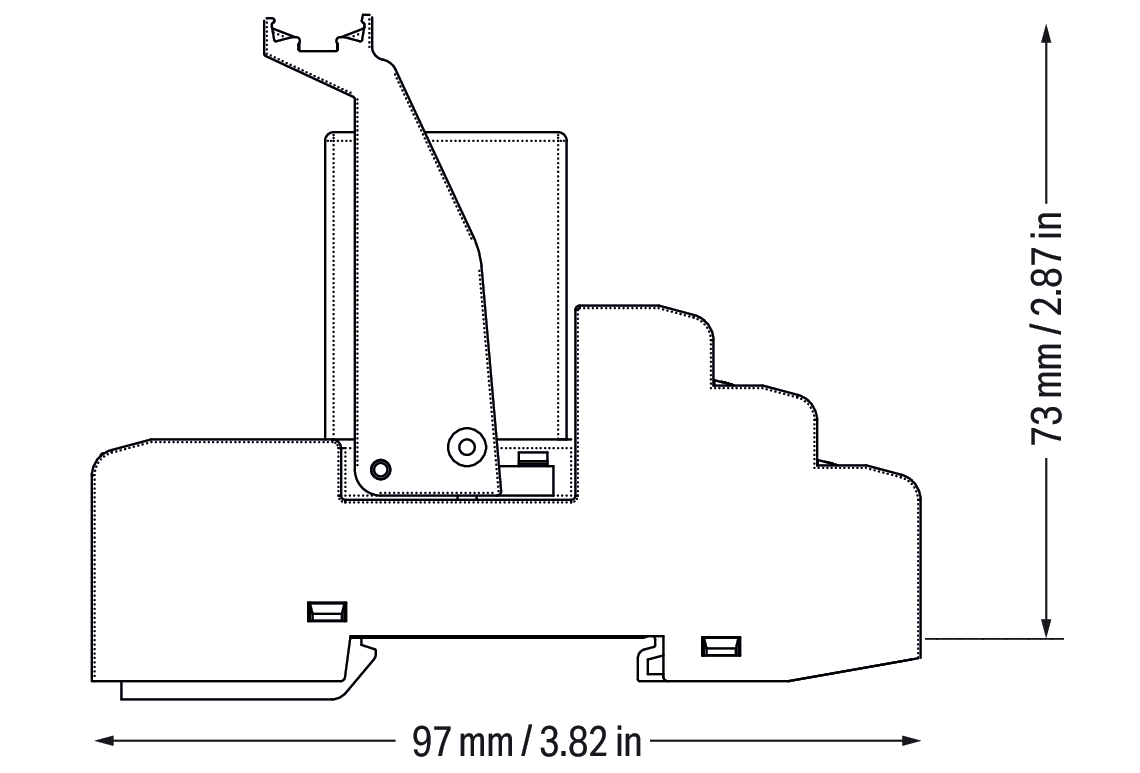

Height: | 97 mm |
Type of switch contact: | Single contact |
Complete with socket: | yes |
Voltage type for actuating: | DC |
Nominal current: | 5 A |
Type of electric connection: | Spring clamp connection |
Material of contact surface: | Other |
Rated control supply voltage DC: | 24 - 24 V |
Degree of protection (IP): | IP20 |
With detachable clamps: | no |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 4 |
Width: | 31 mm |
Drive, polarization: | Polarized |
With LED indication: | yes |
Drive, switching attitude: | Mono stable |
Depth: | 73 mm |
With forced-guided contacts: | no |
Number of contacts as normally closed contact: | 0 |
