Gniazdo THT Pin lutowniczy 0,6 x 1,0 mm konstrukcja prosta, szare 232-147
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 232-147 |
GTIN(EAN) | 4044918578615 |
Price unit | piece |
Catalog price | 51,33 zł (41,73 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

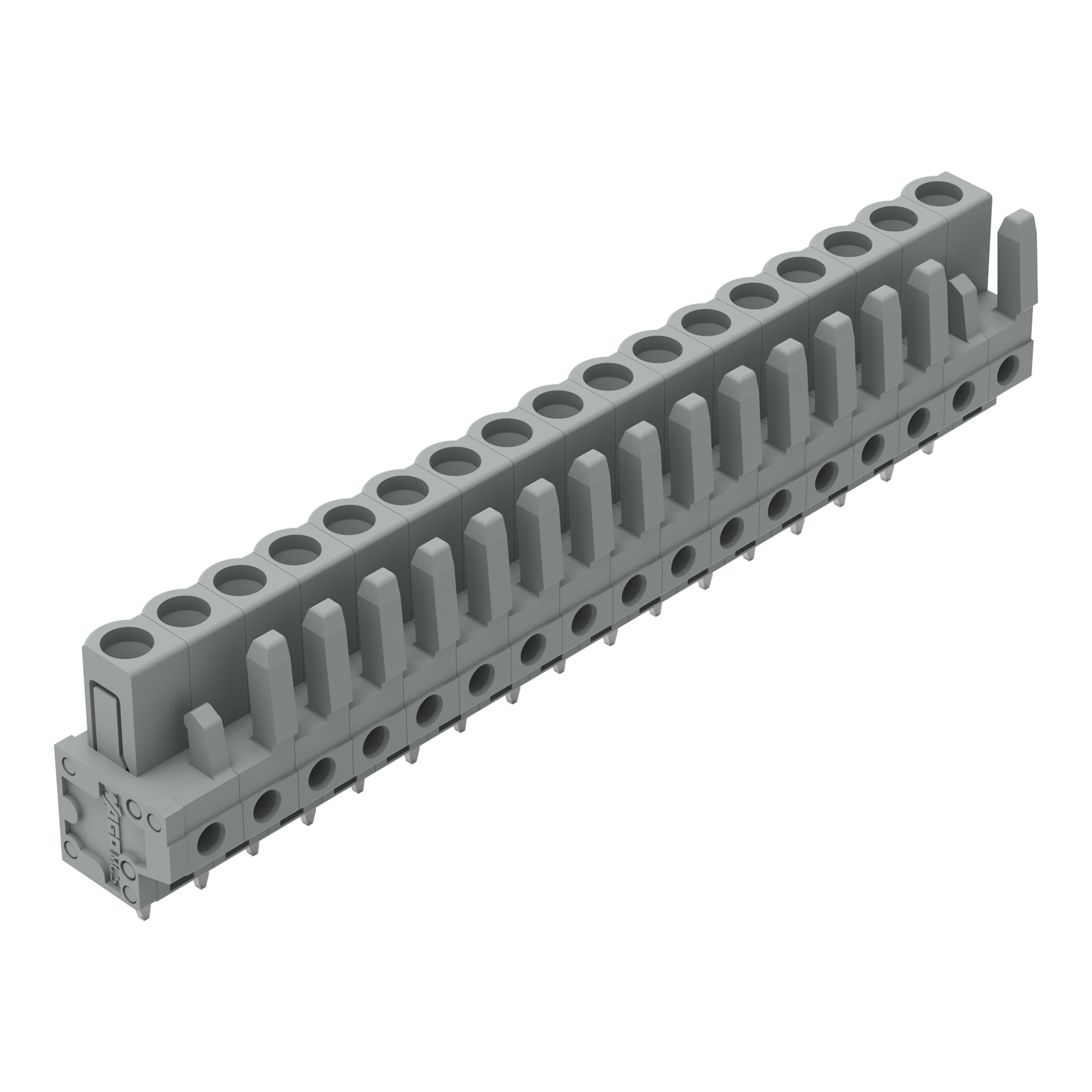

gniazdo THT; konstrukcja prosta; raster 5 mm; 17-bieg.; pin lutowniczy 0,6 x 1,0 mm; szary
Additional features:
Information | Value |
---|---|
Net weight: | 15,71 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 85 °C |
Material insulation body: | Thermoplastic |
Modular spacing contacts: | 5 mm |
Contact type: | Pin |
Rated current In: | 12 A |
Housing colour: | Grey |
Rated surge voltage: | 4 kV |
Type of electric connection: | Soldering connection |
Number of poles: | 17 |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Length pin: | 5 mm |
Modular spacing connections: | 5 mm |
Connector model: | Free connector |
Type of banding: | None |
Over voltage category: | III |
Inflammability class of insulation material according to with UL94: | V0 |
Number of plug-in contact rows: | 1 |
Type of fastening: | Solder |
Suitable for PCB thickness: | 1.5 mm |
Material of contact surface: | Tin |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 90° (upwards vertical) |
