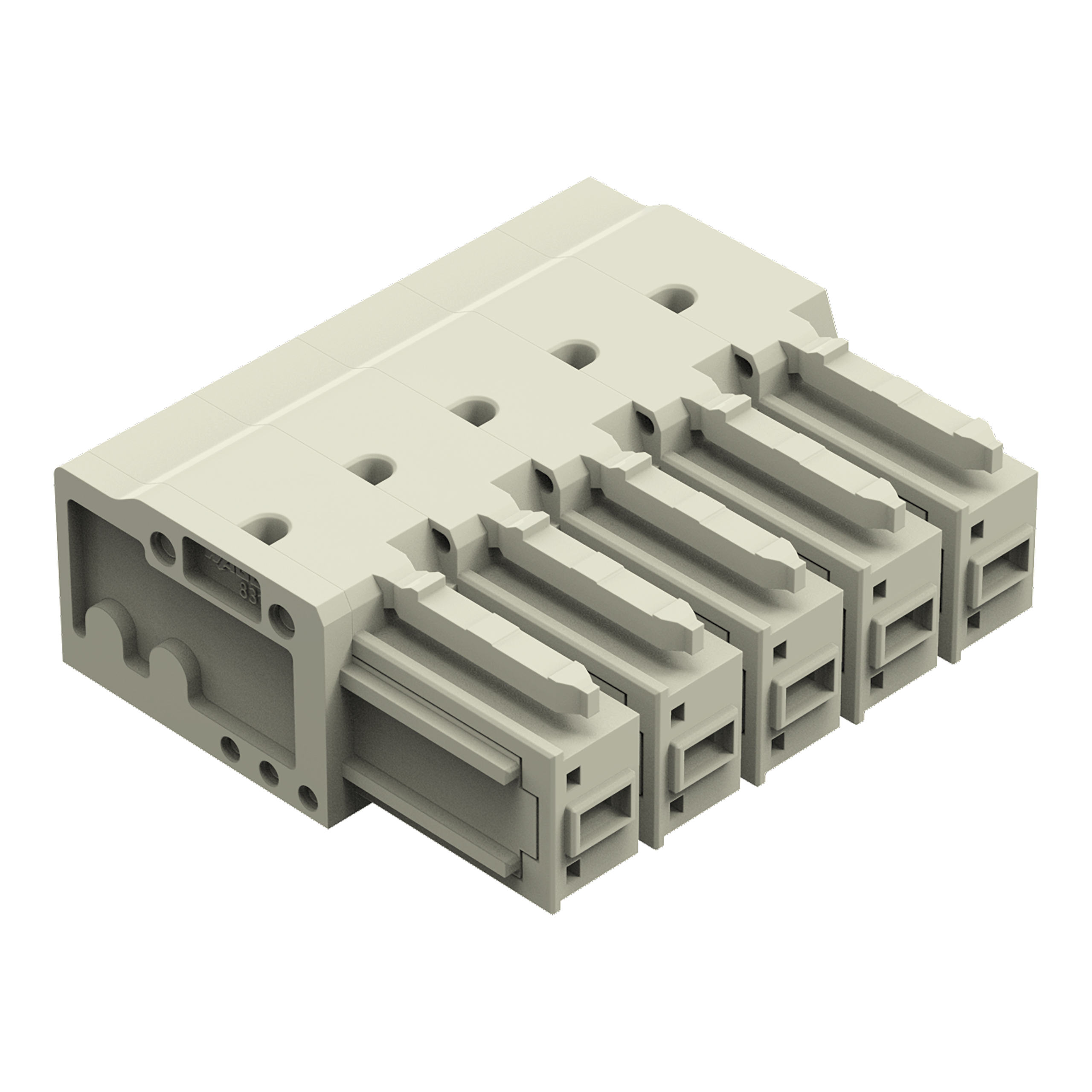

Gniazdo THT konstrukcja kątowa raster 7,62 mm, jasnoszary 831-3525
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 831-3525 |
| GTIN(EAN) | 4066966087031 |
| Price unit | piece |
| Catalog price | 45,10 zł (36,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo THT; konstrukcja kątowa; raster 7,62 mm; 5-bieg.; 100% ochrona przed błędnym połączeniem; pin lutowniczy 1,0 x 1,2 mm; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 26,42 g |
| ETIM class: | Printed circuit board connector |
| Operating temperature: | -60 - 105 °C |
| Material insulation body: | Thermoplastic |
| Modular spacing contacts: | 7.62 mm |
| Contact type: | Pin |
| Rated current In: | 41 A |
| Housing colour: | Grey |
| Rated surge voltage: | 6 kV |
| Type of electric connection: | Soldering connection |
| Number of poles: | 5 |
| Type of PCB fastening: | Connecting contact |
| Rated voltage: | 630 V |
| Pollution degree: | 2 |
| Length pin: | 4 mm |
| Modular spacing connections: | 7.62 mm |
| Connector model: | Free connector |
| Type of banding: | None |
| Over voltage category: | III |
| Inflammability class of insulation material according to with UL94: | V0 |
| Number of plug-in contact rows: | 1 |
| Type of fastening: | Solder |
| Suitable for PCB thickness: | 1.5 mm |
| Material of contact surface: | Tin |
| Type of connection: | Flexible PCB-connector |
| Angle PCB/contact: | 0°/180° (horizontal) |
