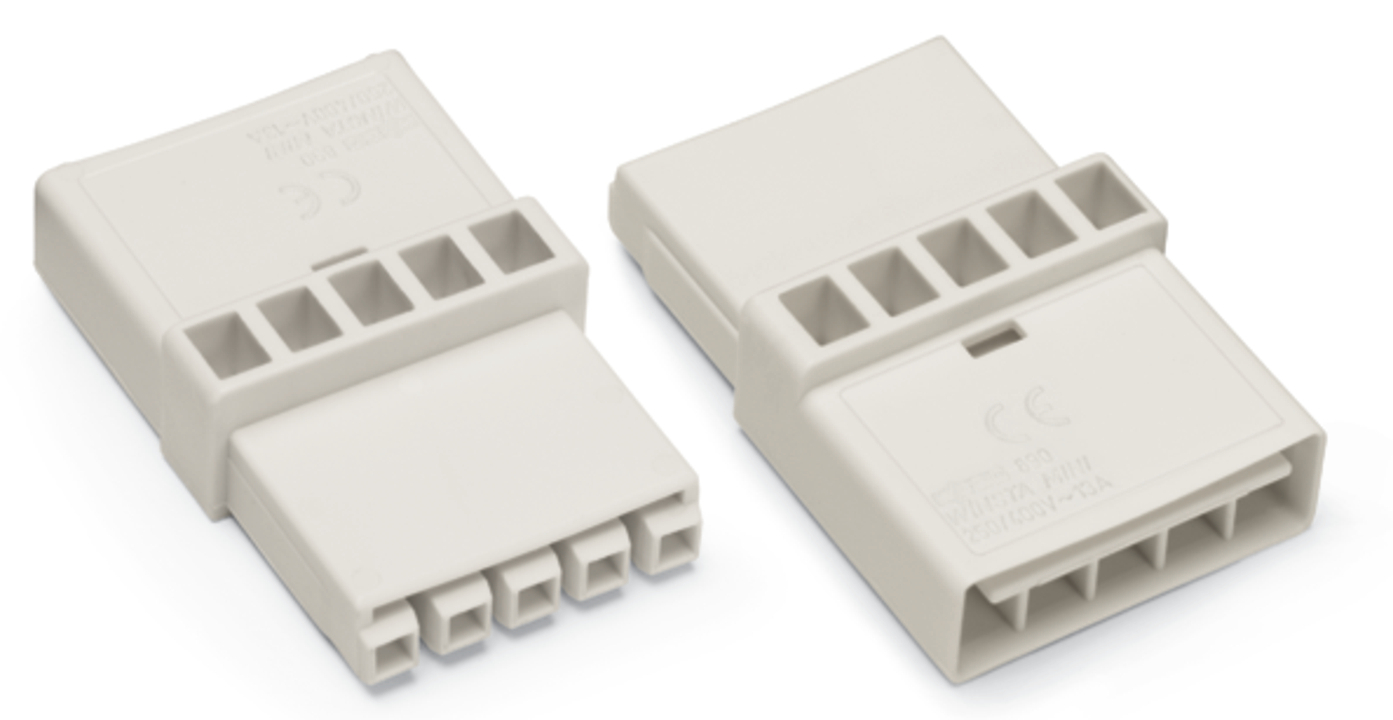

Element sprzęgający 5-bieg. kodowanie A, biały 890-655
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 890-655 |
| GTIN(EAN) | 4050821295464 |
| Price unit | piece |
| Catalog price | 16,97 zł (13,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
element sprzęgający; 5-bieg.; kodowanie A; do gniazd i wtyków; biały
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,75 g |
| ETIM class: | Compact distributor for plug-in building installation |
| Fire load: | 0.02611 kWh |
| Halogen free: | yes |
| Rated surge voltage: | 6 kV |
| Number of poles: | 5 |
| Type of integrated switching: | None |
| Type of locking: | None |
| Rated current: | 13 A |
| Rated voltage: | 400 V |

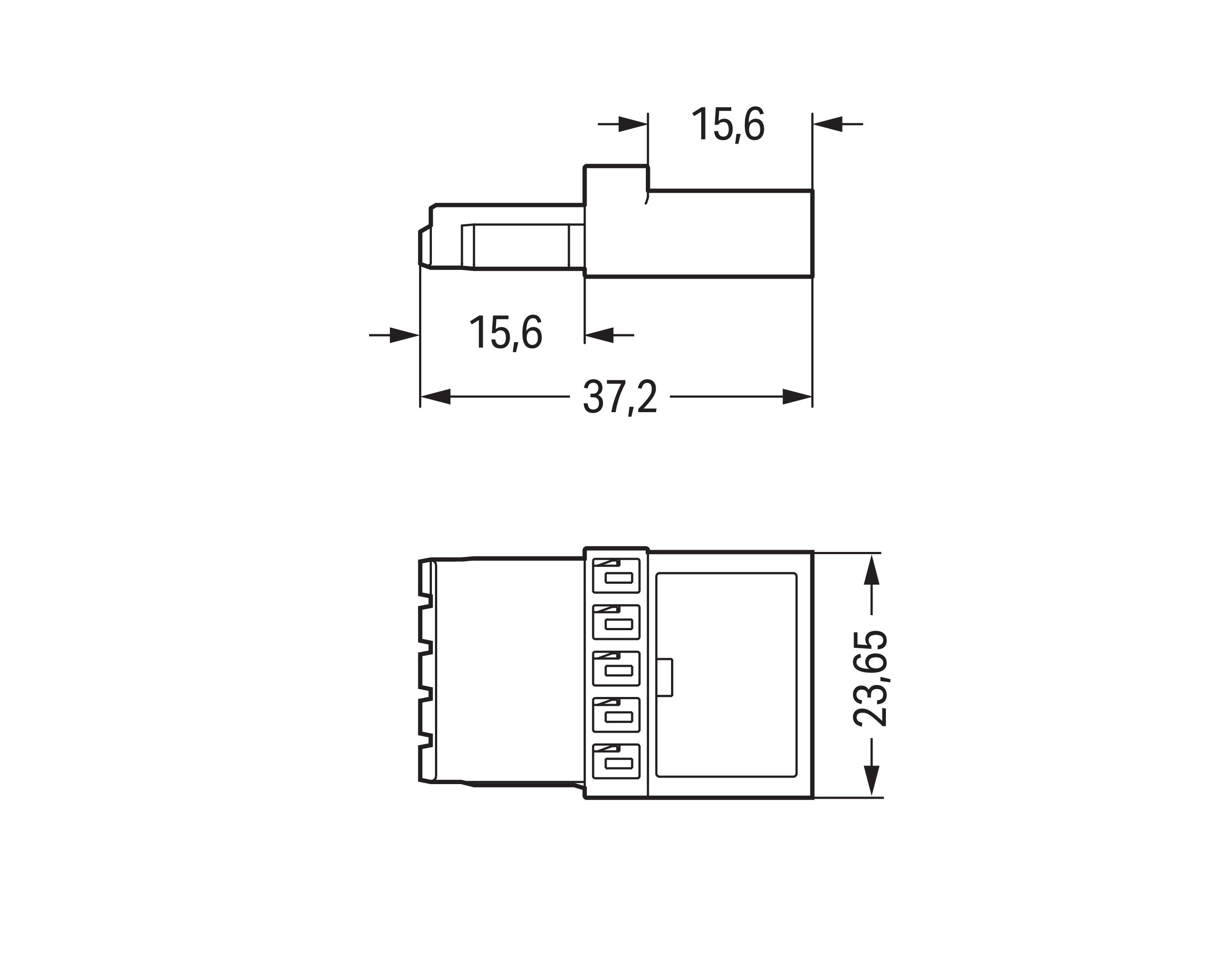

| Width: | 23.65 mm |
| Length: | 37.2 mm |
| Type of distributor: | Intermediate coupling |
| Mounting possibility: | No |
| Number of inputs: | 5 |
| Height: | 10.5 mm |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Rated current to luminaire: | 16 A |
| Housing material: | Polyamide (PA) |
| Mechanical coding: | yes |
| Max. continuous temperature resistance contact part: | 85 °C |
| Surface treatment contacts: | Tinned |
| Continuity resistance: | 1 mΩ |
| Number of outputs: | 5 |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | White |
| Pollution degree: | 3 |
| Colour of the separate adapter piece: | Without adapter piece |
