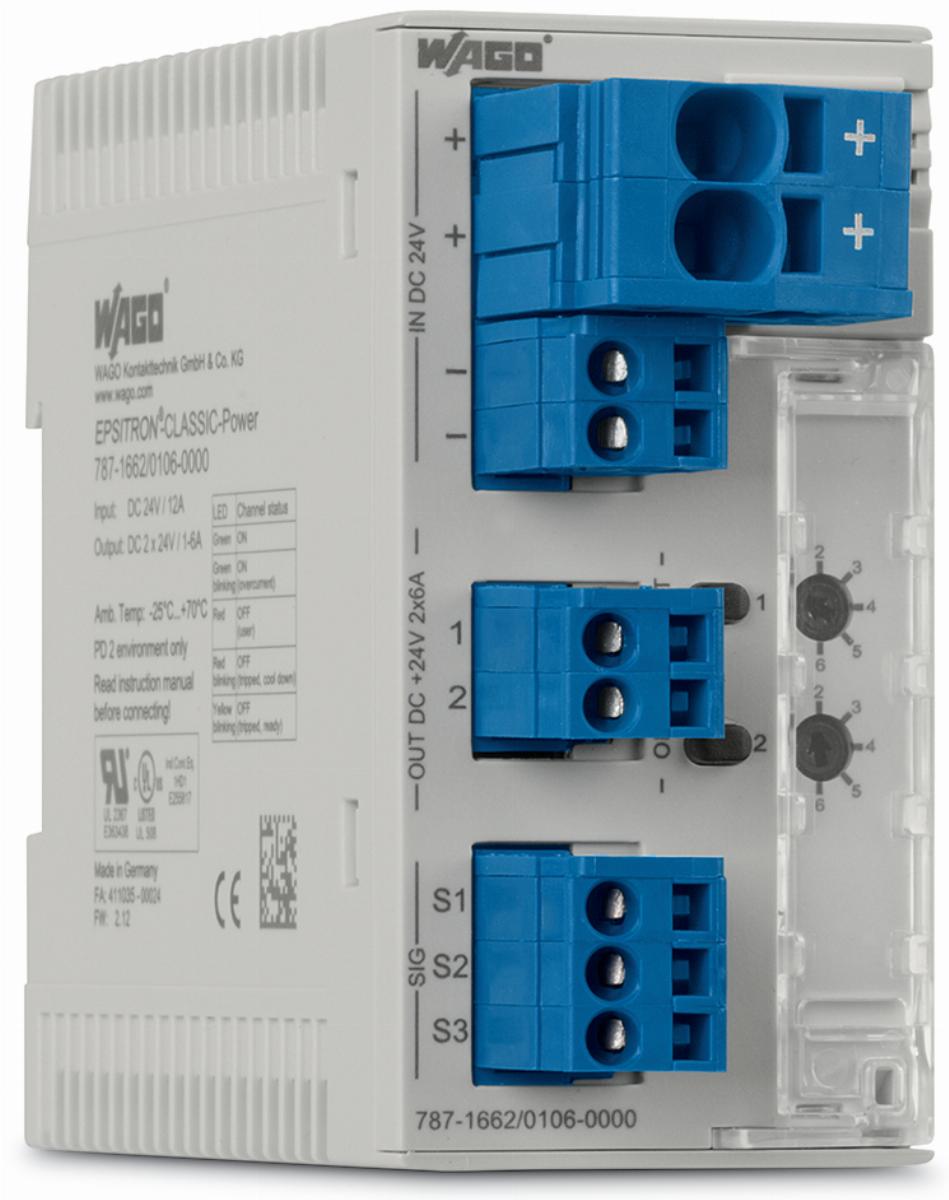

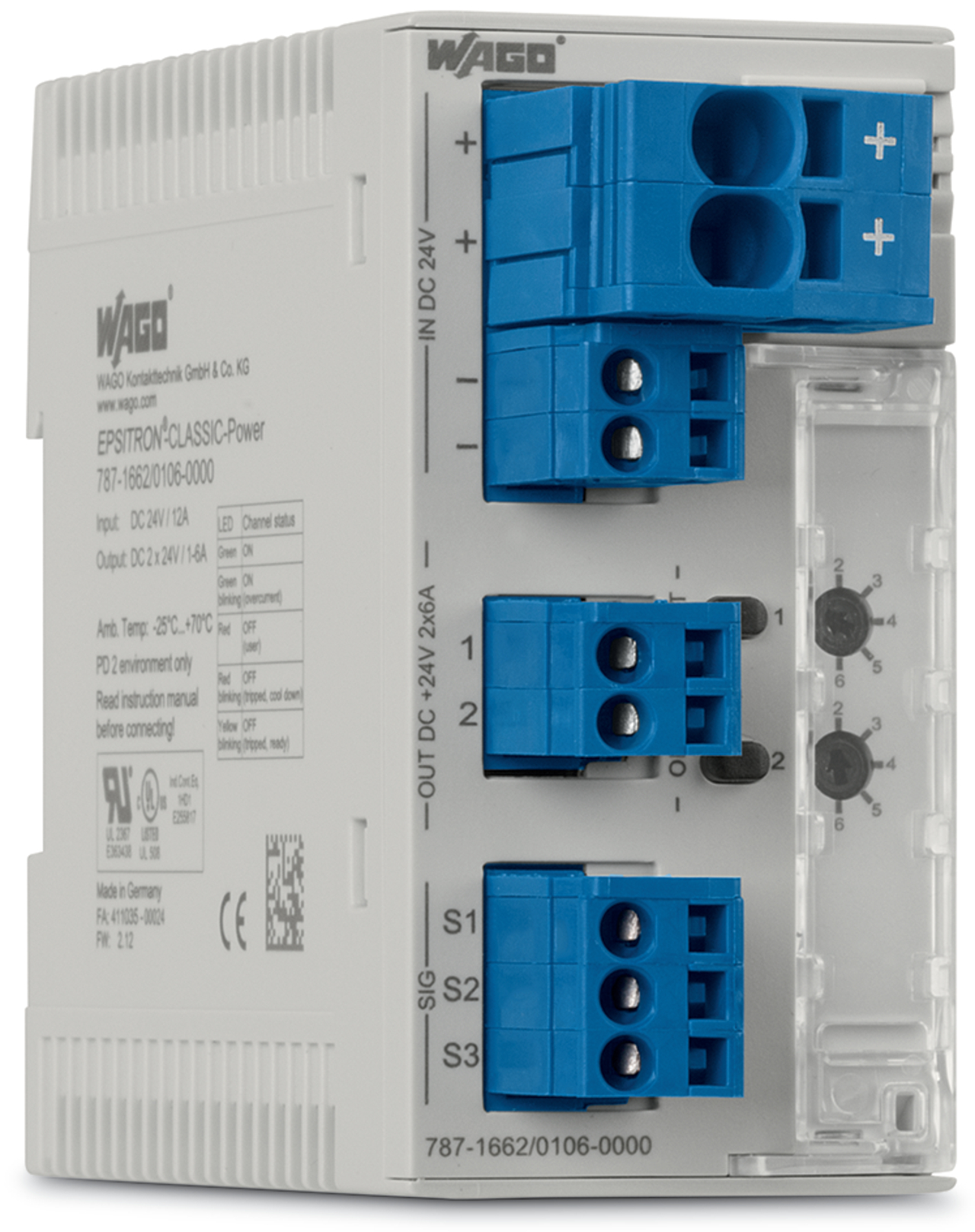

Elektroniczny wyłącznik nadprądowy 2-CH 24 V DC 787-1662/004-1000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 787-1662/004-1000 |
| GTIN(EAN) | 4055143896320 |
| Price unit | piece |
| Catalog price | 639,85 zł (520,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
elektroniczny wyłącznik nadprądowy; 2-kanałowy; napięcie wejściowe 24 V DC; 3,8 A; aktywne ograniczenie prądu; NEC Class 2; z możliwością komunikacji
Additional features:
| Information | Value |
|---|---|
| Net weight: | 200 g |
| ETIM class: | Current monitoring relay |
| Type of electric connection: | Spring clamp connection |
| Rated control supply voltage DC: | 20 - 28.8 V |
| Single-phase hysteresis possible: | no |
| Three-phase hysteresis possible: | no |
| Contains function DC-voltage overcurrent: | yes |

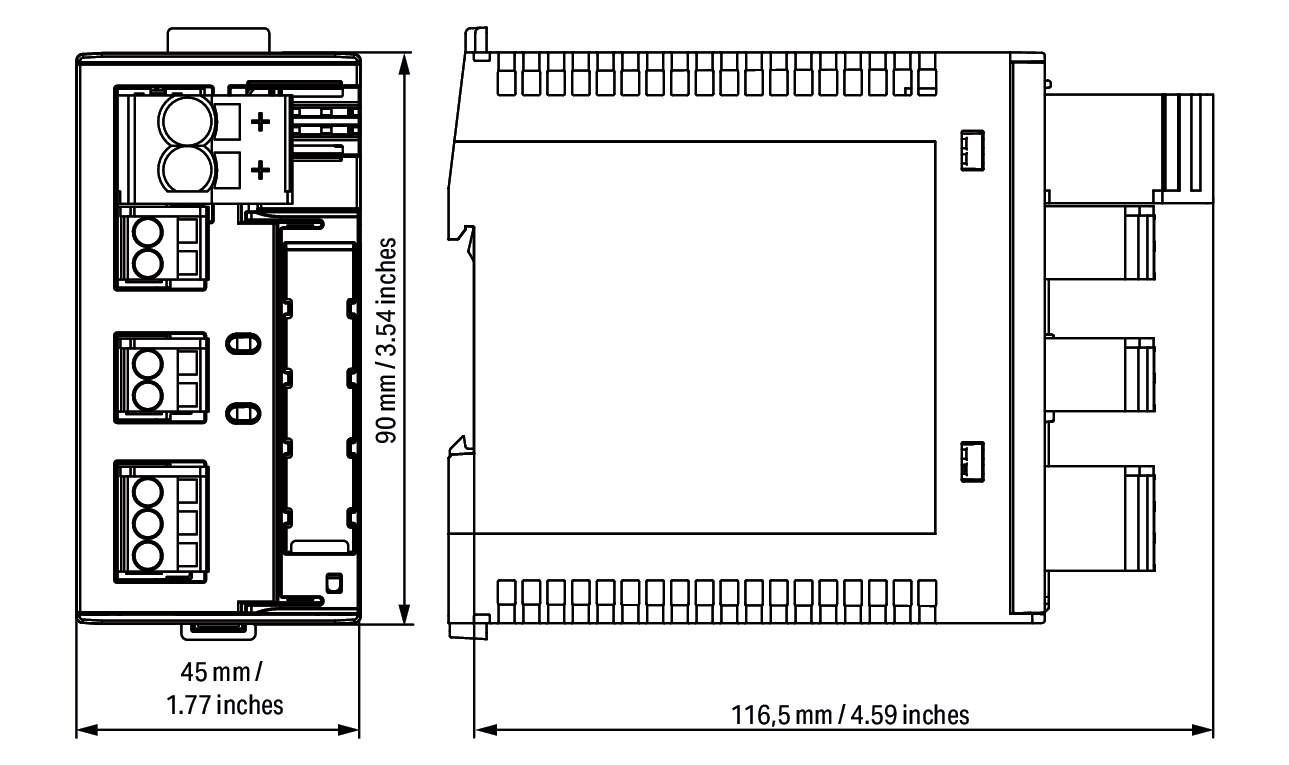

| Width: | 45 mm |
| Function DC-current hysteresis: | no |
| Depth: | 115.5 mm |
| External current transformer: | no |
| Height: | 90 mm |
| Voltage type for actuating: | DC |
| Single-phase under current possible: | no |
| Three-phase under current possible: | no |
| Single-phase overcurrent possible: | yes |
| Three-phase overcurrent possible: | no |
| Contains function DC-voltage under current: | no |
| With detachable clamps: | yes |
| Number of contacts as normally open contact: | 0 |
| Current measuring range: | 3.8 - 3.8 A |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
