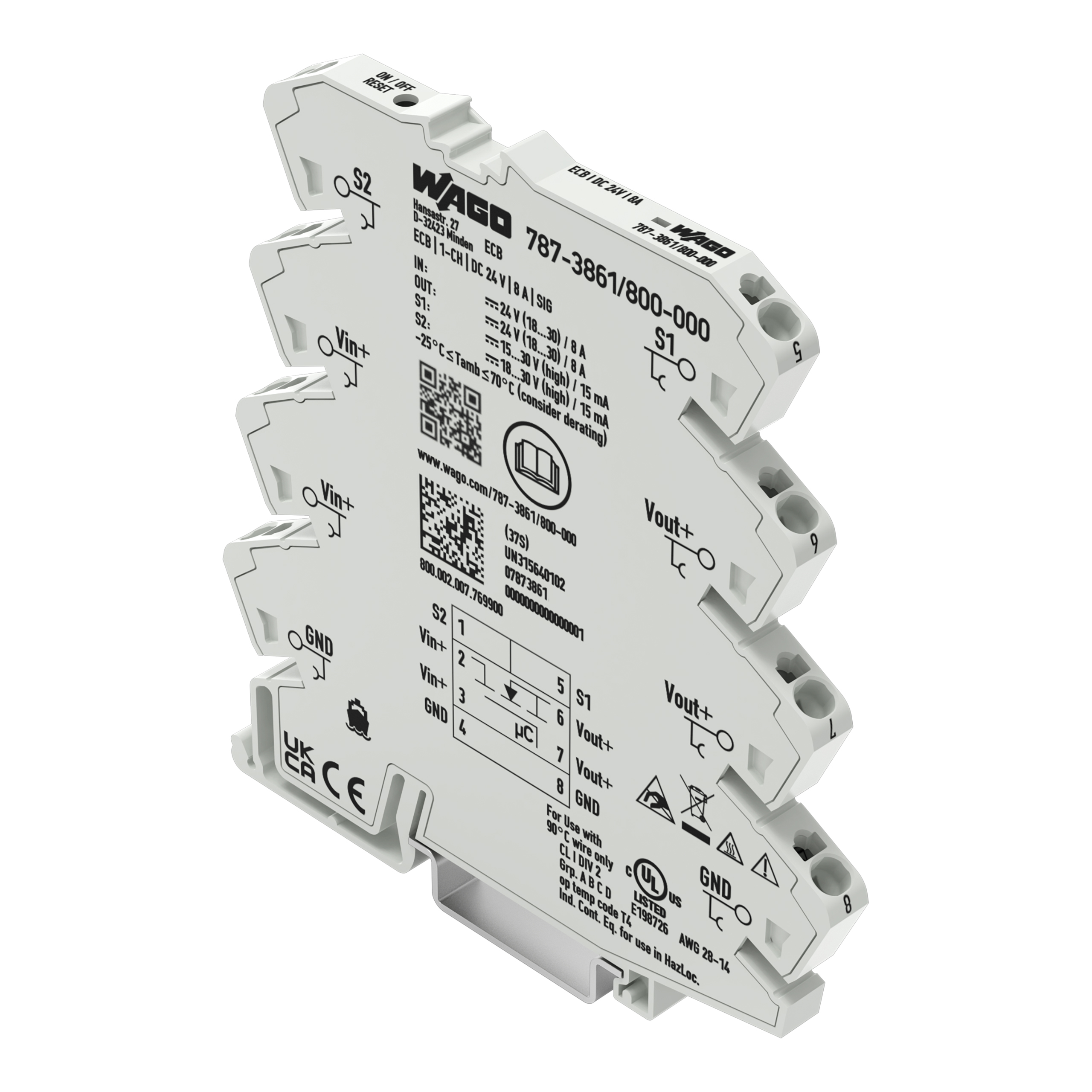

Elektroniczny wyłącznik nadprądowy 1-kanałowy 24 V DC 787-3861/800-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 787-3861/800-000 |
| GTIN(EAN) | 4066966363395 |
| Price unit | piece |
| Catalog price | 147,60 zł (120,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
elektroniczny wyłącznik nadprądowy; 1-kanałowy; napięcie wejściowe 24 V DC; 8 A; zestyk sygnalizacyjny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 55,62 g |
| ETIM class: | Current monitoring relay |
| Type of electric connection: | Spring clamp connection |
| Single-phase hysteresis possible: | no |
| Three-phase hysteresis possible: | no |
| Min. adjustable delay-on energization time: | 0.1 s |
| Contains function DC-voltage overcurrent: | no |
| Rated control supply voltage AC 50 Hz: | 18 - 30 V |
| Width: | 6 mm |
| Function DC-current hysteresis: | no |
| Depth: | 94 mm |
| External current transformer: | no |
| Height: | 97.8 mm |
| Voltage type for actuating: | DC |
| Single-phase under current possible: | no |
| Three-phase under current possible: | no |
| Max. permitted delay-on energization time: | 90 s |
| Single-phase overcurrent possible: | yes |
| Three-phase overcurrent possible: | no |
| Contains function DC-voltage under current: | no |
| With detachable clamps: | no |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
