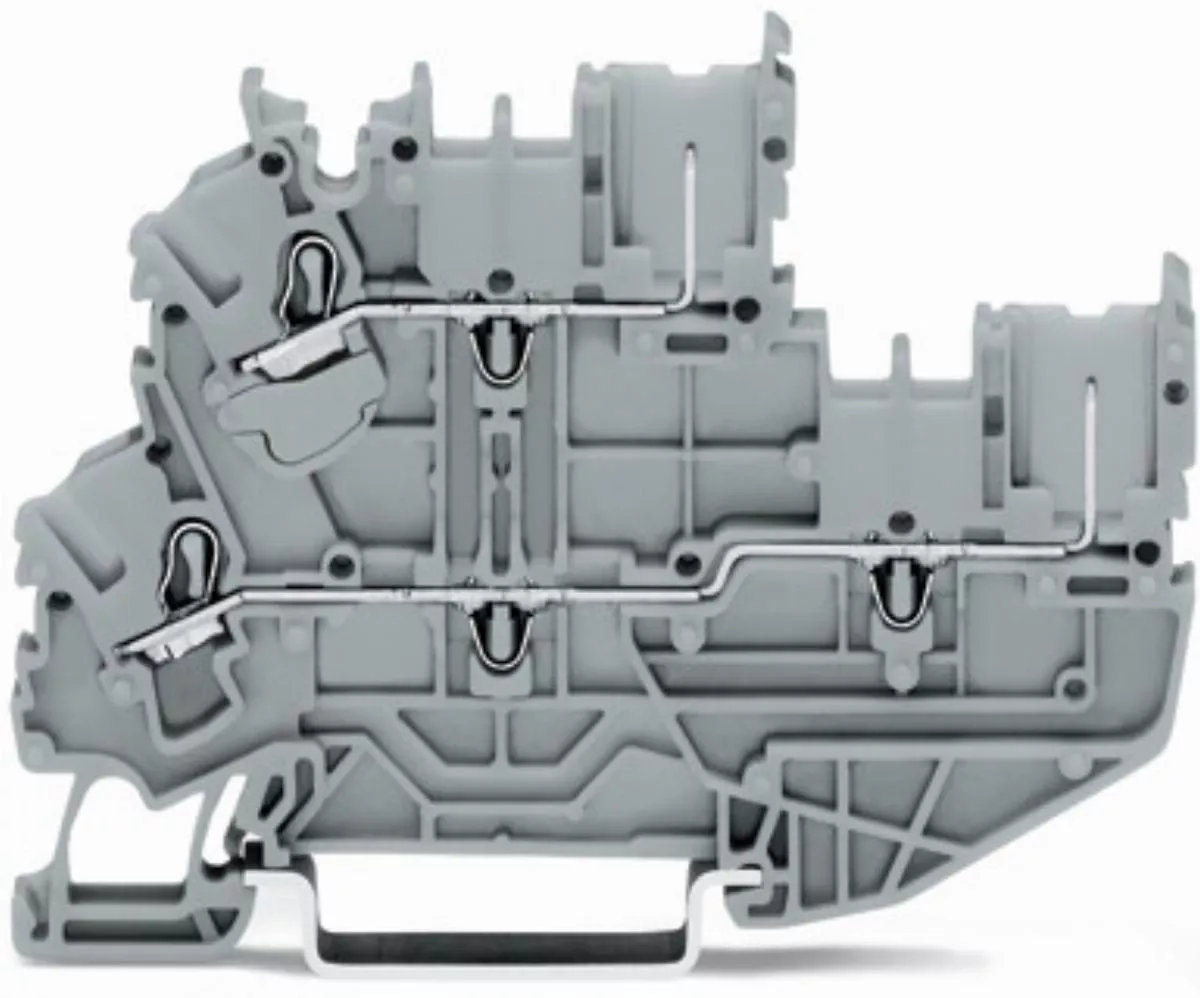

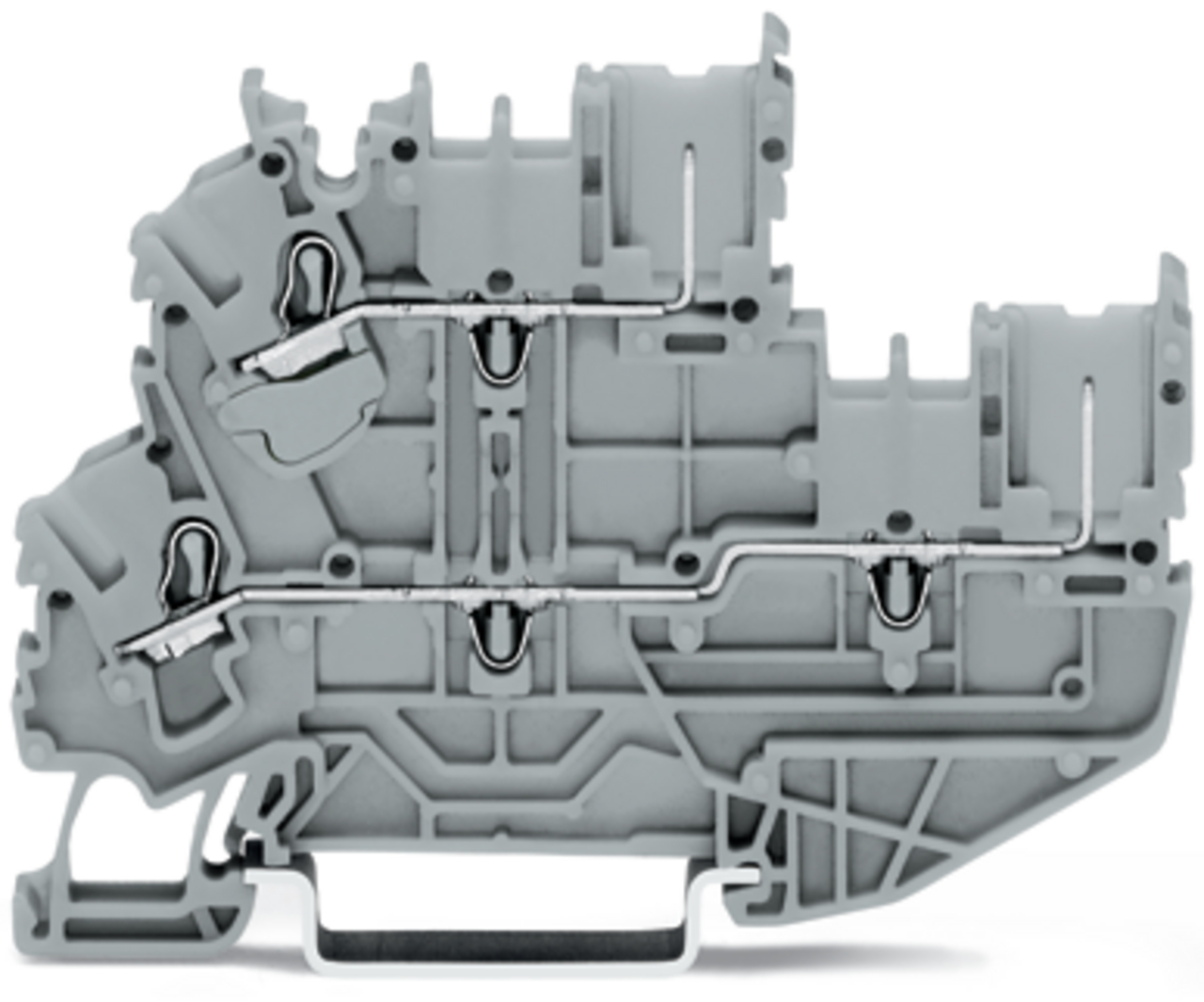

Dwupiętrowa złączka 1-przewodowa/1-pinow złączka przelotowa/przelotowa, szara 2022-2202
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2022-2202 |
GTIN(EAN) | 4045454916503 |
Price unit | piece |
Catalog price | 12,20 zł (9,92 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
złączka bazowa 2-piętrowa 1-przewodowa/1-pinowa; złączka przelotowa/przelotowa; 2,5 mm²; N/L; bez podstawki oznacznika; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 11,75 g |
ETIM class: | Feed-through terminal block |
Operating temperature: | 105 - 105 °C |
Explosion-tested version 'Ex e': | no |
Rated current In: | 24 A |
Height: | 80.1 mm |
Number of levels: | 2 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Plug-in connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5.2 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 690 V |
Depth: | 51.3 mm |
