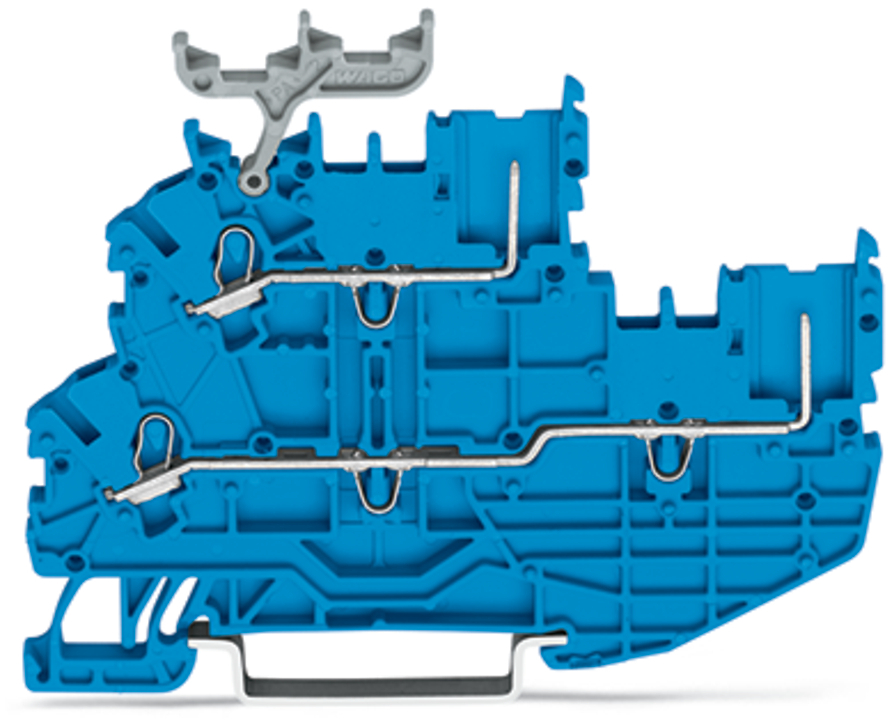

Dwupiętrowa złączka 1-przewodowa/1-pinow złączka przelotowa/przelotowa, niebieska 2020-2234
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2020-2234 |
GTIN(EAN) | 4050821049593 |
Price unit | piece |
Catalog price | 13,06 zł (10,62 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
złączka bazowa 2-piętrowa 1-przewodowa/1-pinowa; złączka przelotowa/przelotowa; N/N; z podstawką oznacznika; do zastosowań Ex i; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 1,00 mm²; niebieski
Additional features:
Information | Value |
---|---|
Net weight: | 9,66 g |
ETIM class: | Feed-through terminal block |
Operating temperature: | 105 - 105 °C |
Explosion-tested version 'Ex e': | yes |
Rated current In: | 13.5 A |
Height: | 80.1 mm |
Number of levels: | 2 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Plug-in connection |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Blue |
Width: | 3.5 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 500 V |
Depth: | 61.4 mm |
