Gniazdo Snap-In bez zaczepu ryglującego, zielone
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 893-2002 |
GTIN(EAN) | 4045454420130 |
Price unit | piece |
Catalog price | 43,35 zł (35,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

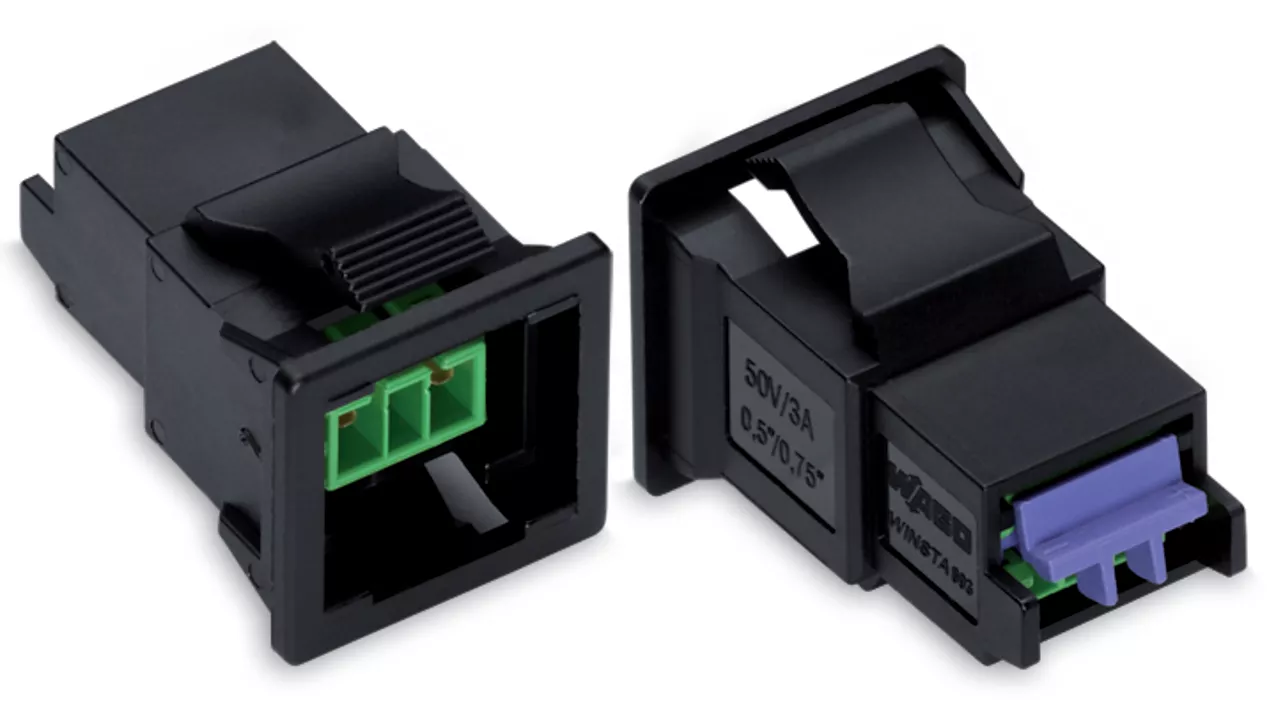

gniazdo Snap-In; bez zaczepu ryglującego; 2-bieg.; kodowanie E; zielony
Additional features:
Information | Value |
---|---|
Net weight: | 3,6 g |
ETIM class: | Device connection for plug-in building installation |
Fire load: | 0 kWh |
Halogen free: | yes |
Number of connections per pole: | 1 |
Housing colour: | Green |
Rated surge voltage: | 0.8 kV |
Model: | Bus |
Number of poles: | 2 |
Type of locking: | None |
Rated current: | 3 A |

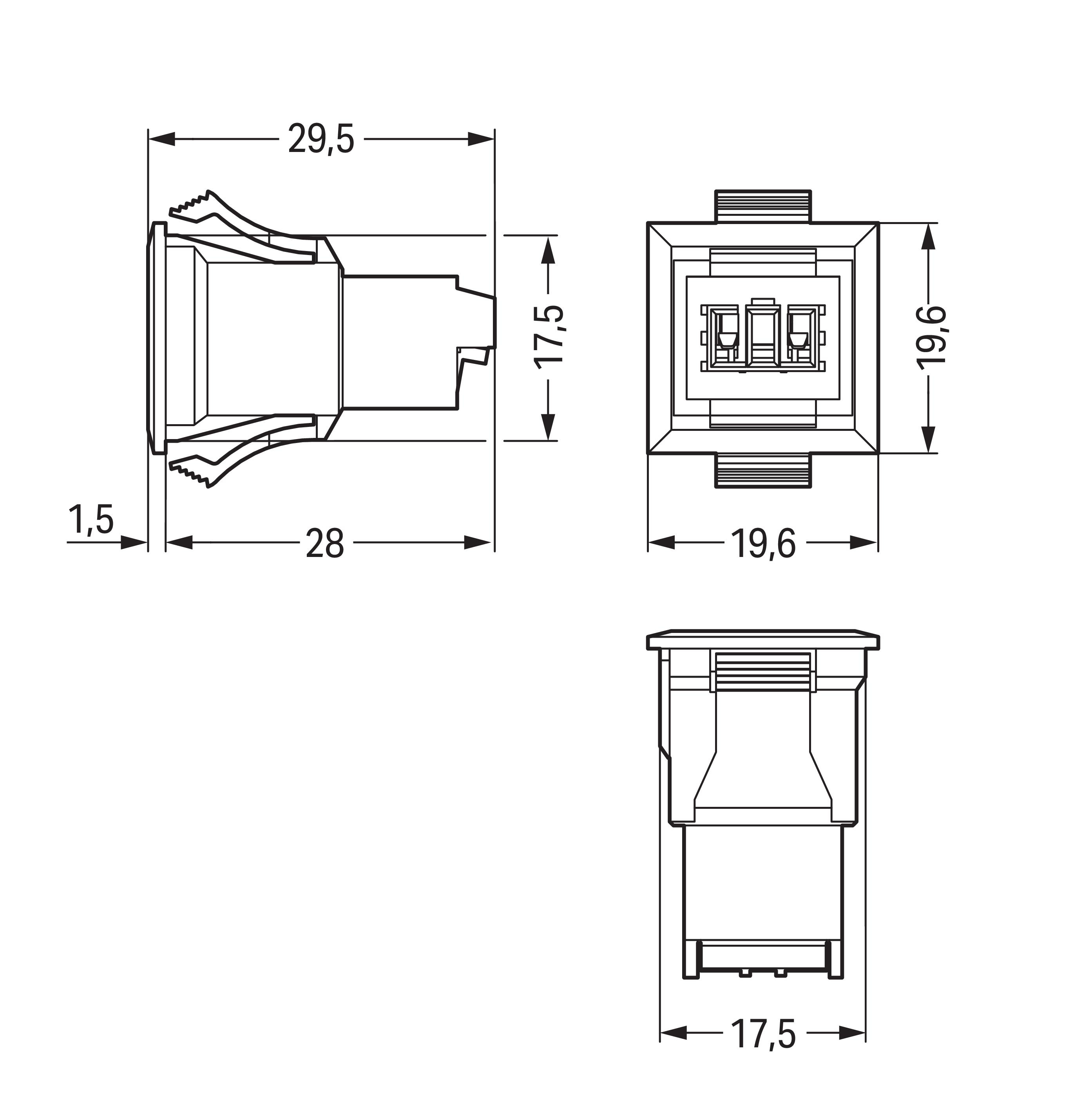

Length: | 29.5 mm |
Rated voltage: | 50 V |
Width: | 19.6 mm |
Angle of inclination: | 0 - 0 ° |
Height: | 19.6 mm |
Connection type: | Spring clamp connection |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Connection size thread: | No thread connection |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Surface treatment contacts: | Tinned |
Max. continuous temperature resistance contact part: | 85 °C |
Continuity resistance: | 3 mΩ |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Green |
Pollution degree: | 3 |
Pole codification: | 1+, 2- |
Colour of the separate adapter piece: | Without adapter piece |
Insert direction: | Straight |
Built-in version: | Snap-in/screw-in device |
