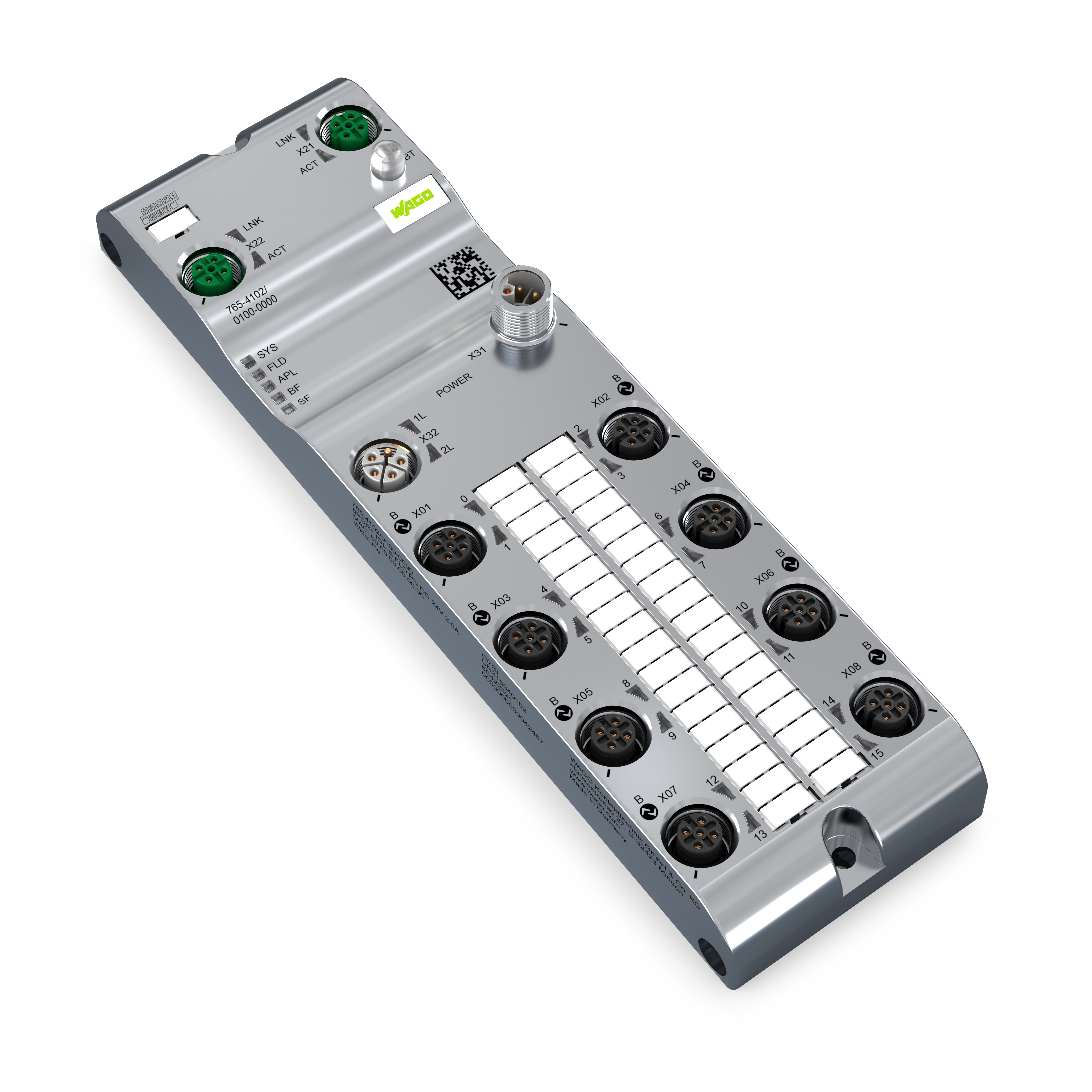

I/O System Field 8-Port-IO Link Master Class B; Profinet; 24 V DC / 2,0 A; 8 x złącze M12; WideLine
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 765-4102/100-000 |
GTIN(EAN) | 4055143949798 |
Price unit | piece |
Catalog price | 3 173,40 zł (2 580,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
8-Port-IO Link Master Class B; Profinet; 24 V DC/2,0 A; 8 x złącze M12; WideLine
Additional features:
Information | Value |
---|---|
Net weight: | 610 g |
ETIM class: | Fieldbus, decentr. periphery - function-/technology module |
Supporting protocol for AS-Interface Safety at Work: | no |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Supporting protocol for INTERBUS-Safety: | no |
Radio standard GPRS: | no |
Fieldbus connection over separate bus coupler possible: | no |
Performance level according to EN ISO 13849-1: | None |
Width: | 60 mm |
Depth: | 210 mm |
Radio standard GSM: | no |
Radio standard UMTS: | no |
Height: | 30 mm |
Suitable for counting: | no |
Suitable for weighing: | no |
Function block automatic reset: | no |
Supporting protocol for SafetyBUS p: | no |
Function block contactless working protection installation: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for DeviceNet Safety: | no |
Number of functions: | 2 |
Voltage type (supply voltage): | DC |
Supporting protocol for PROFINET IO: | yes |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for LON: | no |
Suitable for detection absolute value: | no |
Suitable for welding control: | no |
Supporting protocol for CAN: | no |
Function block access control: | no |
Appendant operation agent (Ex ib): | no |
Supporting protocol for INTERBUS: | no |
Function block affirm pushbutton: | no |
Front built-in possible: | no |
Suitable for pressure control: | no |
Function block emergency stop: | no |
Suitable for NC: | no |
Supporting protocol for KNX: | no |
Suitable for temperature control: | no |
Radio standard Bluetooth: | yes |
Function block restart blockage: | no |
Radio standard WLAN 802.11: | no |
Suitable for SSI: | no |
Suitable for electronic positioning: | no |
Supporting protocol for Modbus: | no |
Suitable for CNC: | no |
Supporting protocol for Data-Highway: | no |
Function block 2-hand switching: | no |
Rail mounting possible: | yes |
Supporting protocol for DeviceNet: | no |
Suitable for incremental data detection: | no |
Rack-assembly possible: | no |
Suitable for safety functions: | no |
IO link master: | yes |
Supporting protocol for TCP/IP: | no |
Function block operating mode selection: | no |
Supporting protocol for ASI: | no |
Supporting protocol for PROFIBUS: | no |
Appendant operation agent (Ex ia): | no |
Supply voltage DC: | 24 - 24 V |
Frequency measurement: | no |
With optical interface: | no |
System accessory: | yes |
Number of HW-interfaces wireless: | 0 |
Degree of protection (IP): | IP67 |
Number of HW-interfaces industrial Ethernet: | 0 |
Suitable for path controller: | no |
Number of HW-interfaces RS-232: | 0 |
Contactor control function block: | no |
Suitable for cam controller: | no |
Suitable for flying saw: | no |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces RS-485: | 0 |
Suitable for multi-axis control: | no |
Suitable for single-axis controller: | no |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces USB: | 0 |
Suitable for multi-axis positioning: | no |
Number of interfaces PROFINET: | 2 |
Number of HW-interfaces parallel: | 0 |
Supporting protocol for SERCOS: | no |
SIL according to IEC 61508: | None |
Suitable for single-axis positioning: | no |
Number of HW-interfaces other: | 0 |
Supporting protocol for SUCONET: | no |
Suitable for flux controller: | no |
Wall mounting/direct mounting: | no |
Supporting protocol for other bus systems: | no |
Suitable for flux measurement: | no |
