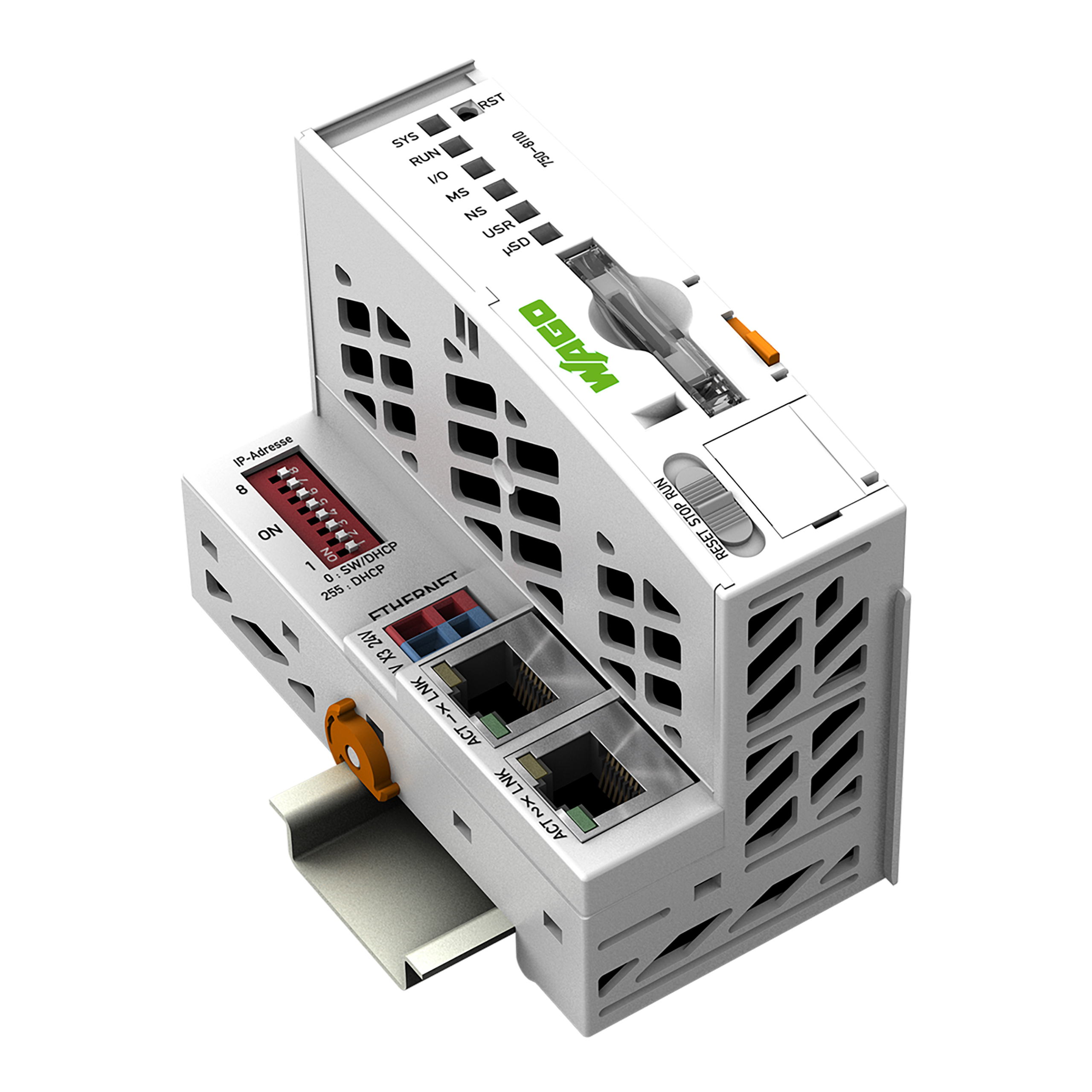

Sterownik PFC100; 2. generacja; 2 x ETHERNET; ECO
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 750-8110 |
| GTIN(EAN) | 4066966459951 |
| Price unit | piece |
| Catalog price | 2 966,76 zł (2 412,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
sterownik PFC100; 2. generacja; 2 x ETHERNET; ECO
Additional features:
| Information | Value |
|---|---|
| Net weight: | 111,9 g |
| Country of origin | Niemcy |
| ETIM class: | PLC CPU-module |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for IEC 61850 Ethernet: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Radio standard GPRS: | no |
| Redundancy: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| With display: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for IEC 60870: | no |
| Supporting protocol for DNP3: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for PROFINET IO: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET CBA: | no |
| Long-Term Evolution (LTE): | no |
| Number of analogue outputs: | 0 |
| Number of analogue inputs: | 0 |
| Supporting protocol for LON: | no |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ib): | no |
| Front built-in possible: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for KNX: | no |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Rail mounting possible: | yes |
| Supporting protocol for DeviceNet: | no |
| Rack-assembly possible: | no |
| Number of digital outputs: | 0 |
| Suitable for safety functions: | no |
| Number of digital inputs: | 0 |
| IO link master: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for ASI: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for PROFIBUS: | no |
| With optical interface: | no |
| Number of HW-interfaces wireless: | 0 |
| Additional program memory possible: | yes |
| System accessory: | yes |
| Number of HW-interfaces industrial Ethernet: | 2 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Max. number of time switches: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of relay outputs: | 0 |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Wall mounting/direct mounting: | no |
| Height: | 96.8 mm |
| Memory size: | 4194304 kB |
| Width: | 49.5 mm |
| Depth: | 71.9 mm |
| Supply voltage DC: | 24 - 24 V |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
WAGO GmbH & Co. KG
Hansastraße 27, 32423 Minden, Niemcy
mail: wago.elwag@wago.com
www: wago.com
|
| Updated: | 2025-01-21 14:48:02 |
| Files to download: | |
| External links: |
