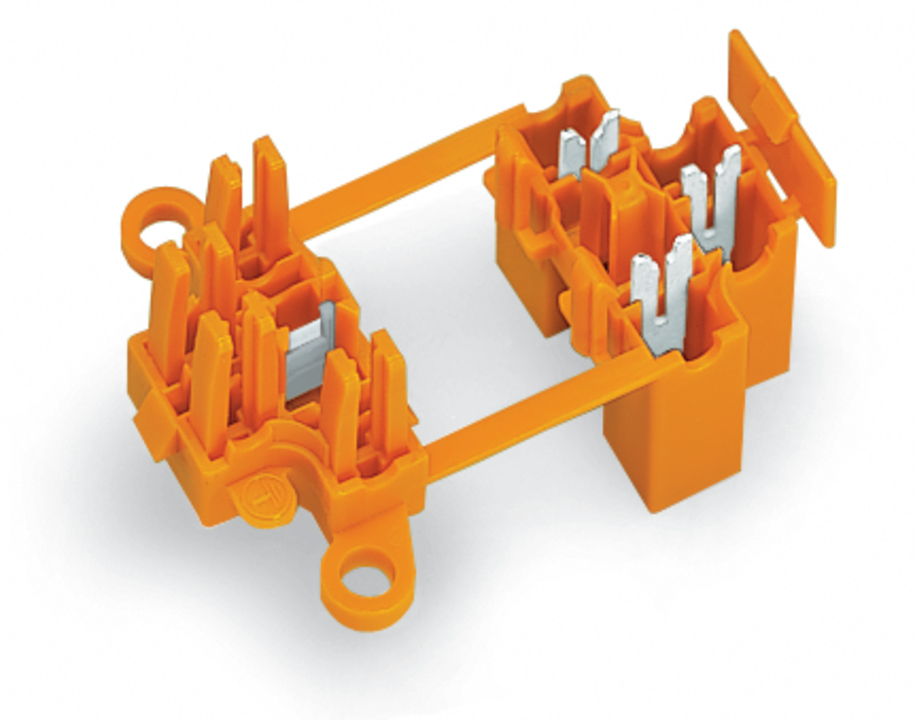

Gniazdo z uchwytami montażowymi 3-bieg., pomarańczowe
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 730-123 |
| GTIN(EAN) | 4044918600637 |
| Price unit | piece |
| Catalog price | 20,27 zł (16,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo; kołnierz mocujący; 3-bieg.; pomarańczowy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7,06 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 1 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 85 °C |

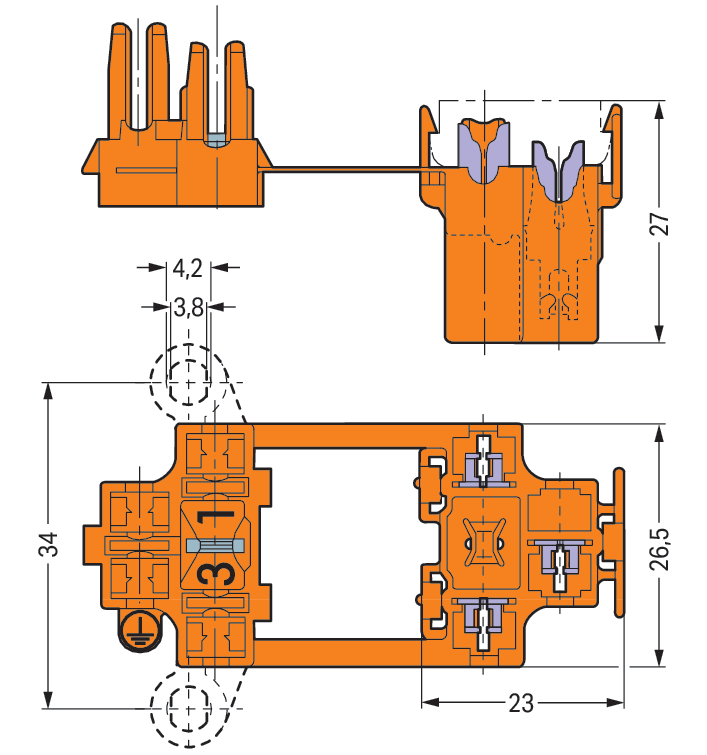

| Height: | 27 mm |
| Connectable conductor cross section solid-core: | 0.25 - 1.5 mm² |
| Rated current In: | 10 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Insulation displacement connection |
| Type of electrical connection 2: | Insulation displacement connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.75 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Number of poles: | 3 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Orange |
| Width: | 26.5 mm |
| Rated voltage: | 630 V |
| Depth: | 23 mm |
