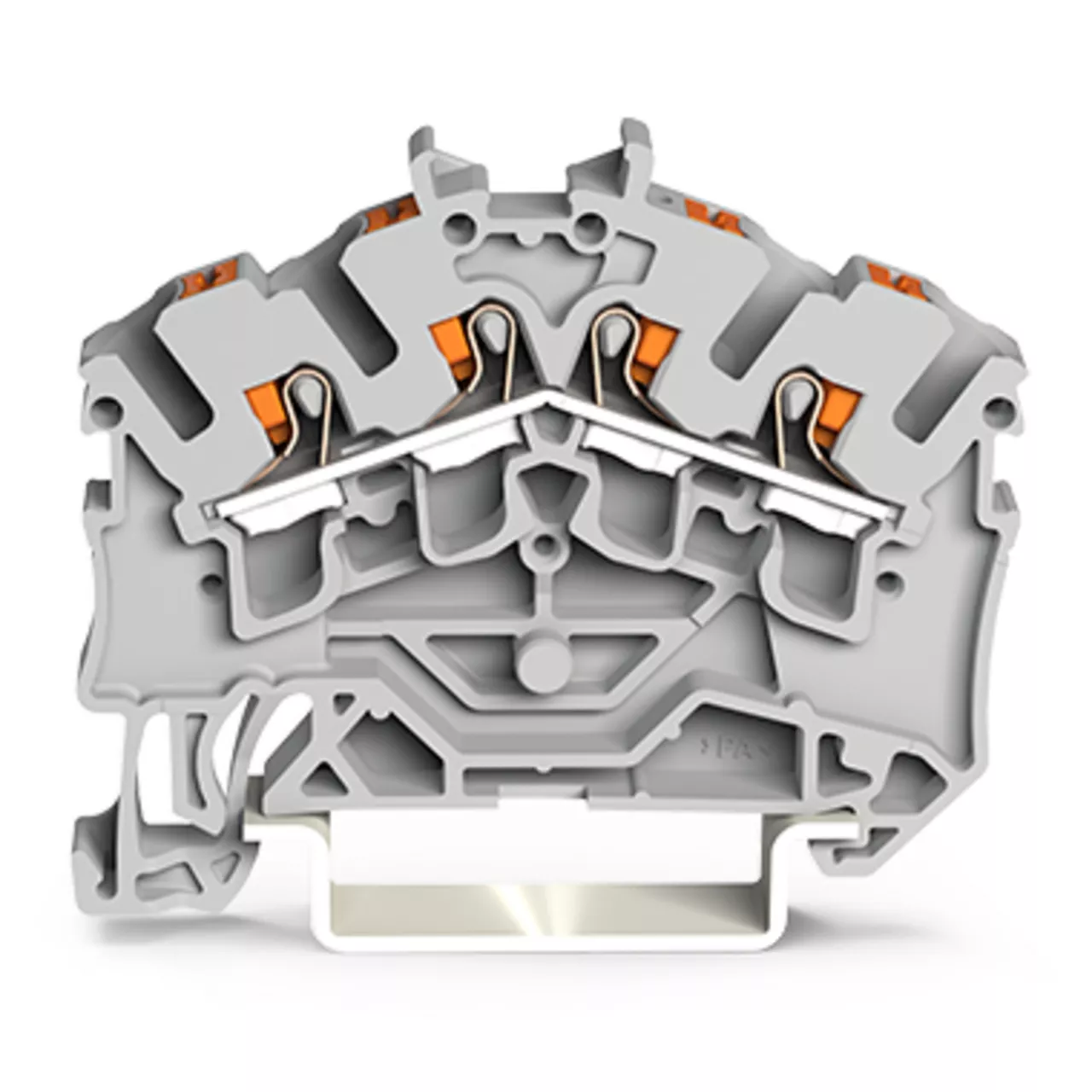

4-przewodowa złączka przelotowa z przyciskiem 2,5 mm², szara 2202-6401
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2202-6401 |
GTIN(EAN) | 4066966067286 |
Price unit | piece |
Catalog price | 8,56 zł (6,96 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 6,1 g |
ETIM class: | Feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 52.6 mm |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Explosion-tested version 'Ex e': | yes |
Number of clamp positions per level: | 4 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5.2 mm |
Rated voltage: | 800 V |
Depth: | 38.9 mm |
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:02:25 |
Files to download: | |
External links: |
