4-piętrowa złączka krosowa bez zatrzasków, szara 727-230/023-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 727-230/023-000 |
GTIN(EAN) | 4045454189464 |
Price unit | piece |
Catalog price | 62,23 zł (50,59 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

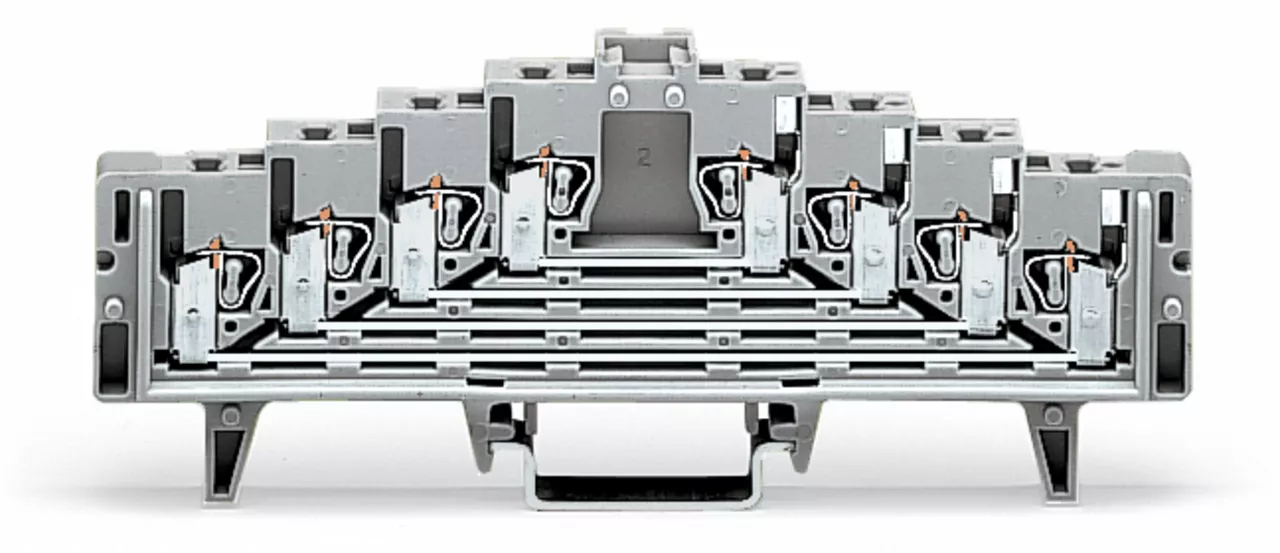

złączka krosowa 4-piętrowa; bez zatrzasków; jeden potencjał na każdy poziom; z otworem pomiarowym Ø 2,3 mm; nadruk: 3-2-1-0-0-1-2-3; na szynę TS 35 x 15; 1,5 mm²; 1,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 33,07 g |
ETIM class: | Feed-through terminal block |
Operating temperature: | 105 - 105 °C |
Explosion-tested version 'Ex e': | no |
Rated current In: | 12 A |
Height: | 126 mm |
Number of levels: | 4 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 1.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.08 - 1.5 mm² |
Connectable conductor cross section solid-core: | 0.08 - 1.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 0.75 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 4 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 7.62 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 250 V |
Depth: | 44.5 mm |
