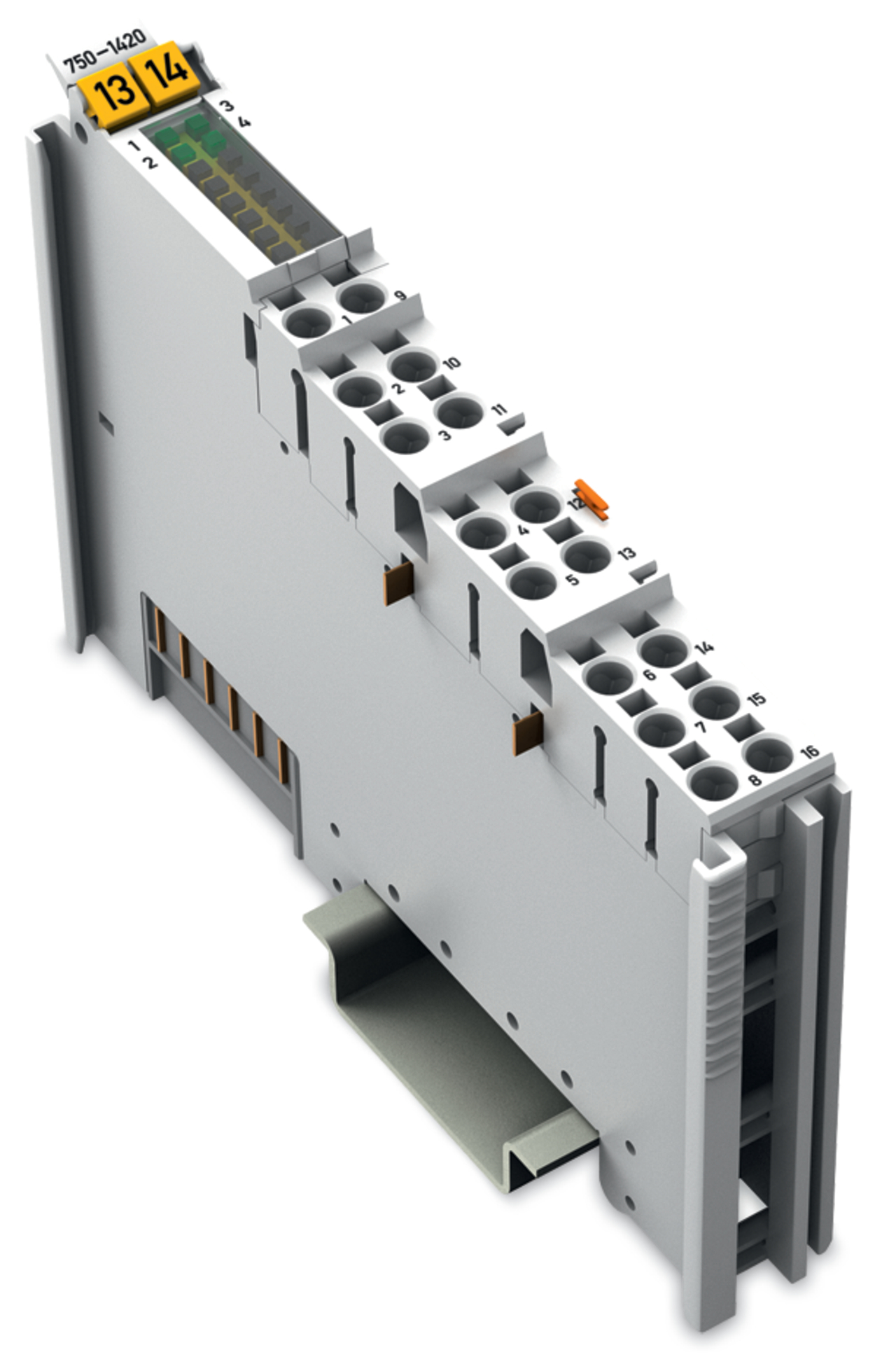

4-kanałowe wejście dwustanowe; 24 V DC; 3 ms; podłączanie 3-przewodowe 750-1420
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 750-1420 |
GTIN(EAN) | 4050821085614 |
Price unit | piece |
Catalog price | 287,70 zł (233,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
moduł wejść dwustanowych 4-kanałowy; 24 V DC; 3 ms; podłączenie 3-przewodowe
Additional features:
Information | Value |
---|---|
Net weight: | 45 g |
ETIM class: | Fieldbus, decentr. periphery - digital I/O module |
Type of digital output: | None |
Supporting protocol for AS-Interface Safety at Work: | no |
Explosion safety category for gas: | ATEX gas-ex-protection, Cat. 3G |
Explosion safety category for dust: | ATEX dust-ex-protection, Cat. 3D |
Type of electric connection: | Spring clamp connection |
Supporting protocol for INTERBUS-Safety: | no |
Radio standard GPRS: | no |
Digital outputs configurable: | no |
Fieldbus connection over separate bus coupler possible: | yes |
Width: | 12 mm |
Radio standard GSM: | no |
Depth: | 69 mm |
Radio standard UMTS: | no |
Time delay at signal change: | 3 - 3 ms |
Permitted voltage at input: | -3 - 30 V |
Height: | 100 mm |
Supporting protocol for SafetyBUS p: | no |
Type of voltage (input voltage): | DC |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for DeviceNet Safety: | no |
Voltage type (supply voltage): | DC |
Supporting protocol for PROFINET IO: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET CBA: | no |
Short-circuit protection, outputs available: | no |
Supporting protocol for LON: | no |
Supporting protocol for CAN: | no |
Appendant operation agent (Ex ib): | no |
Front built-in possible: | no |
Supporting protocol for INTERBUS: | no |
Radio standard Bluetooth: | no |
Supporting protocol for KNX: | no |
Radio standard WLAN 802.11: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for DeviceNet: | no |
Rail mounting possible: | yes |
Rack-assembly possible: | no |
Number of digital outputs: | 0 |
Suitable for safety functions: | no |
Number of digital inputs: | 4 |
Supporting protocol for TCP/IP: | no |
IO link master: | no |
Supporting protocol for ASI: | no |
Appendant operation agent (Ex ia): | no |
Supporting protocol for PROFIBUS: | no |
Supply voltage DC: | 24 - 24 V |
With optical interface: | no |
System accessory: | yes |
Number of HW-interfaces wireless: | 0 |
Degree of protection (IP): | IP20 |
Number of HW-interfaces industrial Ethernet: | 0 |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces RS-422: | 0 |
Input current at signal 1: | 1.6 mA |
Number of HW-interfaces RS-485: | 0 |
Number of HW-interfaces serial TTY: | 0 |
Digital inputs configurable: | no |
Number of HW-interfaces USB: | 0 |
Number of interfaces PROFINET: | 0 |
Number of HW-interfaces parallel: | 0 |
Supporting protocol for SERCOS: | no |
Number of HW-interfaces other: | 0 |
Supporting protocol for SUCONET: | no |
Wall mounting/direct mounting: | no |
Supporting protocol for other bus systems: | no |
