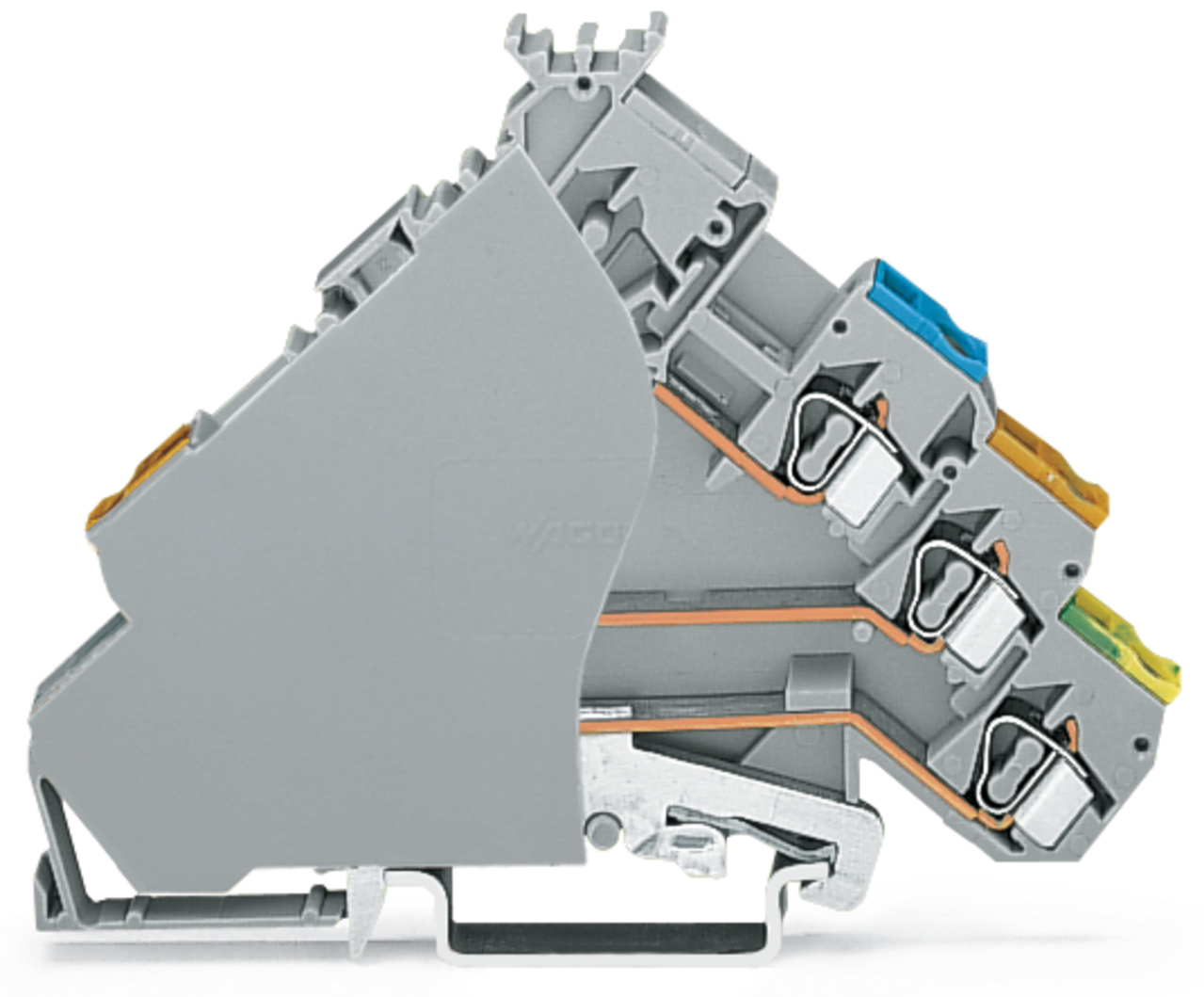

3-przewodowa złączka do elementów wykona z przyłączem PE, szara 280-575/280-320
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 280-575/280-320 |
| GTIN(EAN) | 4045454093778 |
| Price unit | piece |
| Catalog price | 53,31 zł (43,34 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka sygnałowa 3-piętrowa; z przyłączem PE; z otworami na przew. z kolor. nadrukiem; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 21,26 g |
| ETIM class: | Sensor/actuator terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Rated current In: | 5 A |
| Closing plate required: | no |
| Cross connectable: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Number of clamp positions per level: | 4 |
| Internally connected stages: | no |
| Colour: | Grey |
| Width: | 6 mm |
| Rated voltage: | 125 V |
| Depth: | 63.5 mm |
| Disconnect function: | no |
| Height: | 90.5 mm |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| With PE connection: | yes |
| With shield connection: | no |
| Inflammability class of insulation material according to with UL94: | V0 |
| With power supply function: | no |
| LED switching for: | No |
| Number of levels: | 1 |
| Explosion-tested version 'Ex e': | no |
