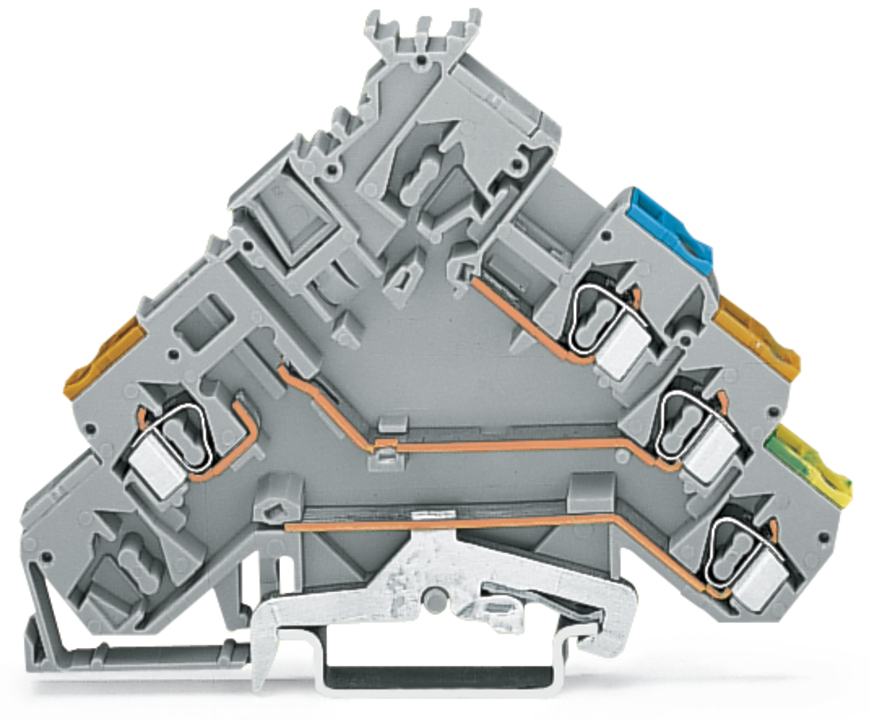

3-przewodowa złączka do elementów wykona z przyłączem PE, szara 280-575
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 280-575 |
GTIN(EAN) | 4045454093761 |
Price unit | piece |
Catalog price | 48,27 zł (39,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka sygnałowa 3-piętrowa; z przyłączem PE; z otworami na przew. z kolor. nadrukiem; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 17,46 g |
ETIM class: | Sensor/actuator terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Rated current In: | 5 A |
Closing plate required: | yes |
Cross connectable: | no |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Number of clamp positions per level: | 4 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5 mm |
Rated voltage: | 125 V |
Depth: | 63.5 mm |
Disconnect function: | no |
Height: | 90.5 mm |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
With PE connection: | yes |
With shield connection: | no |
Inflammability class of insulation material according to with UL94: | V0 |
With power supply function: | no |
LED switching for: | No |
Number of levels: | 1 |
Explosion-tested version 'Ex e': | no |
