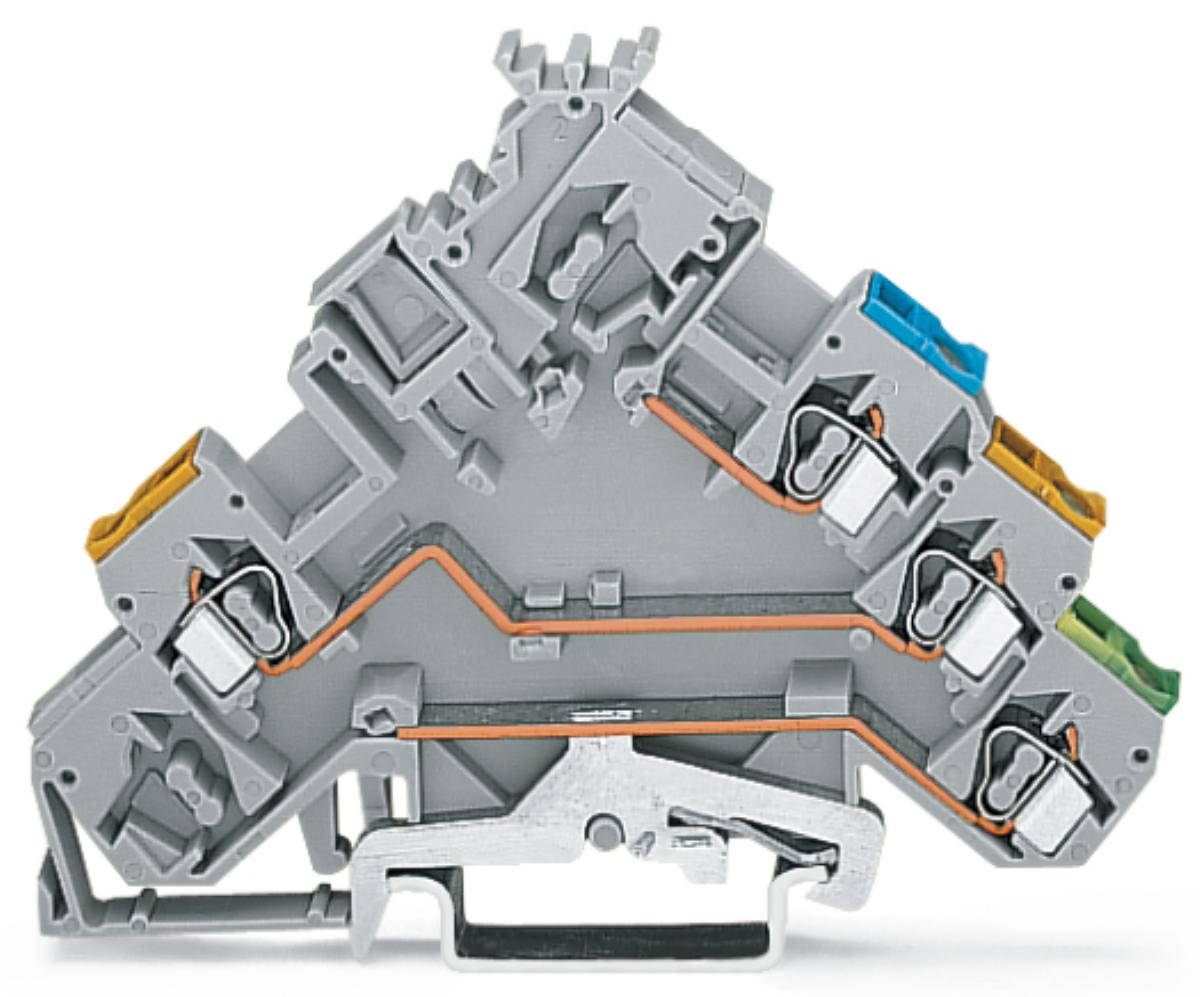

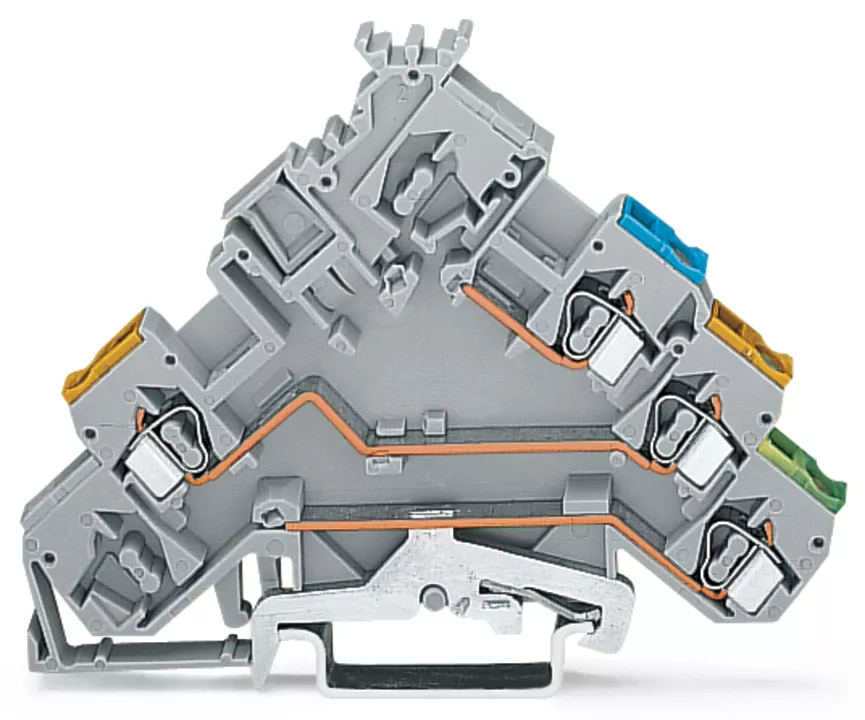

3-przewodowa złączka do elementów wykona z przyłączem PE, szara 280-572/281-411
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 280-572/281-411 |
GTIN(EAN) | 4045454194598 |
Price unit | piece |
Catalog price | 56,30 zł (45,77 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 17,7 g |
ETIM class: | Sensor/actuator terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Rated current In: | 20 A |
Closing plate required: | yes |
Cross connectable: | no |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Number of clamp positions per level: | 4 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5 mm |
Rated voltage: | 400 V |
Depth: | 63.5 mm |
Disconnect function: | no |
Height: | 90.5 mm |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
With PE connection: | yes |
With shield connection: | no |
Inflammability class of insulation material according to with UL94: | V0 |
With power supply function: | no |
LED switching for: | No |
Number of levels: | 1 |
Explosion-tested version 'Ex e': | no |
Buy online
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-01-17 14:37:30 |
Files to download: | |
External links: |
