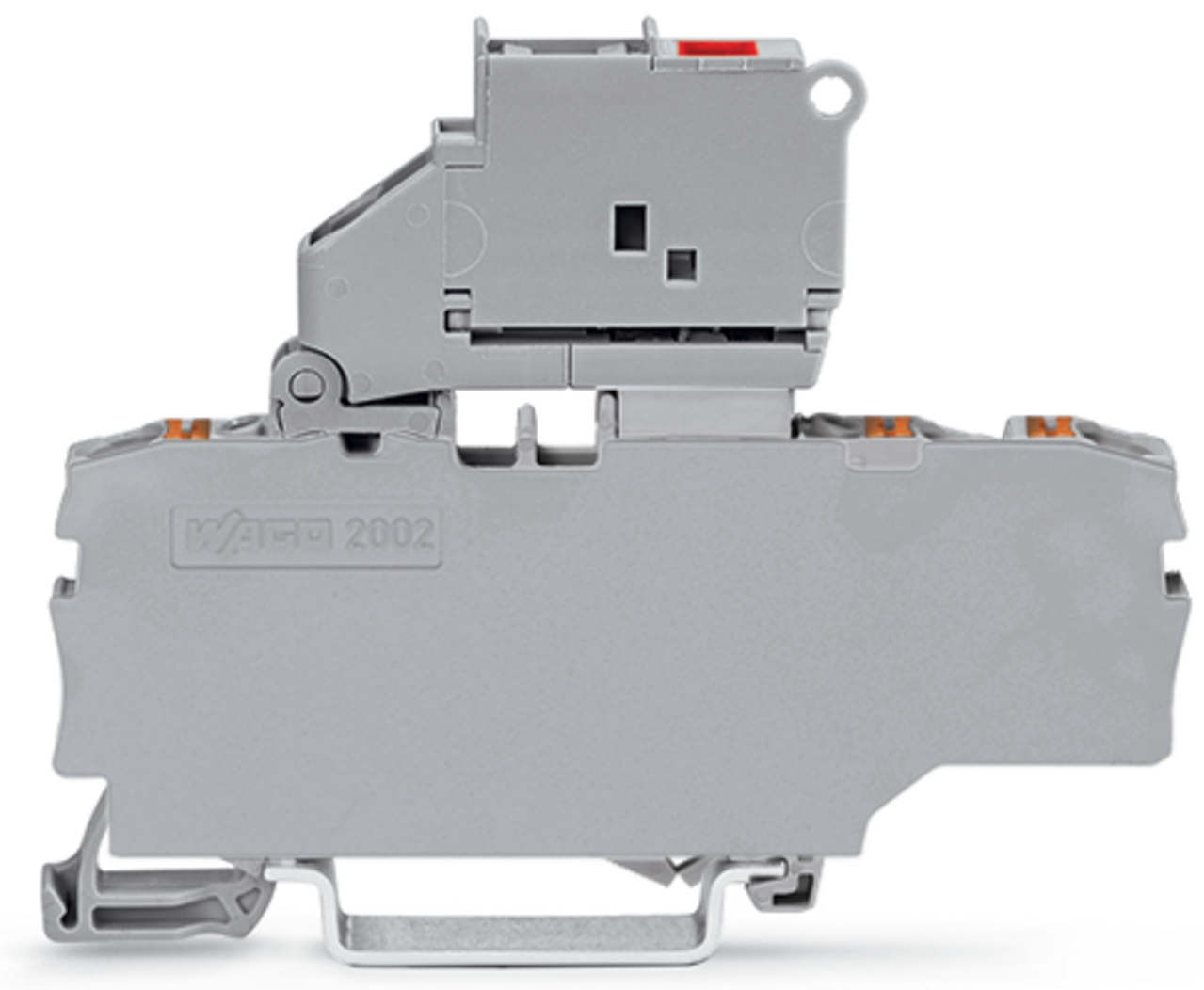

3-przewodowa złączka bezpiecznikowa z uchylną podstawką bezpiecznika ze ścianką końcową, szara 2202-1711/1000-836
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2202-1711/1000-836 |
GTIN(EAN) | 4055143962131 |
Price unit | piece |
Catalog price | 84,60 zł (68,78 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 15,2 g |
ETIM class: | Fuse terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 76.8 mm |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Voltage type for defect indication: | AC |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 6.3 A |
Supply voltage for defect-indication: | 230 - 230 V |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Colour: | Grey |
Width: | 6.2 mm |
Rated voltage: | 250 V |
Type of fuse insert: | G-fuse 5x20 mm |
Depth: | 57.6 mm |
Type of fuse holder: | Swivelling |
Type of indication element for defect indication: | LED |
