2-przewodowa złączka przelotowa 35mm², czarny
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 285-639 |
GTIN(EAN) | 4066966231939 |
Price unit | piece |
Catalog price | 63,74 zł (51,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

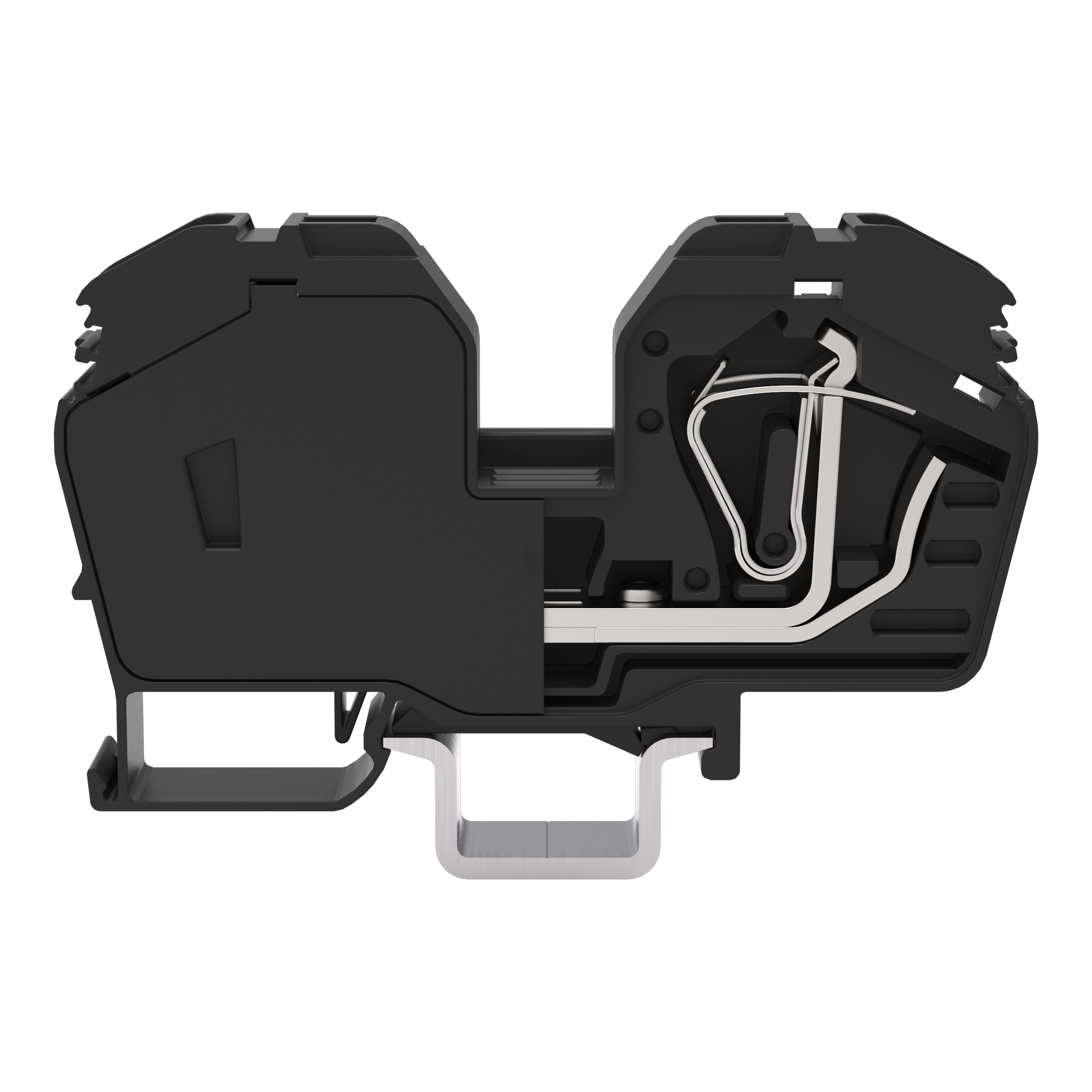

złączka przelotowa 2-przewodowa; 35 mm²; ze zintegrowaną ścianką końcową; opis z boku i na środku; tylko na szynę TS 35 x 15; CAGE CLAMP®; 35,00 mm²; czarny
Additional features:
Information | Value |
---|---|
Net weight: | 88,27 g |
ETIM class: | Feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 100 mm |
Connectable conductor cross section solid-core: | 6 - 35 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 125 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 6 - 35 mm² |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 6 - 35 mm² |
Explosion-tested version 'Ex e': | no |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Black |
Width: | 16 mm |
Rated voltage: | 1000 V |
Depth: | 53 mm |
