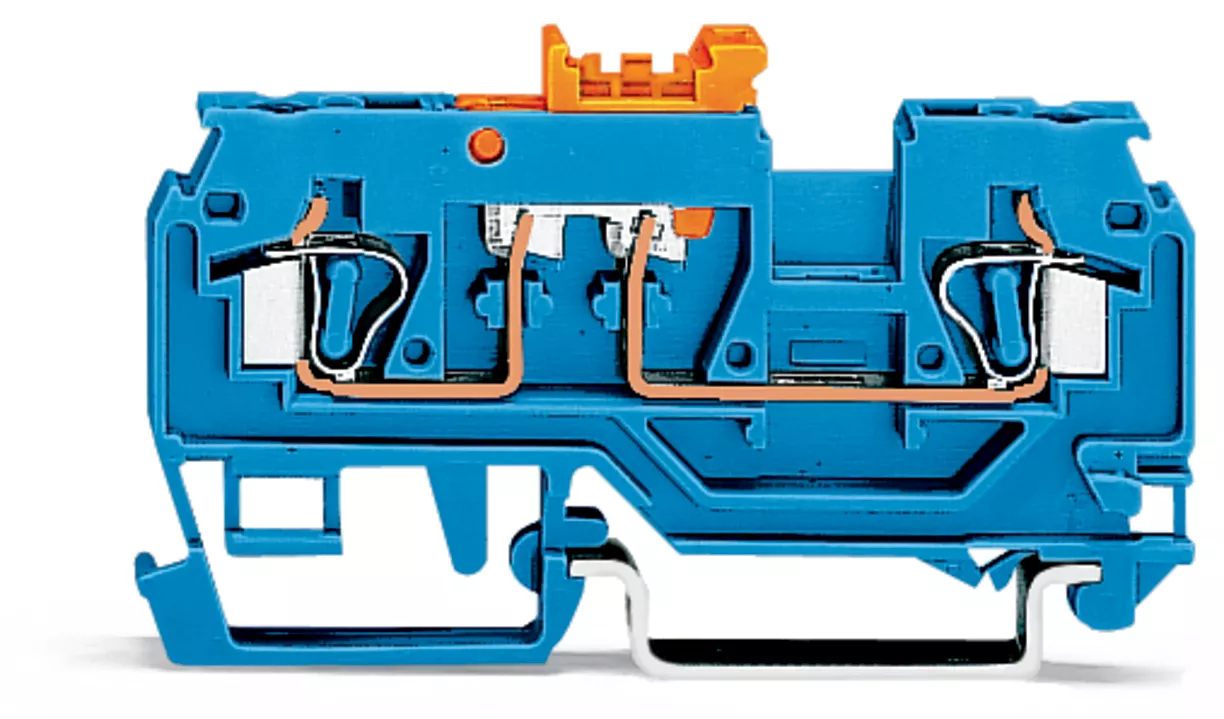

2-przewodowa złączka rozłączalno-pomiaro z uchylnym łącznikiem nożowym z otworem pomiarowym, niebieska
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 280-876 |
| GTIN(EAN) | 4050821014577 |
| Price unit | piece |
| Catalog price | 20,57 zł (16,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka rozłączalno-pomiarowa 2-przewodowa; z uchylnym łącznikiem nożowym; z otworem pomiarowym; uchwyt łącznika nożowego pomarańczowy; do zastosowań Ex i; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8,64 g |
| ETIM class: | (Knife) disconnect terminal block |
| Operating temperature: | 105 - 105 °C |
| Rated current In: | 16 A |
| Height: | 69.5 mm |
| Number of levels: | 1 |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Blue |
| Width: | 5 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 400 V |
| Depth: | 28.5 mm |
| With integrated test socket: | no |
| Type of slitting: | None |
| Type of cross disconnection: | None |
