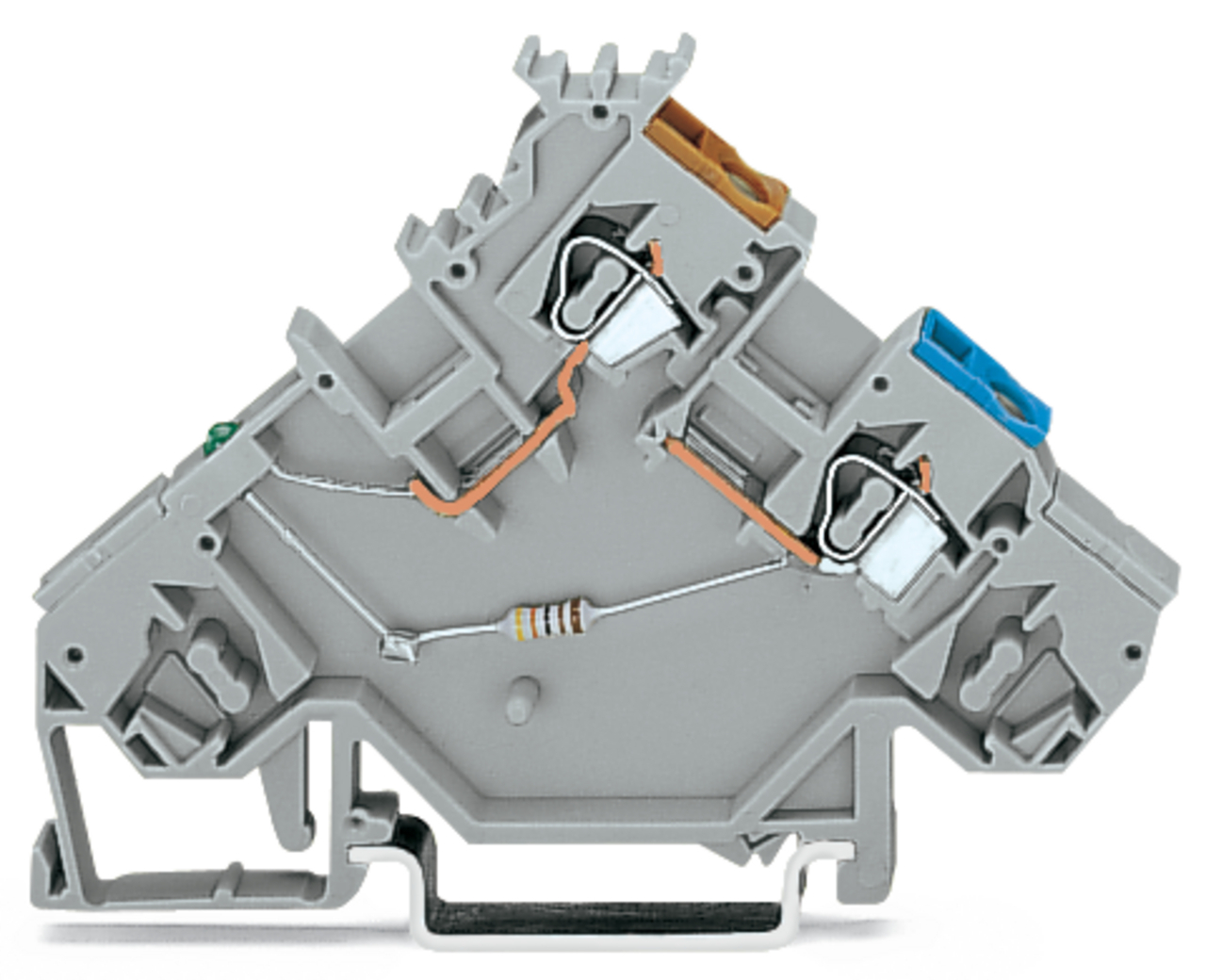

3-przewodowa złączka zasilająca do czujników LED zielona do czujników typu PNP, szara
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 280-564/281-483 |
GTIN(EAN) | 4045454365707 |
Price unit | piece |
Catalog price | 47,37 zł (38,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka zasilająca sygnałowa 3-piętrowa; LED zielona; typu PNP; zasilanie od strony czujników; z otworami na przew. z kolor. nadrukiem; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 8,3 g |
ETIM class: | Sensor/actuator terminal block |
Disconnect function: | no |
Operating temperature: | 105 - 105 °C |
Cross connectable: | no |
Explosion-tested version 'Ex e': | no |
Rated current In: | 20 A |
Height: | 80 mm |
Number of levels: | 1 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5 mm |
Inflammability class of insulation material according to with UL94: | V0 |
With power supply function: | yes |
LED switching for: | PNP |
Rated voltage: | 24 V |
With PE connection: | no |
With shield connection: | no |
Depth: | 55.5 mm |
Colour light source: | Green |
