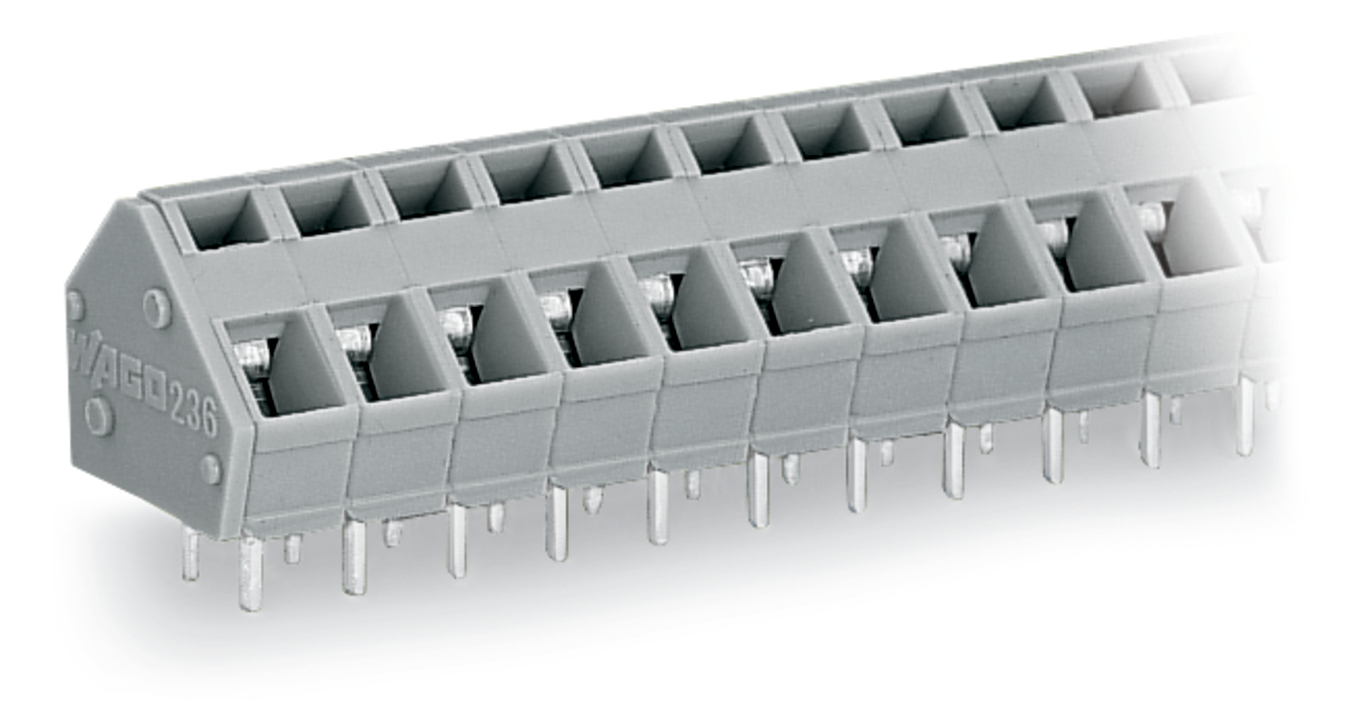

Złącze do PCB 2,5 mm² RASTER 5/5,08 mm 10-bieg., szary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 236-410 |
GTIN(EAN) | 4044918770385 |
Price unit | piece |
Catalog price | 16,95 zł (13,78 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
złącze do PCB; 2,5 mm²; raster 5/5,08 mm; 10-bieg.; CAGE CLAMP®; możliwość mostkowania; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 8,92 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Rated current In: | 24 A |
Material connection surface: | Tin |
Rated surge voltage: | 4 kV |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Spring clamp connection |
Length pin: | 4 mm |
Modular spacing connections: | 5 mm |
Type of banding: | None |
Over voltage category: | III |
Height: | 13 mm |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
Number of electrical connections: | 10 |
