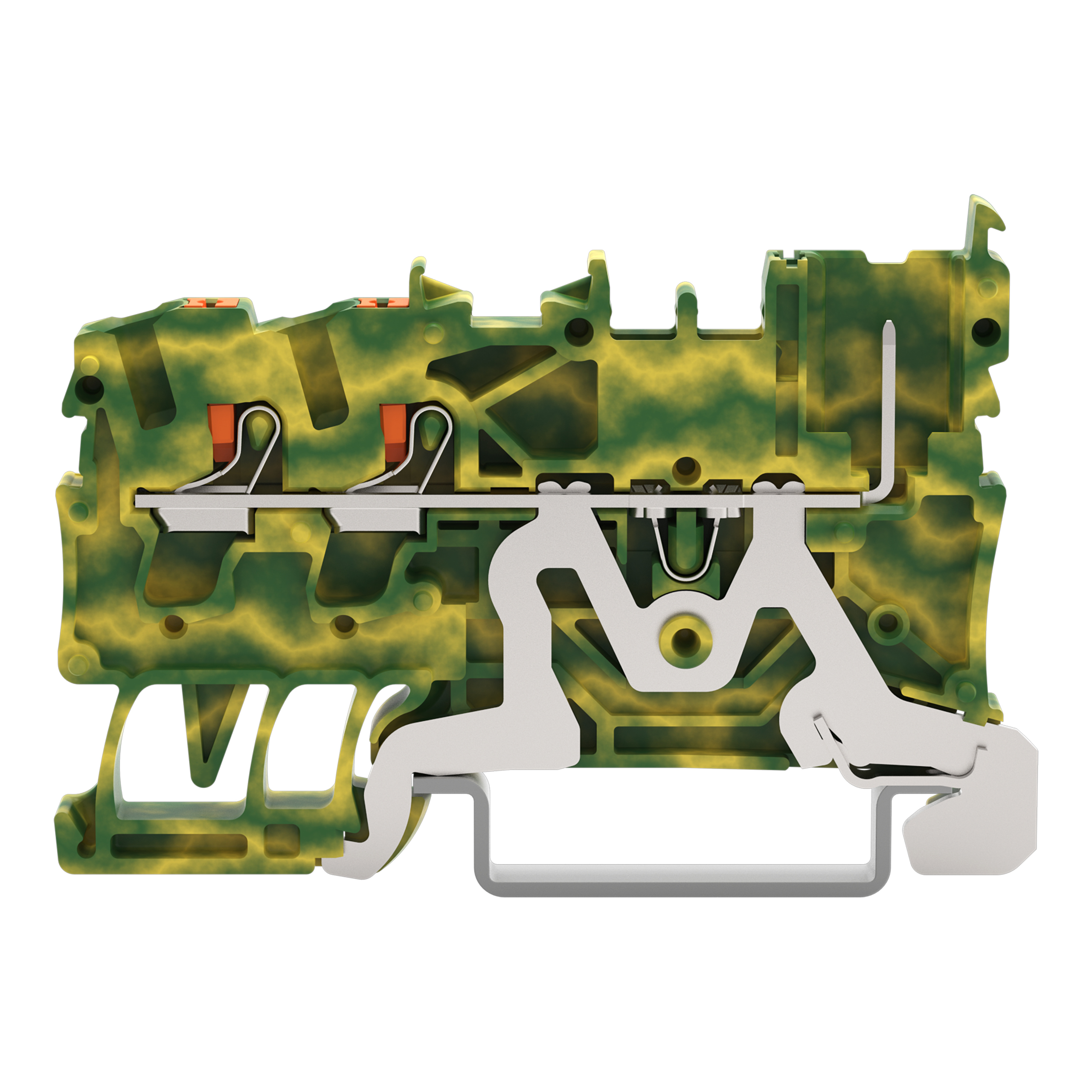

Złączka bazowa PE 2-przewodowa/1-pinowa z przyciskami, żółto-zielony
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2222-1307/999-953 |
| GTIN(EAN) | 4066966204216 |
| Price unit | piece |
| Catalog price | 19,66 zł (15,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka bazowa PE 2-przewodowa/1-pinowa; z przyciskami; 2,5 mm²; do zastosowań Ex nA; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 2,50 mm²; żółto-zielony
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,67 g |
| ETIM class: | Ground terminal block |
| Operating temperature: | 105 - 105 °C |
| Material insulation body: | Thermoplastic |
| Height: | 61.8 mm |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
| PEN function possible: | yes |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Number of levels: | 1 |
| Type of electrical connection 2: | Plug-in connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Number of clamp positions per level: | 3 |
| Colour: | Green/yellow |
| Width: | 5.2 mm |
| Depth: | 36.4 mm |
