Złączka do przewodu wyrówn. 1-przewodowa 6 mm², szary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2206-7111 |
GTIN(EAN) | 4066966319019 |
Price unit | piece |
Catalog price | 22,61 zł (18,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

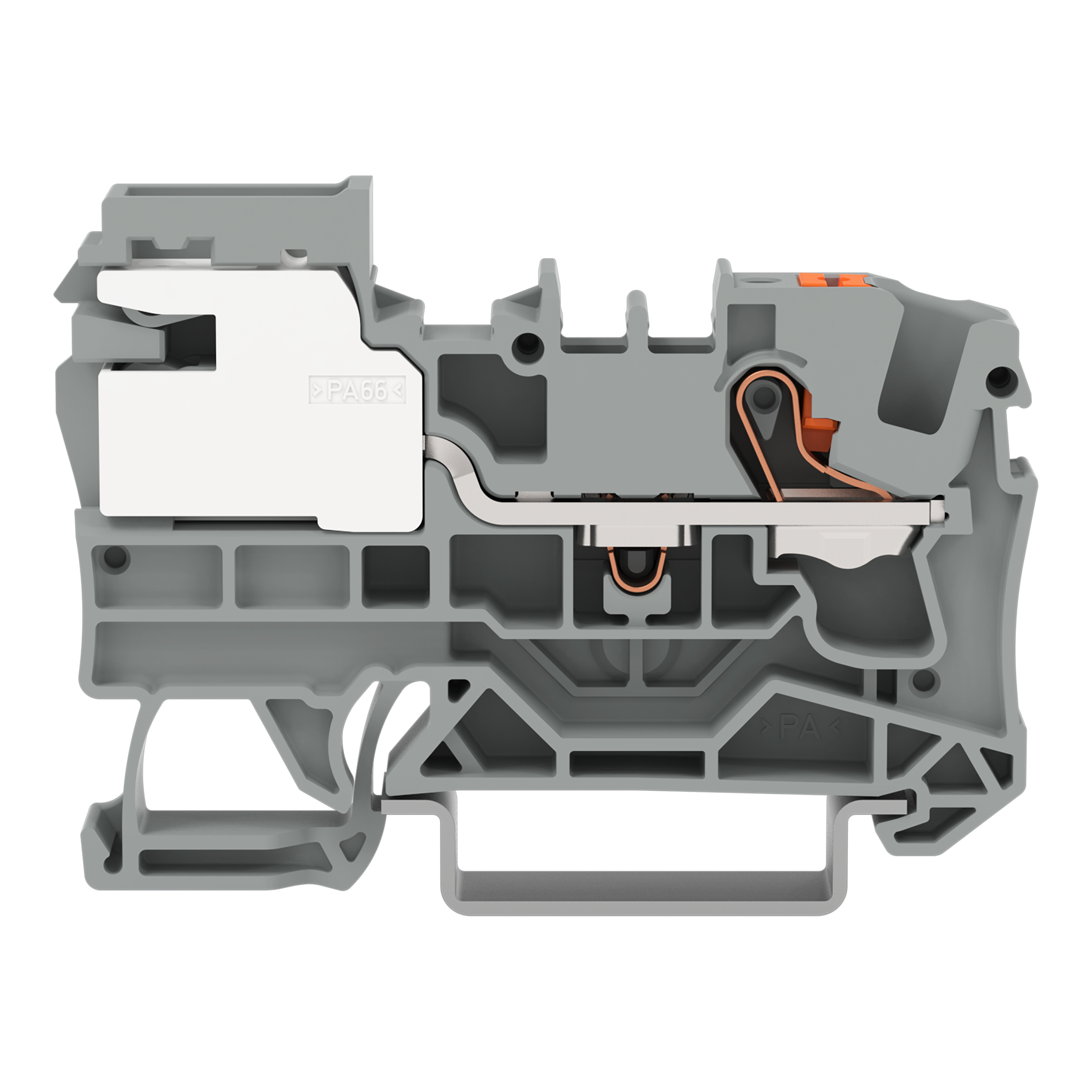

złączka do przewodu wyrówn. 1-przewodowa; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 14,38 g |
ETIM class: | Neutral disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 60.1 mm |
Connectable conductor cross section solid-core: | 1.5 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 51 A |
Suitable for N-busbar: | 3x10 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Type of electric connection: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Connecting plate required: | yes |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Colour: | Other |
Rated voltage: | 250 V |
Width: | 7.5 mm |
Depth: | 38.1 mm |
Number of clamp positions: | 1 |
