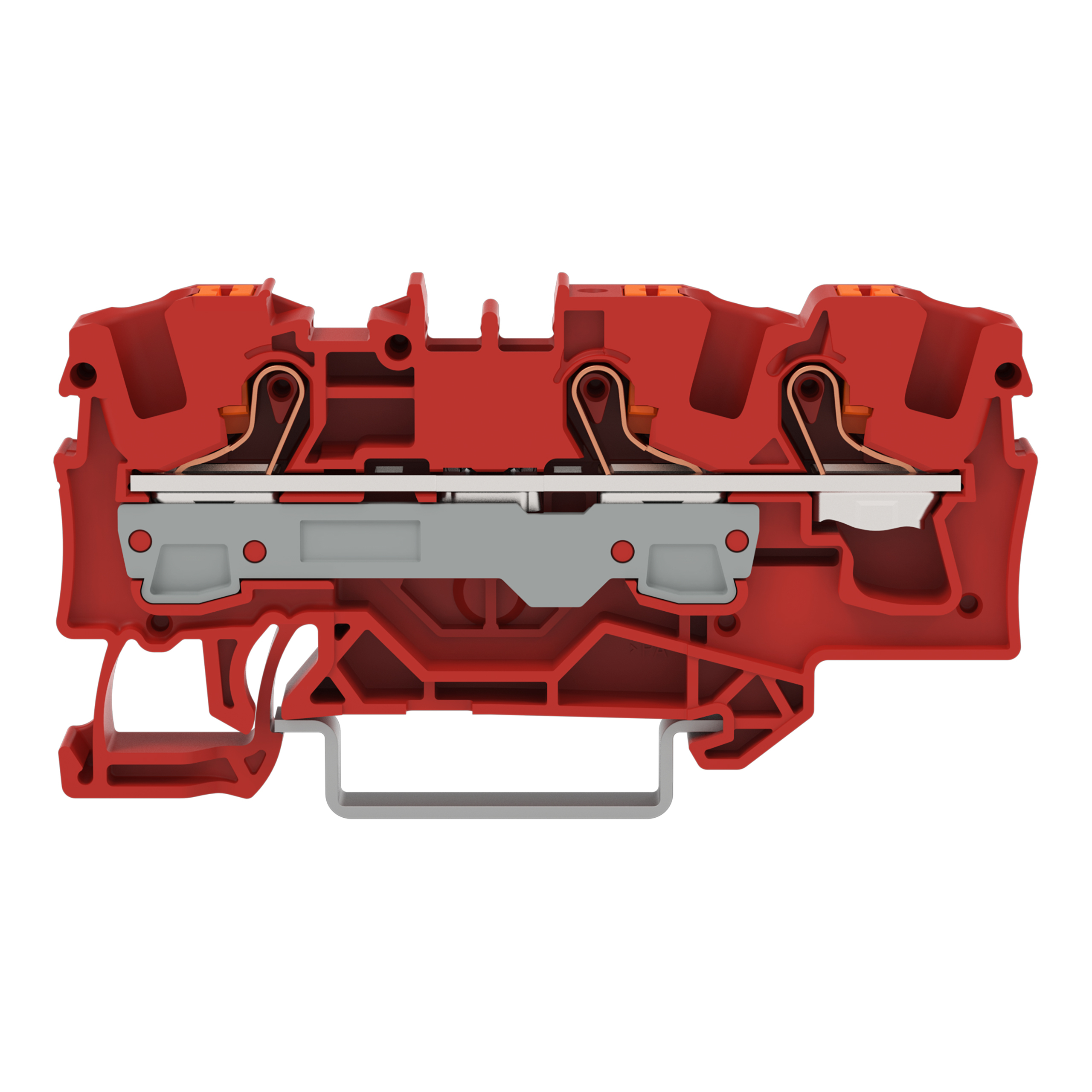

Złączka przelotowa 3-przewodowa z przyciskami 6 mm², czerwony
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2206-1303 |
GTIN(EAN) | 4066966335620 |
Price unit | piece |
Catalog price | 15,71 zł (12,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka przelotowa 3-przewodowa; z przyciskami; 6 mm²; z otworem pomiarowym; do zastosowań Ex e II; opis z boku i na środku; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 6,00 mm²; czerwony
Additional features:
Information | Value |
---|---|
Net weight: | 13,02 g |
ETIM class: | Feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 73.3 mm |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 41 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Explosion-tested version 'Ex e': | yes |
Number of clamp positions per level: | 3 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 7.5 mm |
Rated voltage: | 800 V |
Depth: | 32.9 mm |
