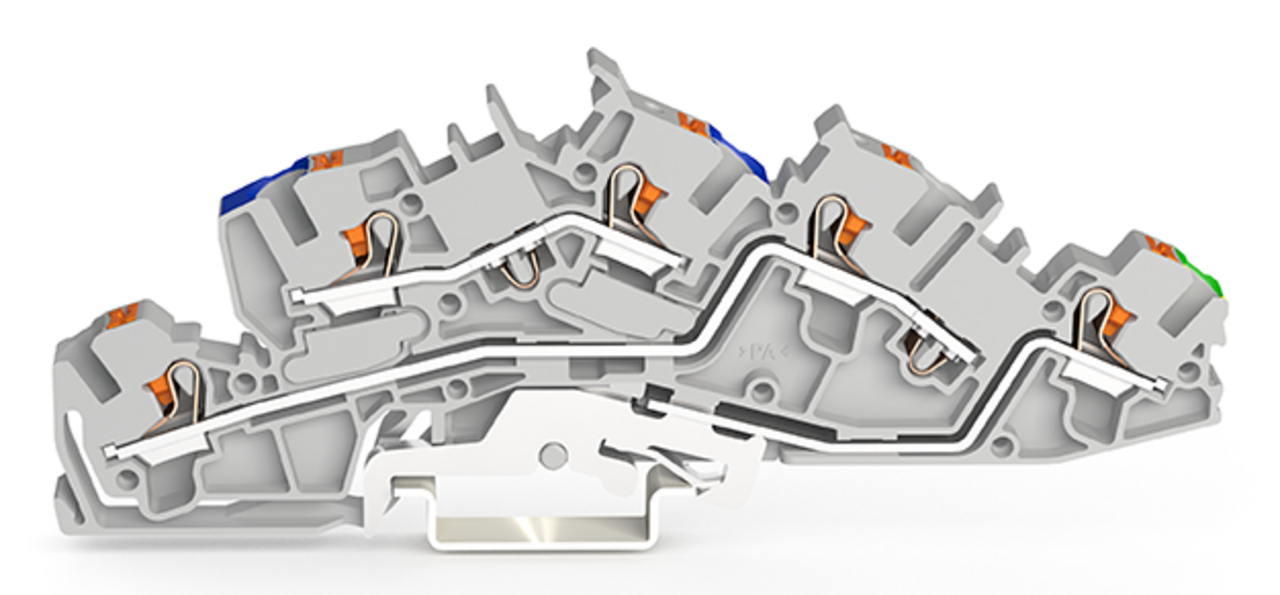

Piętrowa złączka instalacyjna; z przyciskiem; 4 mm²; N/L/PE; Push-in CAGE CLAMP®; 4,00 mm²; szara
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2205-7646 |
GTIN(EAN) | 4066966165234 |
Price unit | piece |
Catalog price | 32,87 zł (26,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
złączka instalacyjna piętrowa; z przyciskami; 4 mm²; N/L/PE; Push-in CAGE CLAMP®; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 30,07 g |
Country of origin | Polska |
ETIM class: | Multi level installation terminal block |
Operating temperature: | 105 - 105 °C |
Height: | 123,5 mm |
Material insulation body: | Thermoplastic |
Connectable conductor cross section solid-core: | 1 - 6 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0,75 - 4 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 40 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0,5 - 6 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0,5 - 4 mm² |

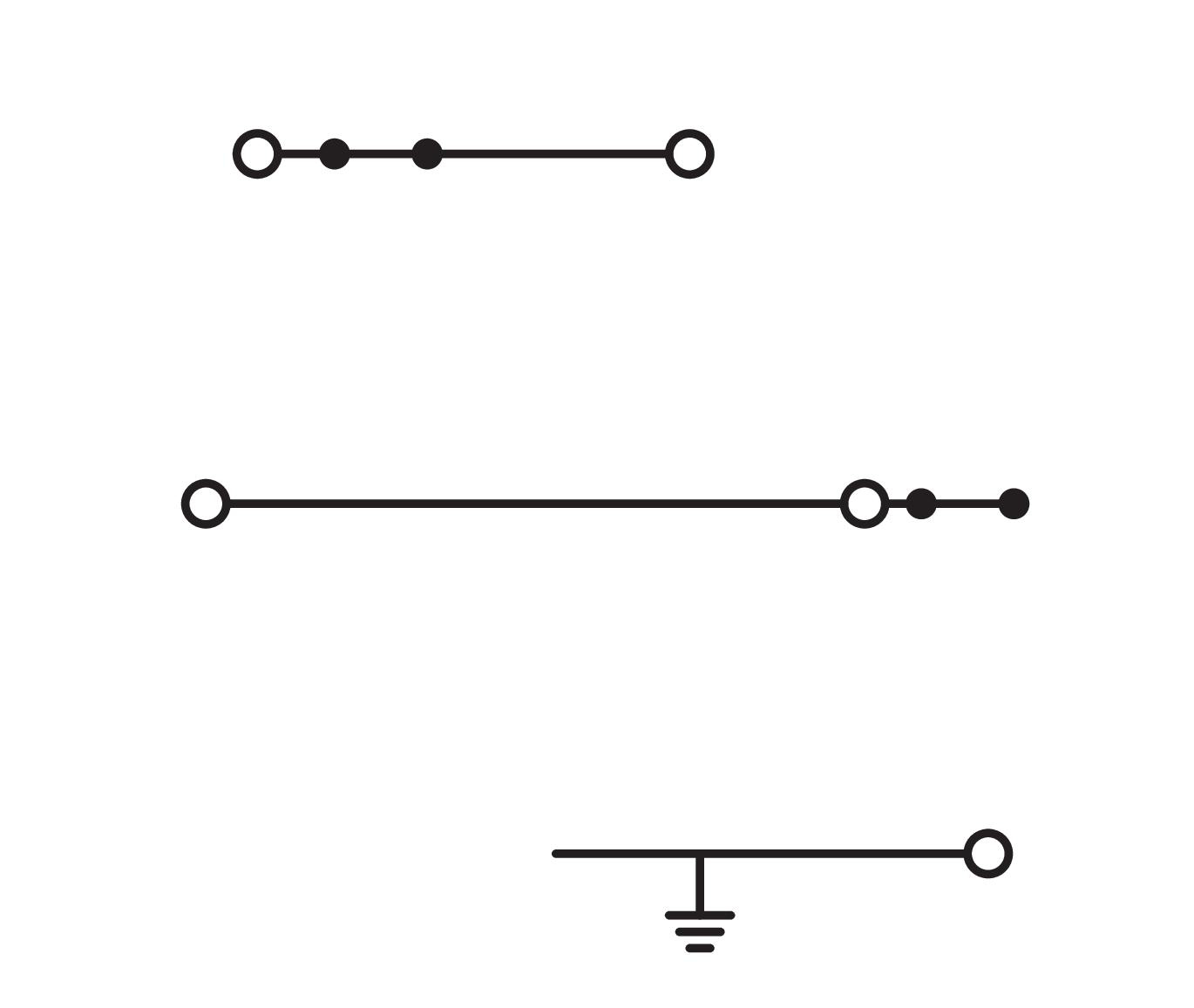

Number of potentials: | 3 |
Basic colour: | Grey |
PE-function: | yes |
Rated voltage: | 250 V |
With N-disconnect slide: | no |
Width: | 6,2 mm |
N function possible: | yes |
Depth: | 45,6 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
Information | Value |
---|---|
Manufacturer or importer or entity responsible in EU |
WAGO GmbH & Co. KG
Hansastraße 27, 32423 Minden, Niemcy
mail: wago.elwag@wago.com
www: wago.com
|
Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
Updated: | 2025-02-20 14:57:08 |
