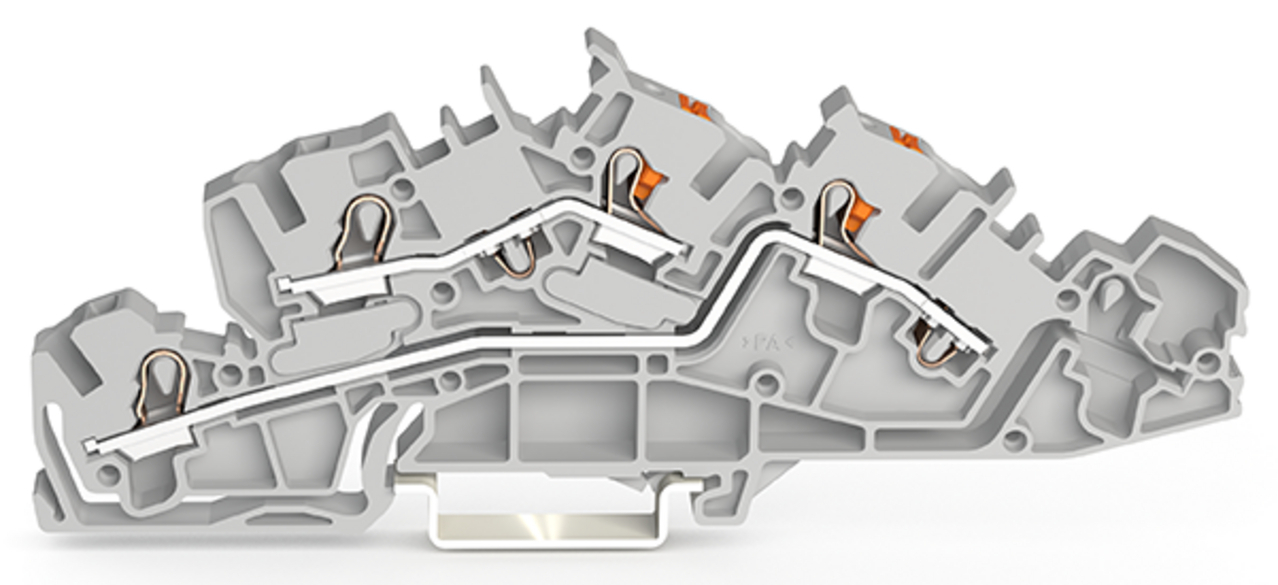

Piętrowa złączka instalacyjna; z otworami montażowymi i przyciskami; 4 mm²; L/L; Push-in CAGE CLAMP®; 4,00 mm²; szara
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2205-7542 |
GTIN(EAN) | 4066966165265 |
Price unit | piece |
Catalog price | 22,55 zł (18,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka instalacyjna piętrowa; z otworami montażowymi i przyciskami; 4 mm²; L/L; Push-in CAGE CLAMP®; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 21,71 g |
ETIM class: | Multi level installation terminal block |
Operating temperature: | 105 - 105 °C |
Height: | 123.5 mm |
Material insulation body: | Thermoplastic |
Connectable conductor cross section solid-core: | 1 - 6 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 4 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 40 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 6 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
Number of potentials: | 2 |
Basic colour: | Grey |
PE-function: | no |
Rated voltage: | 400 V |
With N-disconnect slide: | no |
Width: | 6.2 mm |
N function possible: | no |
Depth: | 45.6 mm |
