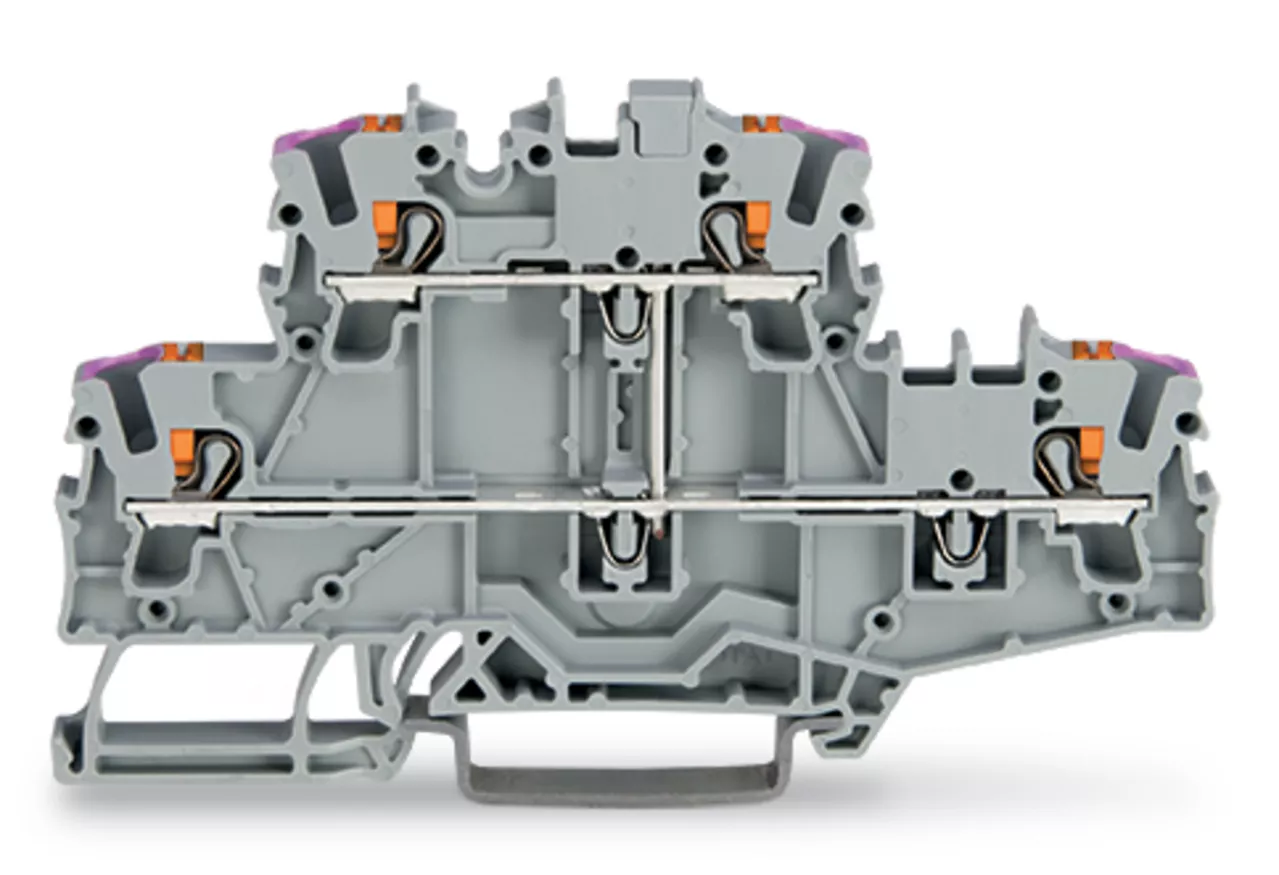

Złączka dwupiętrowa z przyciskiem 4-przewodowa, szara
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2202-2708 |
GTIN(EAN) | 4055143844635 |
Price unit | piece |
Catalog price | 18,79 zł (15,28 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 13,09 g |
ETIM class: | Feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 92.5 mm |
Connectable conductor cross section solid-core: | 1 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Number of levels: | 2 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Explosion-tested version 'Ex e': | yes |
Number of clamp positions per level: | 2 |
Internally connected stages: | yes |
Colour: | Grey |
Width: | 5.2 mm |
Rated voltage: | 800 V |
Depth: | 51.7 mm |
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:03:08 |
Files to download: | |
External links: |
