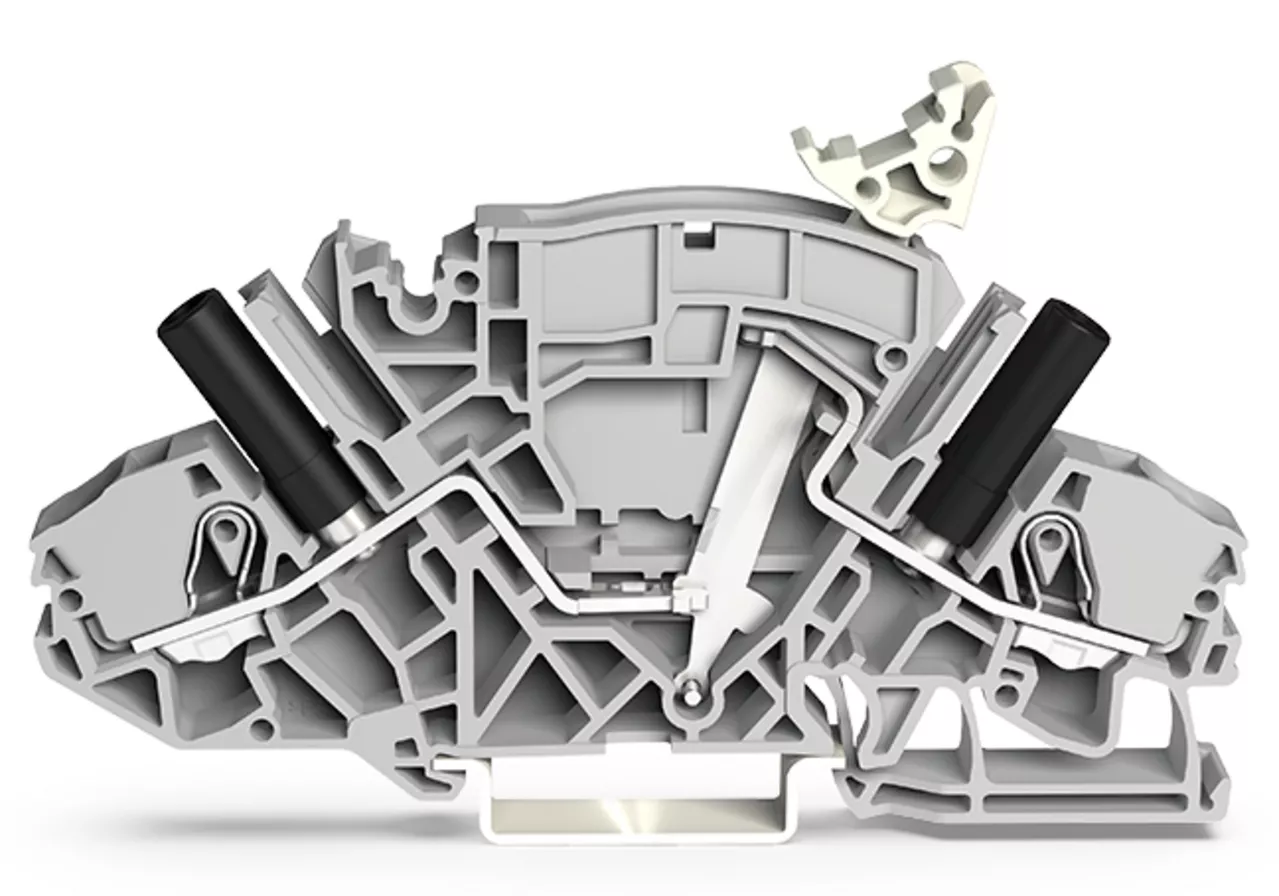

2-przewodowa złączka rozłączalno-pomiaro; np. do przekładników napięciowych z izolowanymi gniazdami pomiarowymi
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2007-8811/046-000 |
GTIN(EAN) | 4055144059410 |
Price unit | piece |
Catalog price | 42,83 zł (34,82 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 27,86 g |
ETIM class: | (Knife) disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Height: | 99.6 mm |
Material insulation body: | Thermoplastic |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Type of slitting: | None |
Rated current In: | 30 A |
Inflammability class of insulation material according to with UL94: | V0 |
Type of cross disconnection: | None |
With integrated test socket: | yes |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Rated voltage: | 500 V |
Width: | 8 mm |
Depth: | 65.3 mm |
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:03:56 |
Files to download: | |
External links: |
