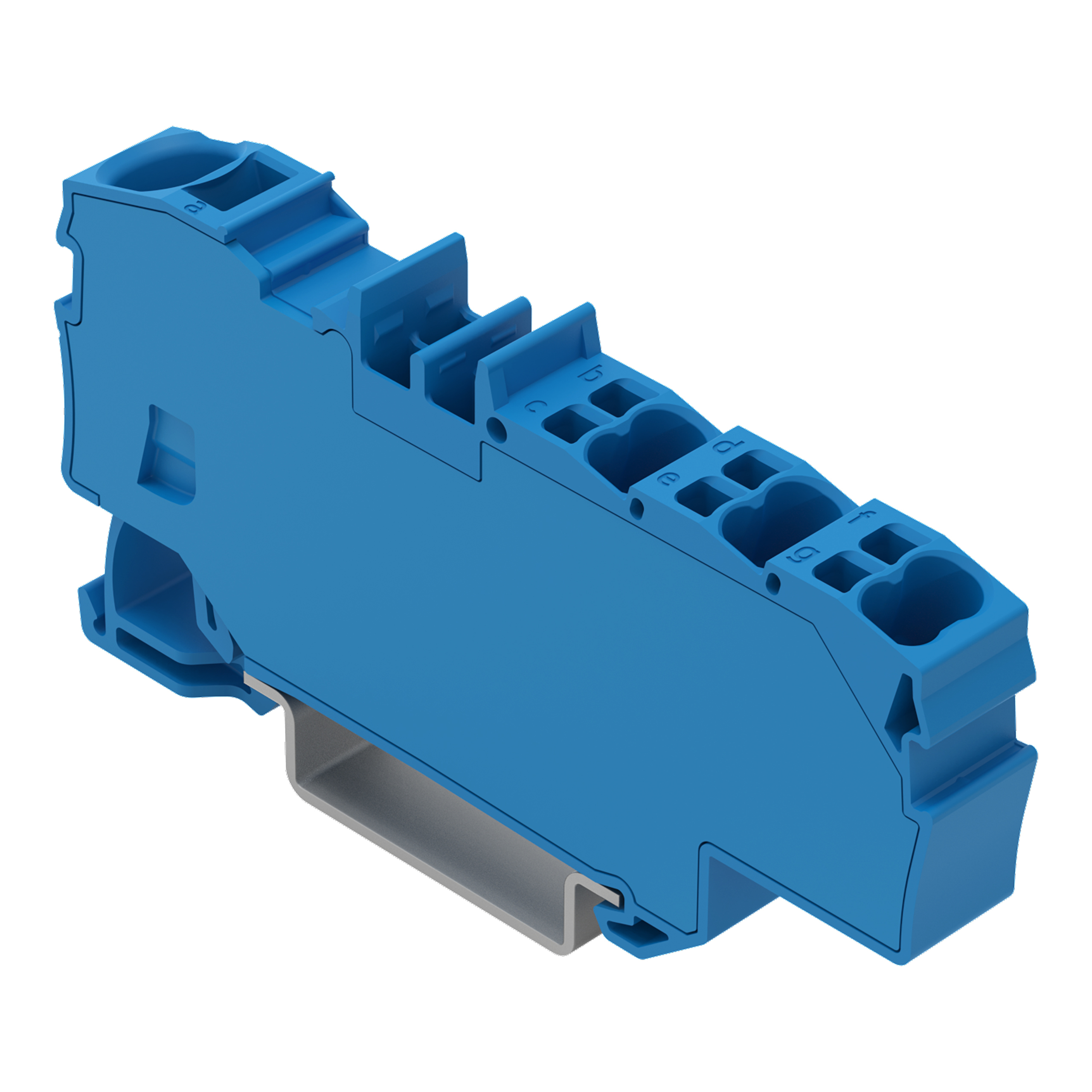

Złączka rozgałęźna z otworem montażowym 1 x 6 mm² / 6 x 1,5 mm², niebieski
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2006-8034 |
| GTIN(EAN) | 4066966185775 |
| Price unit | piece |
| Catalog price | 33,21 zł (27,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka rozgałęźna; z otworem montażowym; 1 x 6 mm² / 6 x 1,5 mm²; ze zintegrowaną ścianką końcową; opis z boku i na środku; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 6,00 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16,19 g |
| ETIM class: | Feed-through terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 73.8 mm |
| Connectable conductor cross section solid-core: | 1 - 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 41 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Number of levels: | 1 |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
| Explosion-tested version 'Ex e': | no |
| Number of clamp positions per level: | 7 |
| Internally connected stages: | no |
| Colour: | Blue |
| Width: | 9 mm |
| Rated voltage: | 800 V |
| Depth: | 32.9 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-04 09:01:23 |
| Files to download: | |
| External links: |
