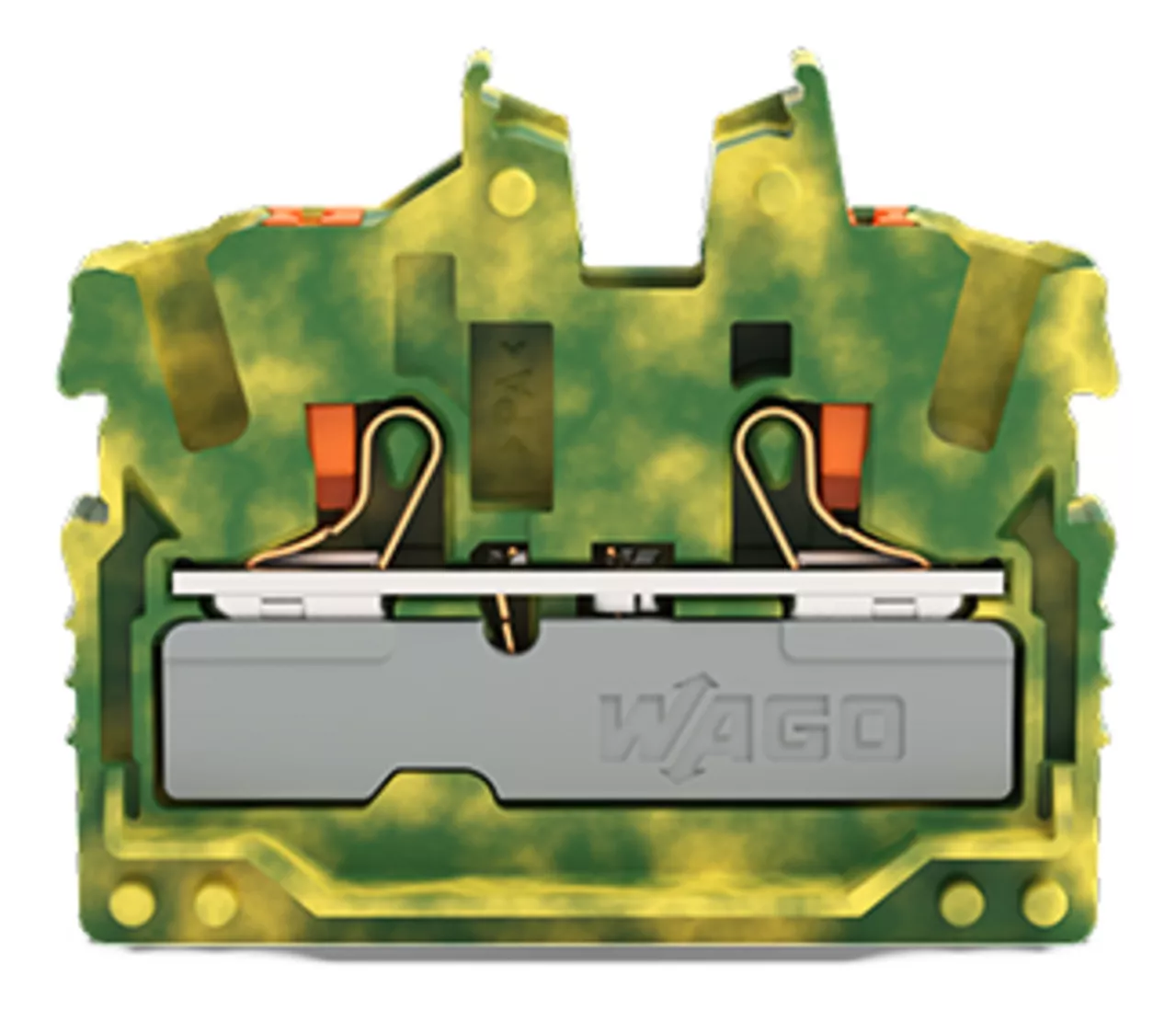

2-przewodowa złączka przelotowa mini; z przyciskiem 2,5 mm², żółto-zielony 2252-327
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2252-327 |
GTIN(EAN) | 4066966147124 |
Price unit | piece |
Catalog price | 5,89 zł (4,79 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka przelotowa Mini 2-przewodowa; z przyciskami; 2,5 mm²; zł. wewn. bez stopki zatrz. bez uchwytu; opis z boku i na środku; z otworem pomiarowym; Push-in CAGE CLAMP®; 2,50 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 4,22 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 2 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |

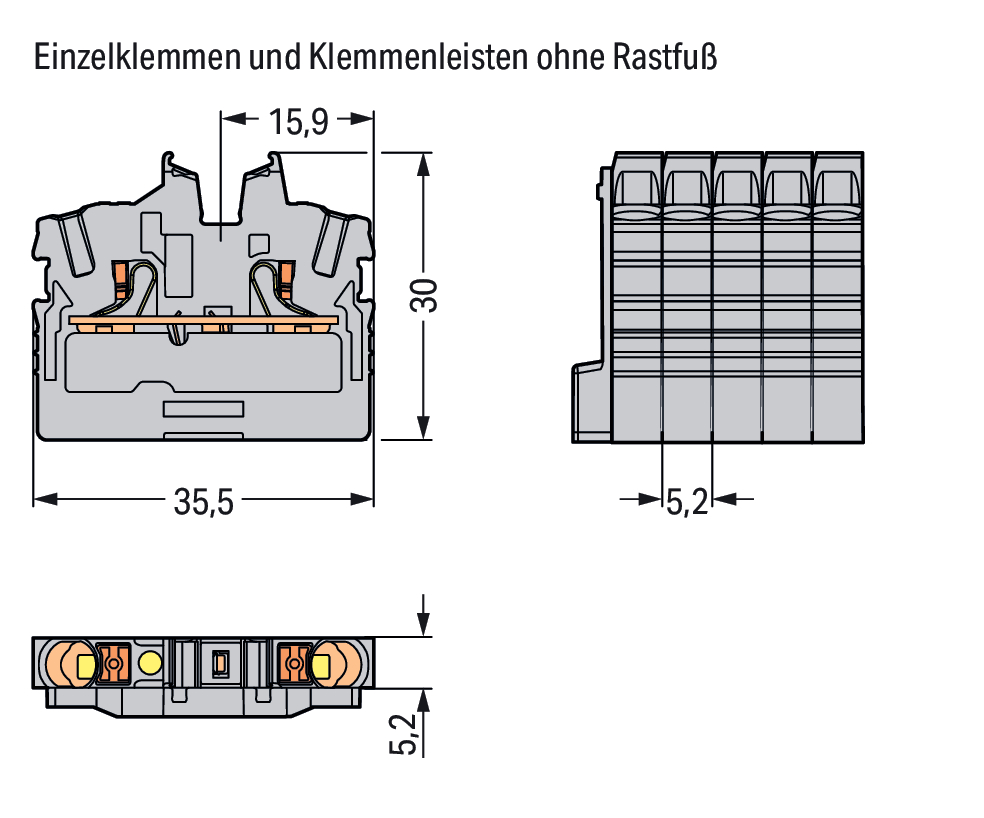

Height: | 35.5 mm |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Number of poles: | 1 |
Transparent: | no |
Explosion-tested version 'Ex e': | yes |
Colour: | Green/yellow |
Width: | 5.2 mm |
Rated voltage: | 800 V |
Depth: | 30 mm |
