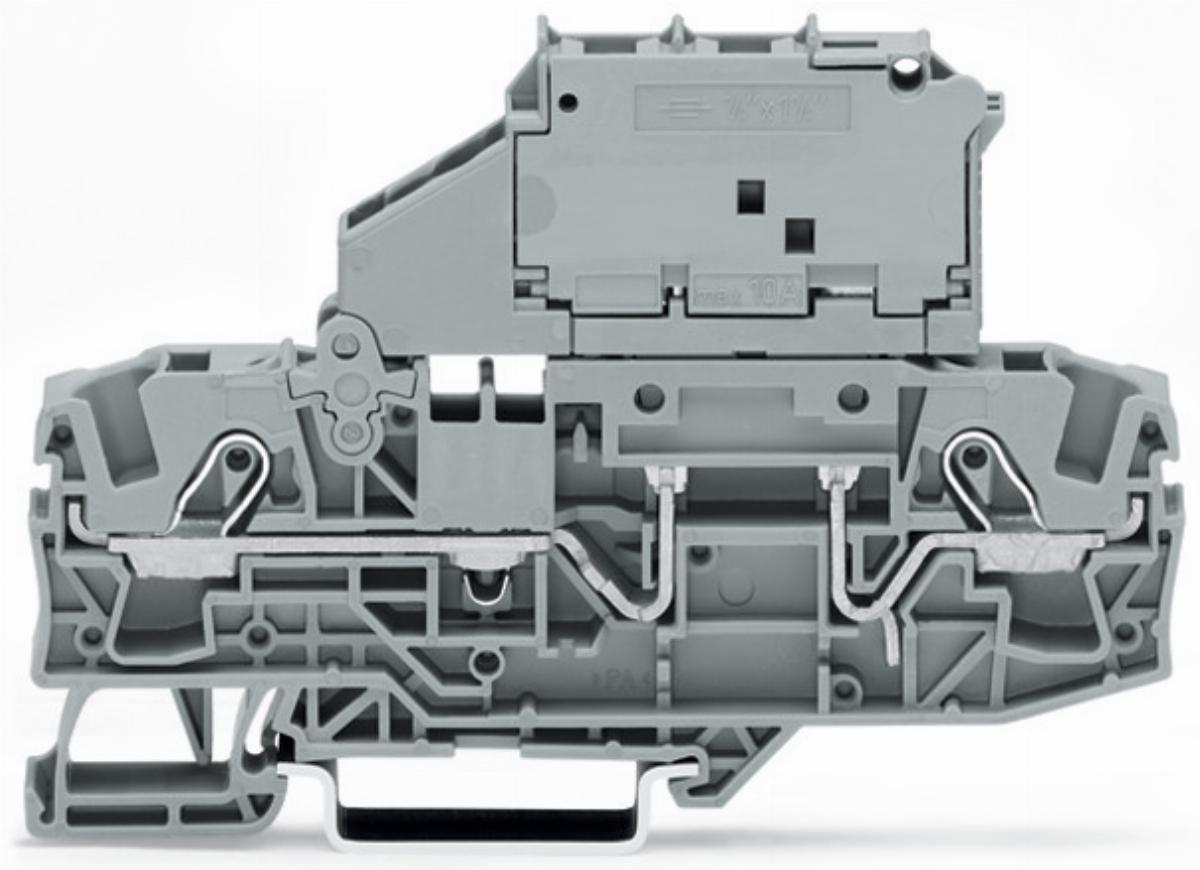

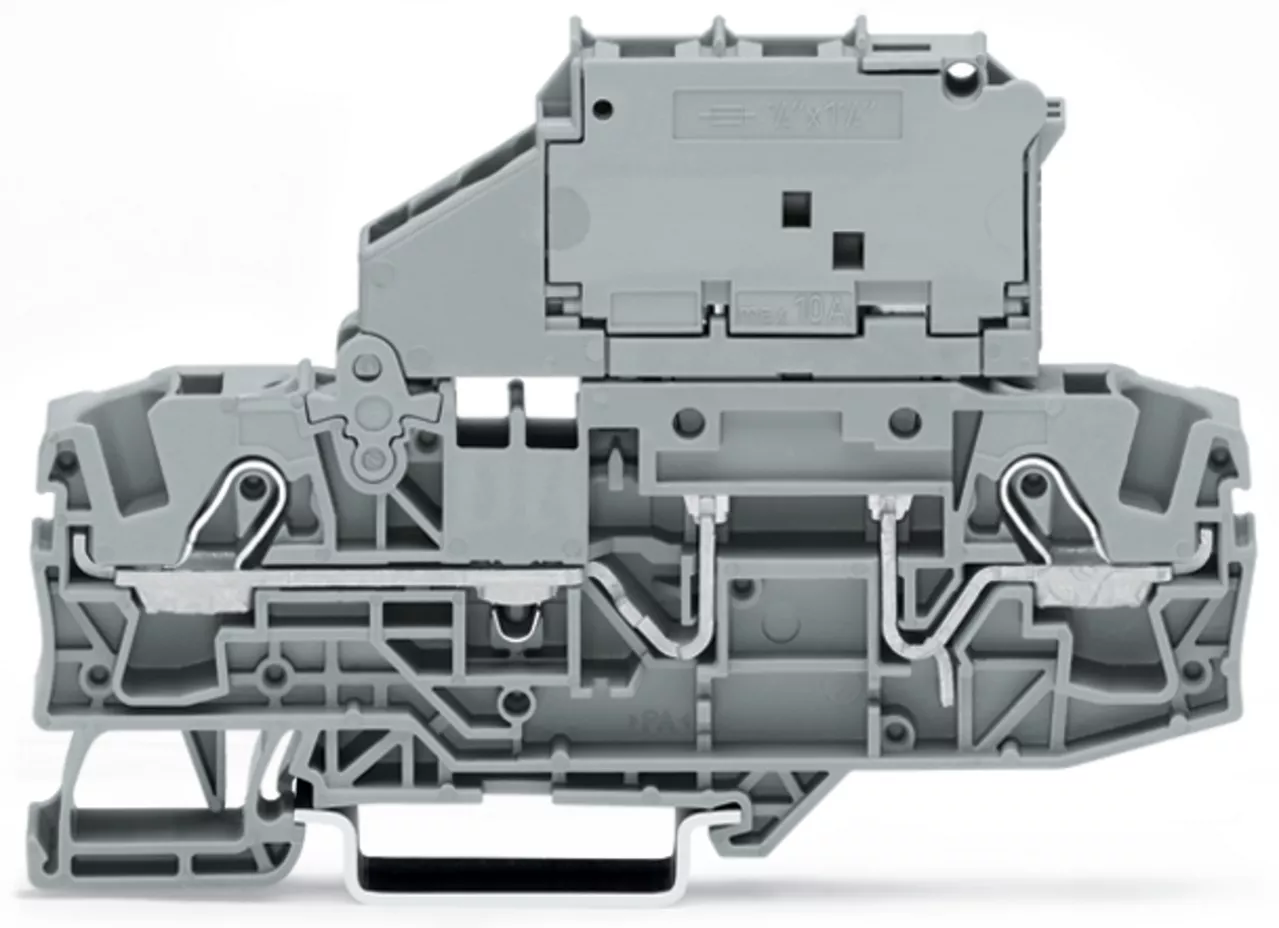

2-przewodowa złączka bezpiecznikowa z uchylną podstawką bezpiecznika, szara 2006-1631/1000-867
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2006-1631/1000-867 |
| GTIN(EAN) | 4050821183570 |
| Price unit | piece |
| Catalog price | 90,88 zł (73,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

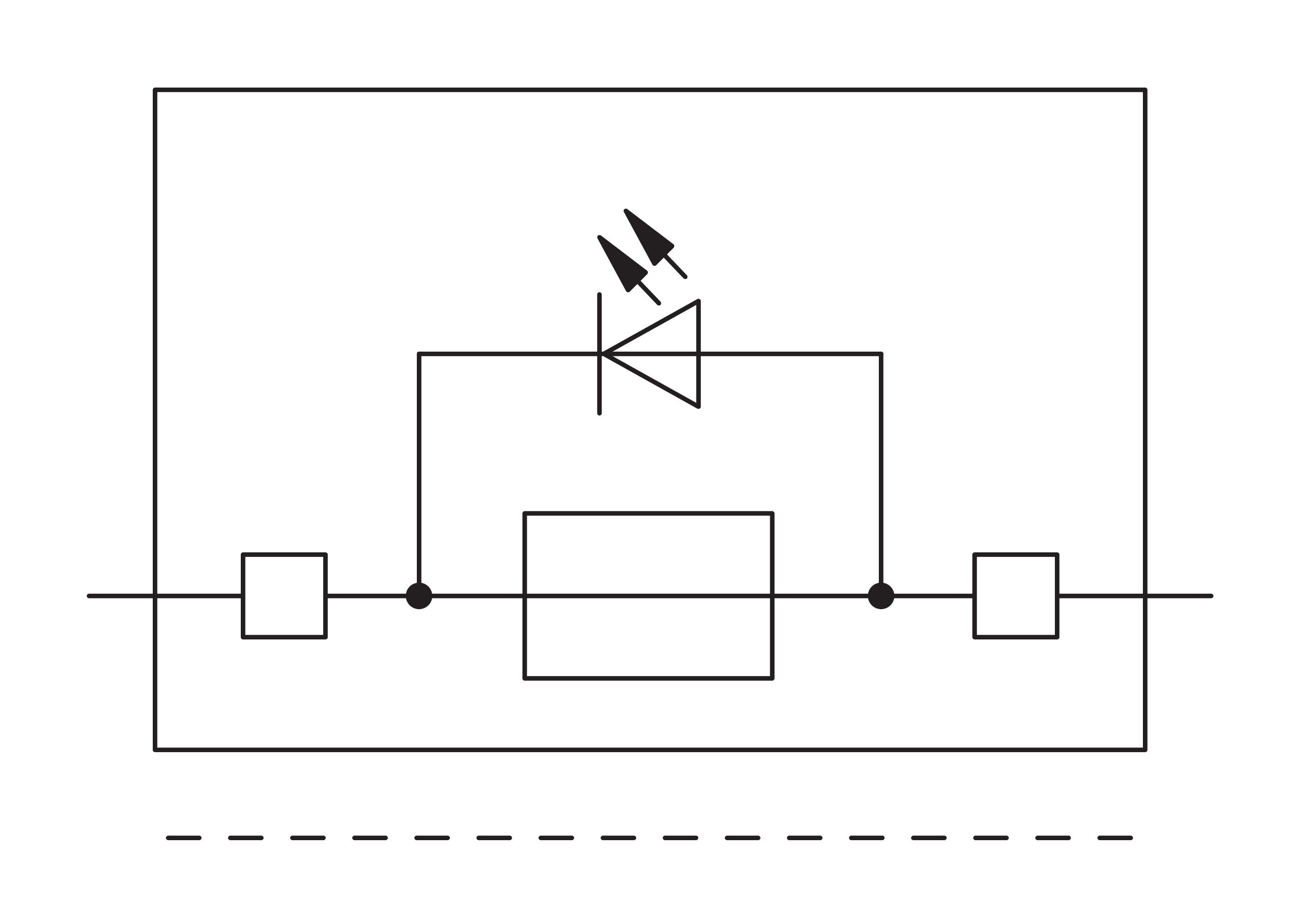

złączka bezpiecznikowa 2-przewodowa; z uchylną podstawką bezpiecznika; do aparatowej wkładki bezpiecznikowej ¼" x 1¼"; z sygnalizacją przepalenia wkładki przez LED; 120 V; na szynę TS 35 x 15 i 35 x 7,5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 24,85 g |
| ETIM class: | Fuse terminal block |
| Operating temperature: | 105 - 105 °C |
| Voltage type for defect indication: | AC |
| Rated current In: | 10 A |
| Height: | 96.3 mm |
| Number of levels: | 1 |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
| Connectable conductor cross section solid-core: | 1 - 10 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Colour: | Grey |
| Width: | 7.5 mm |
| Type of indication element for defect indication: | LED |
| Type of fuse insert: | Other |
| Type of fuse holder: | Swivelling |
| Supply voltage for defect-indication: | 120 - 120 V |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 800 V |
| Depth: | 59 mm |
