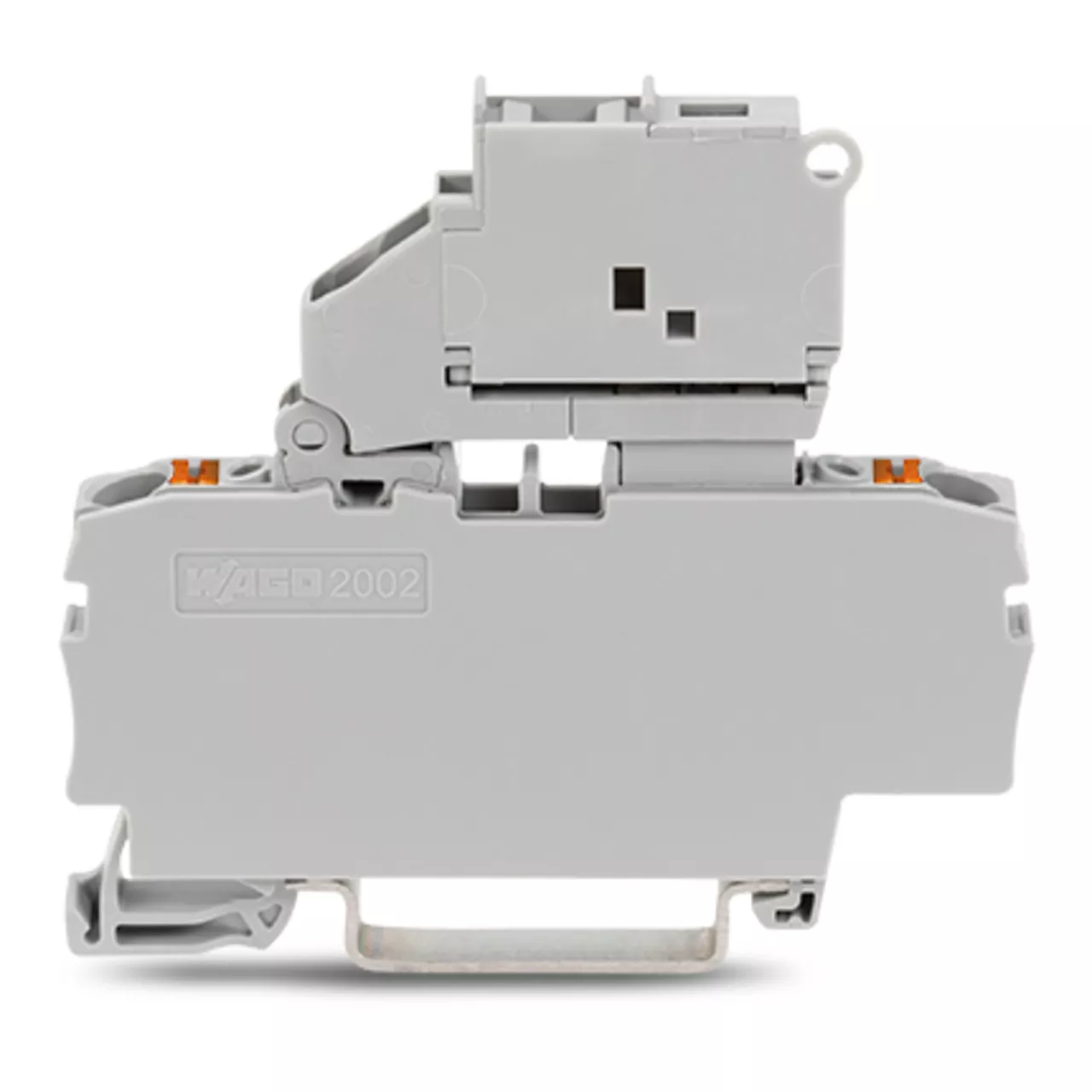

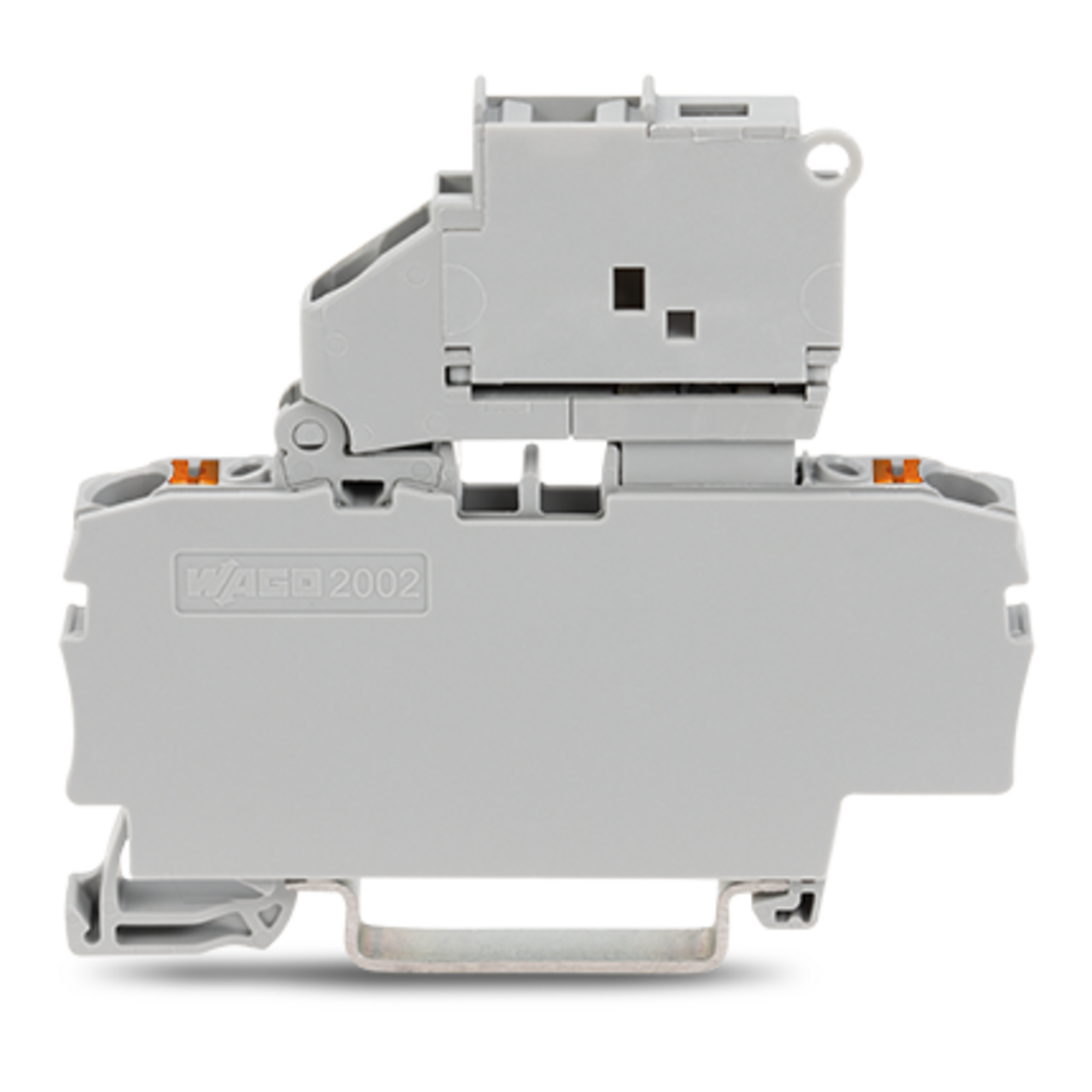

2-przewodowa złączka bezpiecznikowa z uchylną podstawką bezpiecznika i ścianka końcowa, szara 2202-1611
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2202-1611 |
| GTIN(EAN) | 4055143907910 |
| Price unit | piece |
| Catalog price | 28,59 zł (23,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
złączka bezpiecznikowa 2-przewodowa; z uchylną podstawką bezpiecznika; i ścianka końcowa; do wkładki bezpiecznikowej aparatowej 5 x 20 mm; z przyciskami; bez sygnalizacji przepalenia wkładki; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 13,52 g |
| ETIM class: | Fuse terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 66.1 mm |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 6.3 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Number of levels: | 1 |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Colour: | Grey |
| Width: | 6.2 mm |
| Rated voltage: | 250 V |
| Type of fuse insert: | G-fuse 5x20 mm |
| Depth: | 57.2 mm |
| Type of fuse holder: | Swivelling |
| Type of indication element for defect indication: | None |
