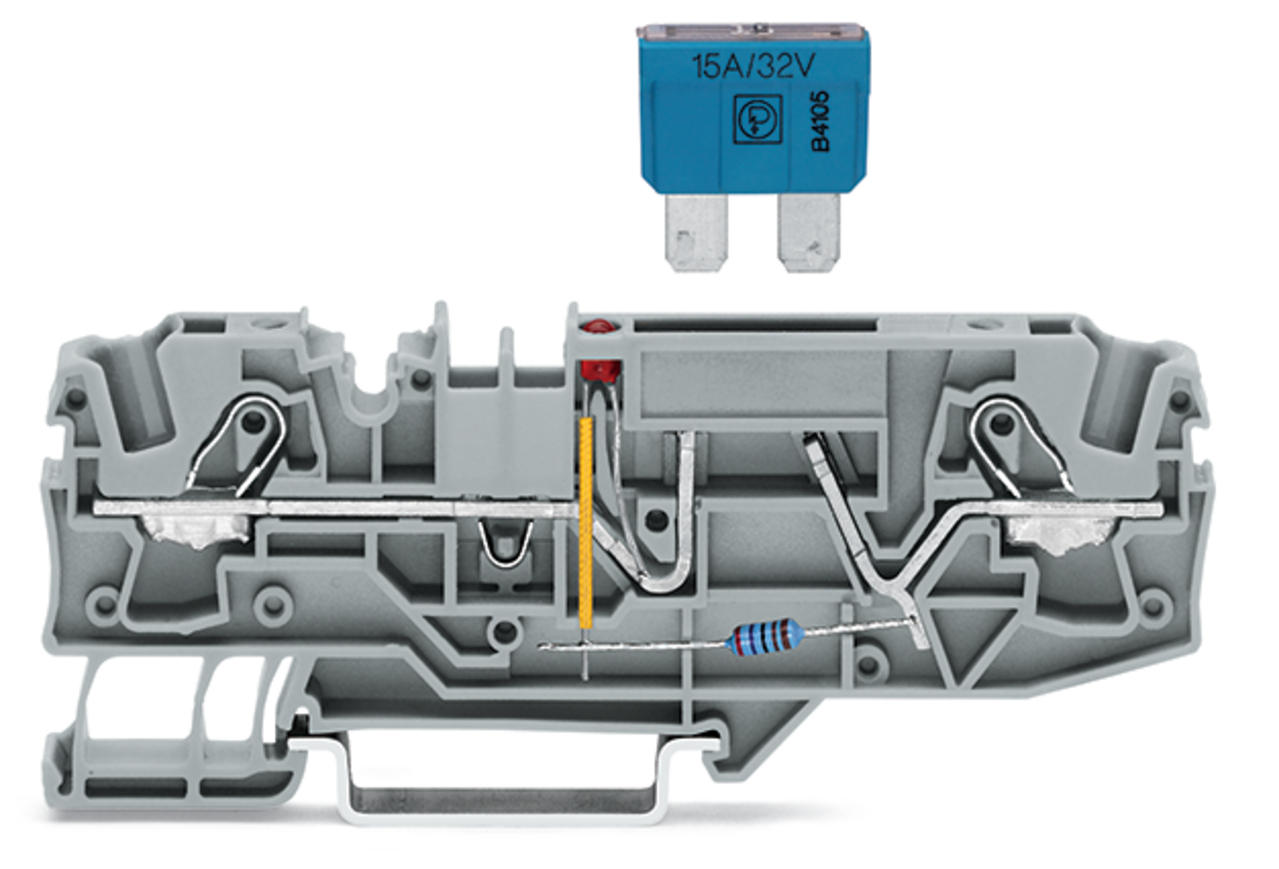

2-przewodowa złączka bezpiecznikowa do płaskich bezpieczników samochodowych, szara 2006-1681/1000-414
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2006-1681/1000-414 |
GTIN(EAN) | 4050821437802 |
Price unit | piece |
Catalog price | 73,75 zł (59,96 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 17,46 g |
ETIM class: | Fuse terminal block |
Operating temperature: | 105 - 105 °C |
Voltage type for defect indication: | AC |
Rated current In: | 25 A |
Height: | 96.3 mm |
Number of levels: | 1 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Colour: | Grey |
Width: | 7.5 mm |
Type of indication element for defect indication: | LED |
Type of fuse insert: | Blade fuse |
Type of fuse holder: | Pluggable |
Supply voltage for defect-indication: | 48 - 48 V |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 500 V |
Depth: | 32.9 mm |
