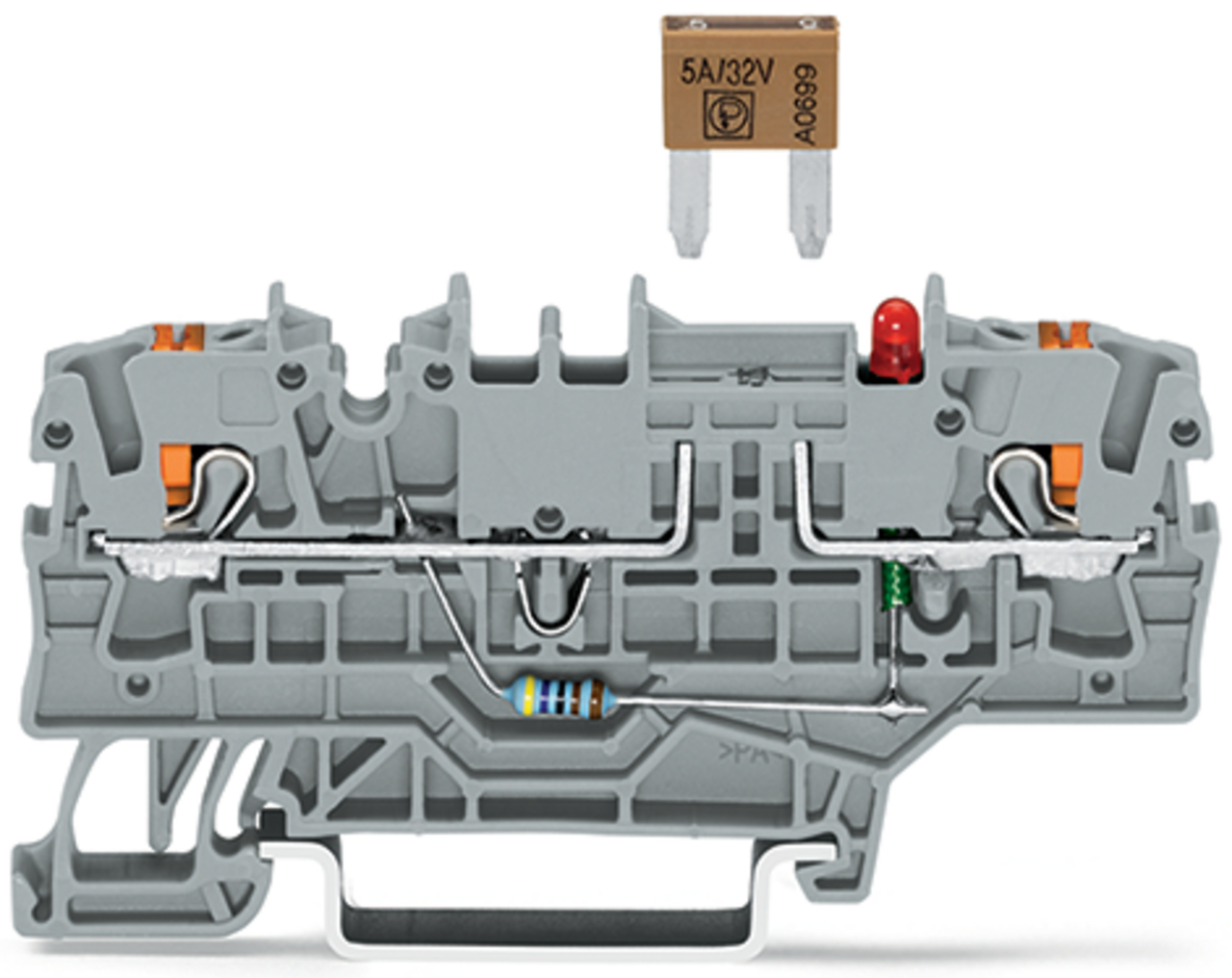

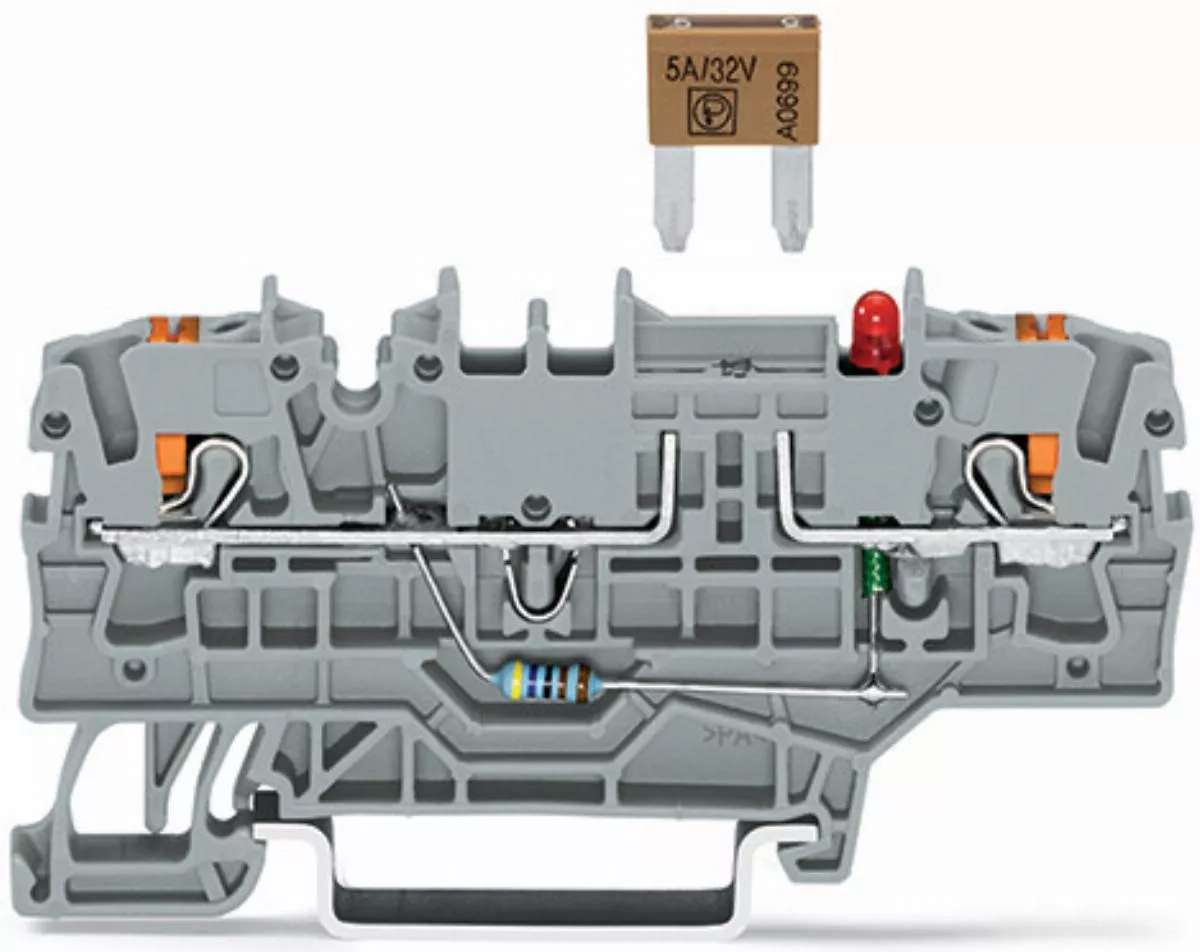

2-przewodowa złączka bezpiecznikowa do pł. bezpiecz. samochod. Mini, szara 2202-1981/1000-449
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2202-1981/1000-449 |
| GTIN(EAN) | 4066966083088 |
| Price unit | piece |
| Catalog price | 55,45 zł (45,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

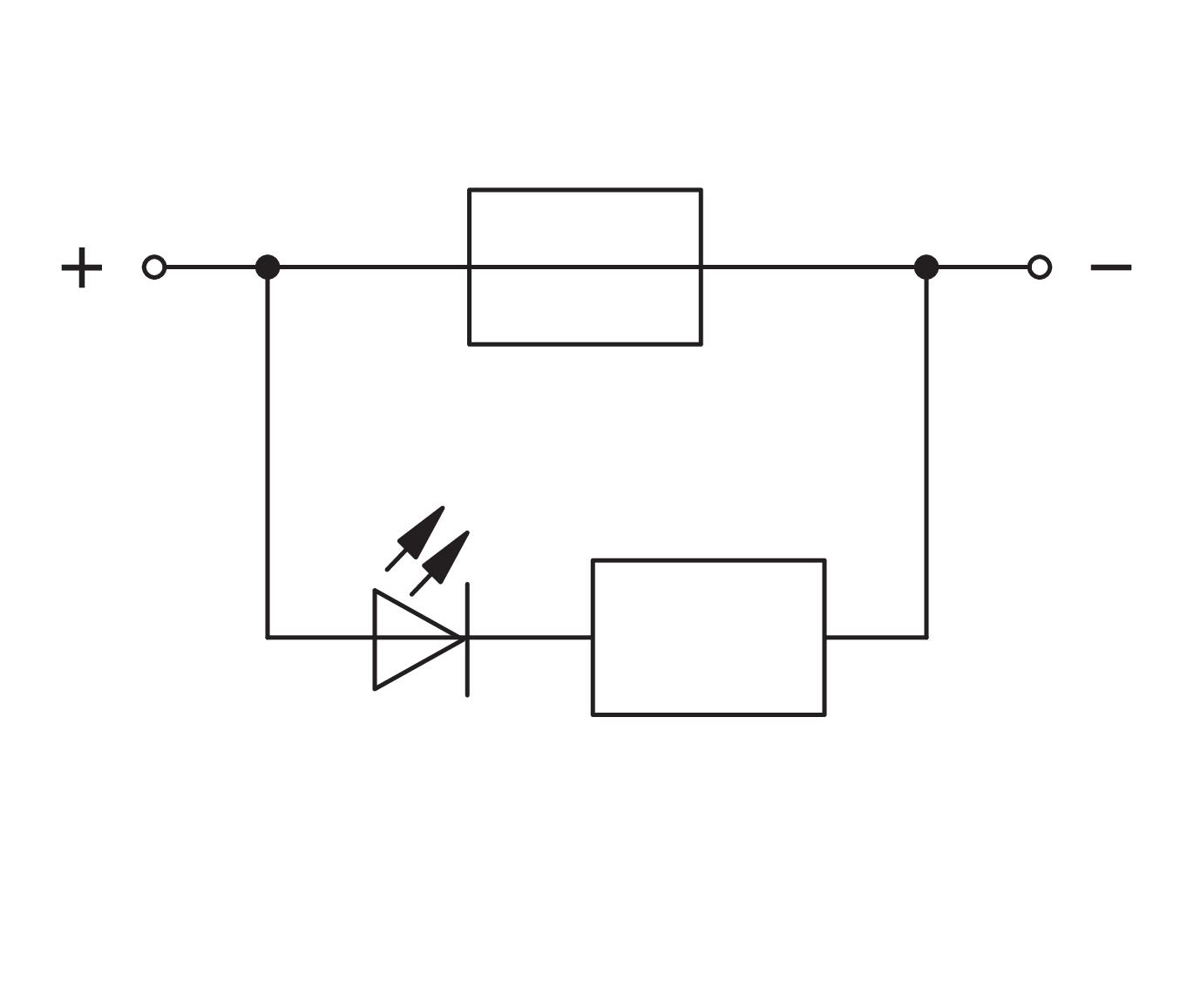

złączka bezpiecznikowa 2-przewodowa; do pł. bezpiecz. samochod. Mini; z możliwością pomiaru; z przyciskami; z sygnalizacją przepalenia wkładki przez LED; 12 V; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,5 g |
| ETIM class: | Fuse terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 72.9 mm |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
| Voltage type for defect indication: | AC |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 10 A |
| Supply voltage for defect-indication: | 12 - 12 V |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Number of levels: | 1 |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Colour: | Grey |
| Width: | 5.2 mm |
| Rated voltage: | 400 V |
| Type of fuse insert: | Blade fuse |
| Depth: | 32.9 mm |
| Type of fuse holder: | Pluggable |
| Type of indication element for defect indication: | LED |
