2-przewodowa listwa zaciskowa do zastosowań Ex e II 3-bieg., jasnoszara 264-133
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 264-133 |
GTIN(EAN) | 4044918423069 |
Price unit | piece |
Catalog price | 19,37 zł (15,75 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 13,4 g |
ETIM class: | Single- and multi-pole terminal strip |
Operating temperature: | 105 - 105 °C |
Halogen free: | yes |
Explosion-tested version 'Ex e': | yes |
Rated current In: | 23 A |

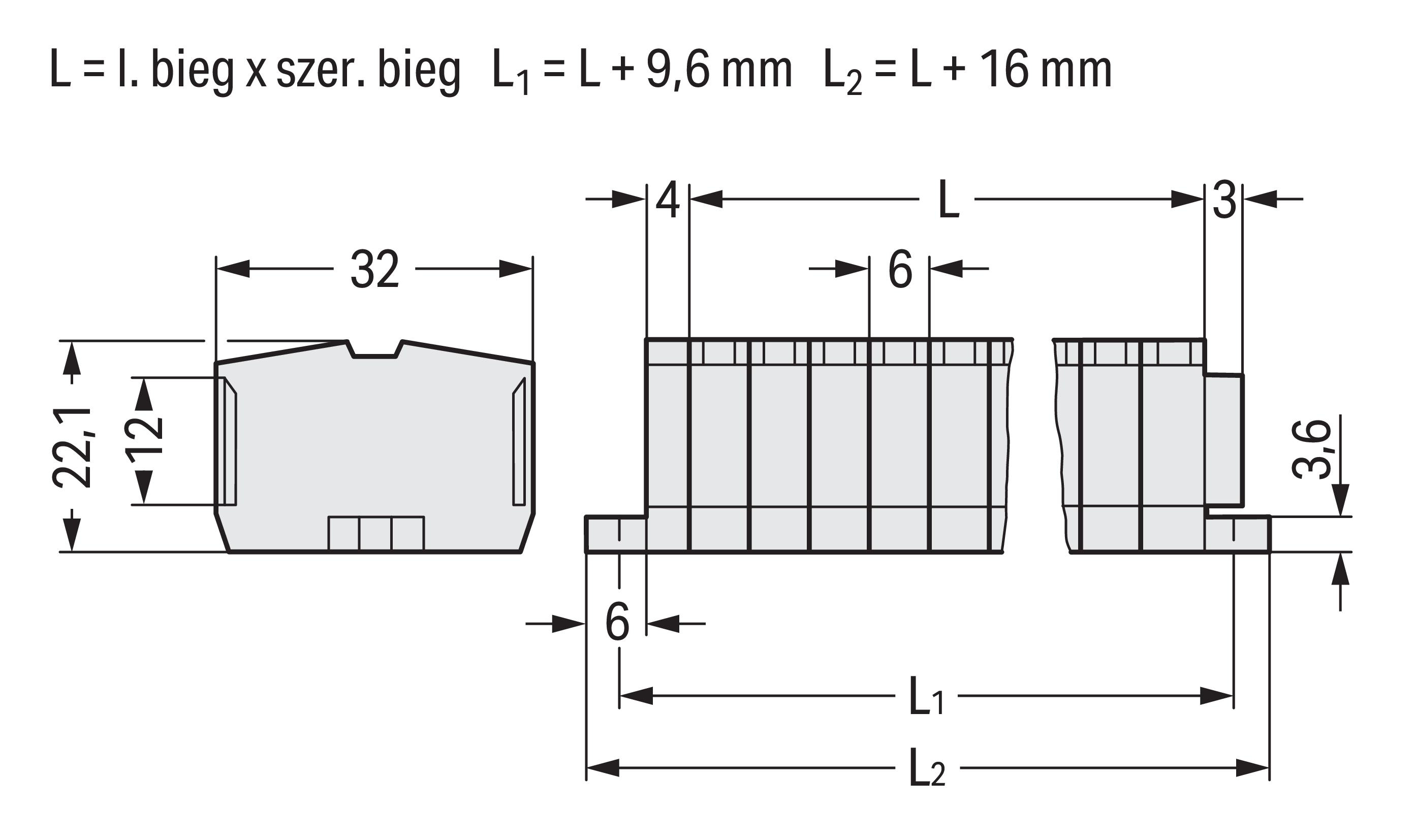

Height: | 32 mm |
Closing plate required: | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 1.5 mm² |
Mounting method: | Other |
Colour: | Grey |
Width: | 34 mm |
Number of clamp positions per pole: | 2 |
Inflammability class of insulation material according to with UL94: | V0 |
Drill hole distance centrically: | 27.6 mm |
Rated voltage: | 690 V |
Number of poles: | 3 |
Depth: | 22.1 mm |
Transparent: | no |
