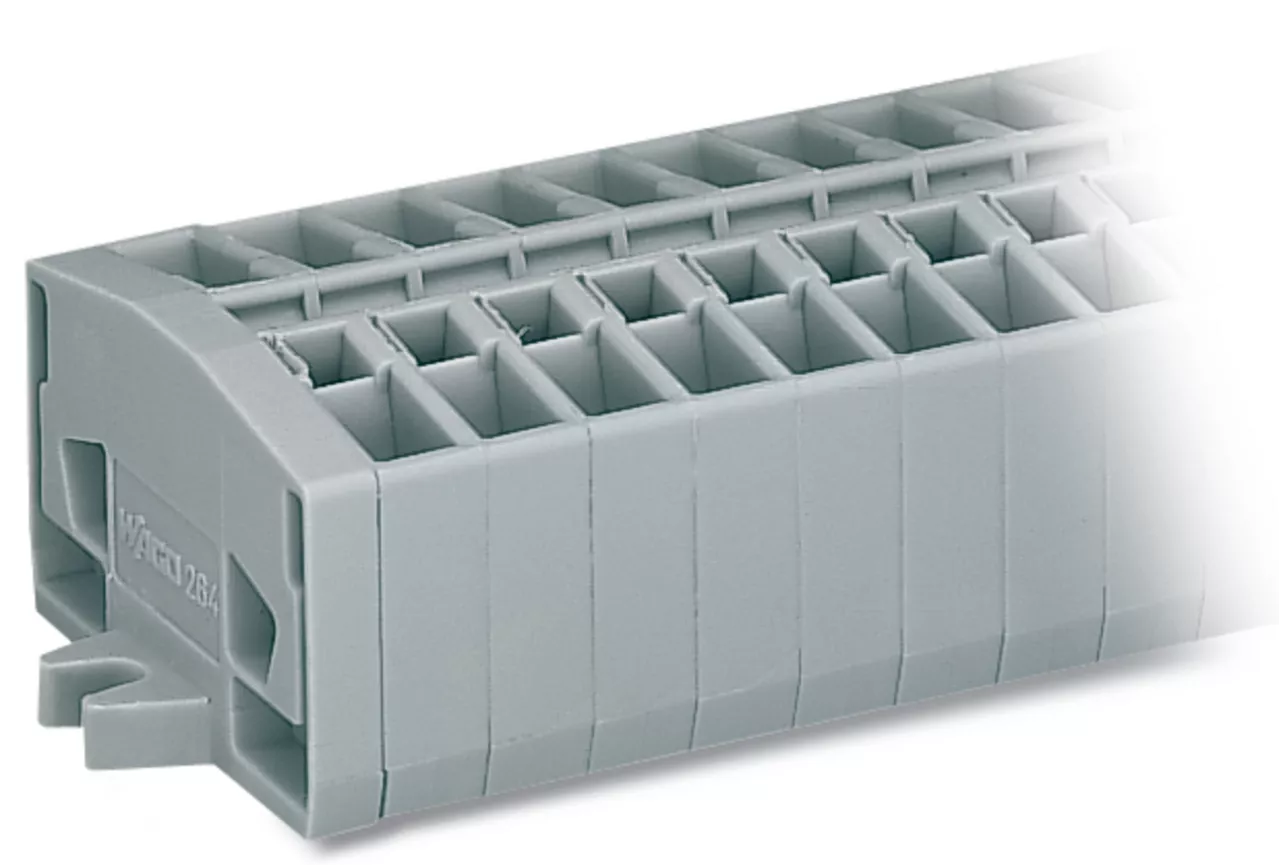

2-przewodowa listwa zaciskowa 7-bieg., szara 264-107
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 264-107 |
| GTIN(EAN) | 4044918425865 |
| Price unit | piece |
| Catalog price | 40,36 zł (32,81 zł + 23% VAT) |
| Sale price | from 15,81 zł / szt. (12,85 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
listwa zaciskowa 2-przewodowa; bez przycisków; z uchwytami montażowymi; 7-bieg.; do mocowania śrubowego i podobnego typu; otwór montażowy Ø 3,2 mm; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 28,31 g |
| Country of origin | Niemcy |
| ETIM class: | Single- and multi-pole terminal strip |
| Operating temperature: | 105 - 105 °C |
| Halogen free: | yes |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 24 A |

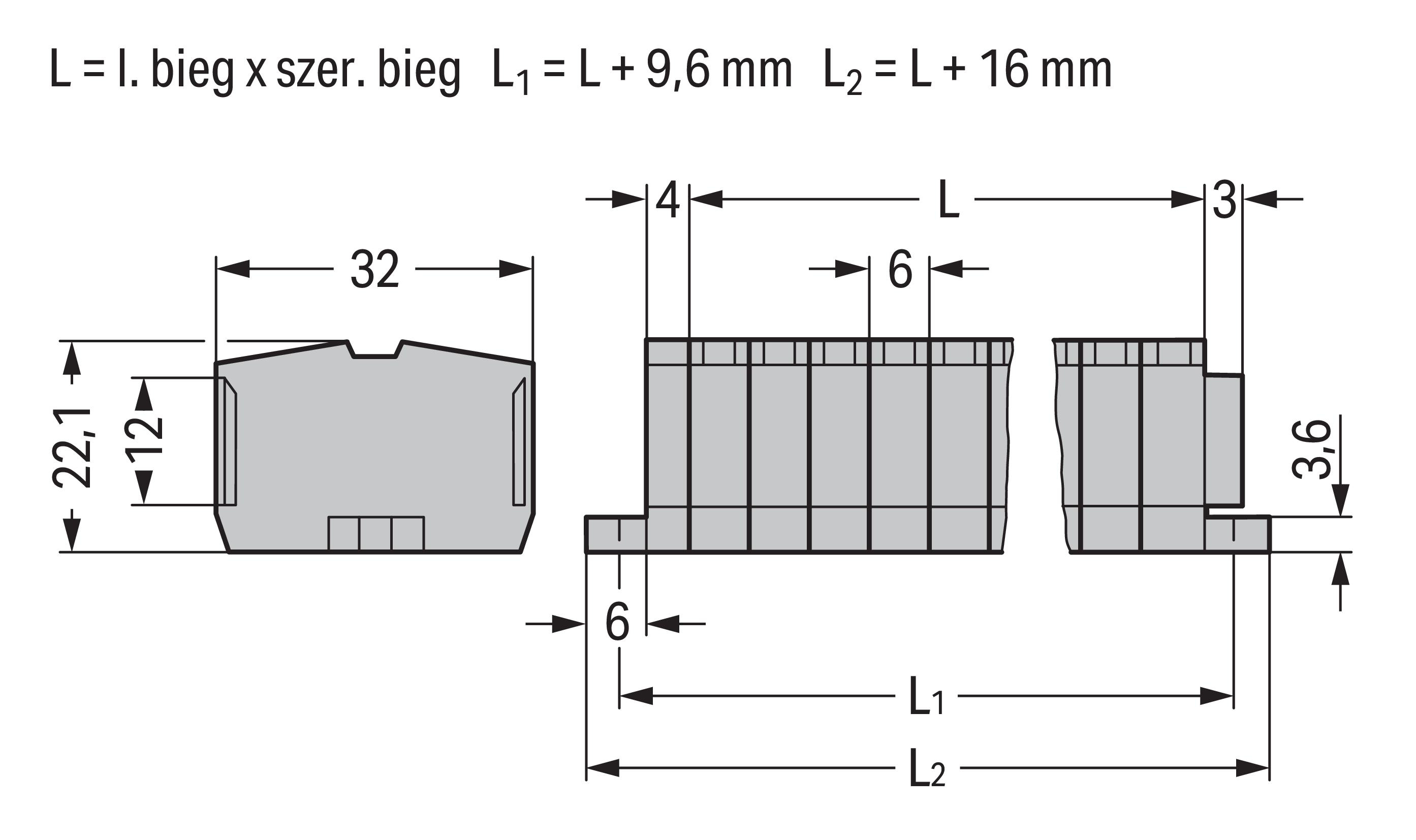

| Height: | 32 mm |
| Closing plate required: | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0,08 - 2,5 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0,08 - 2,5 mm² |
| Connectable conductor cross section solid-core: | 0,08 - 2,5 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0,25 - 1,5 mm² |
| Mounting method: | Other |
| Colour: | Grey |
| Width: | 58 mm |
| Number of clamp positions per pole: | 2 |
| Inflammability class of insulation material according to with UL94: | V0 |
| Drill hole distance centrically: | 51,6 mm |
| Rated voltage: | 800 V |
| Number of poles: | 7 |
| Depth: | 22,1 mm |
| Transparent: | no |
