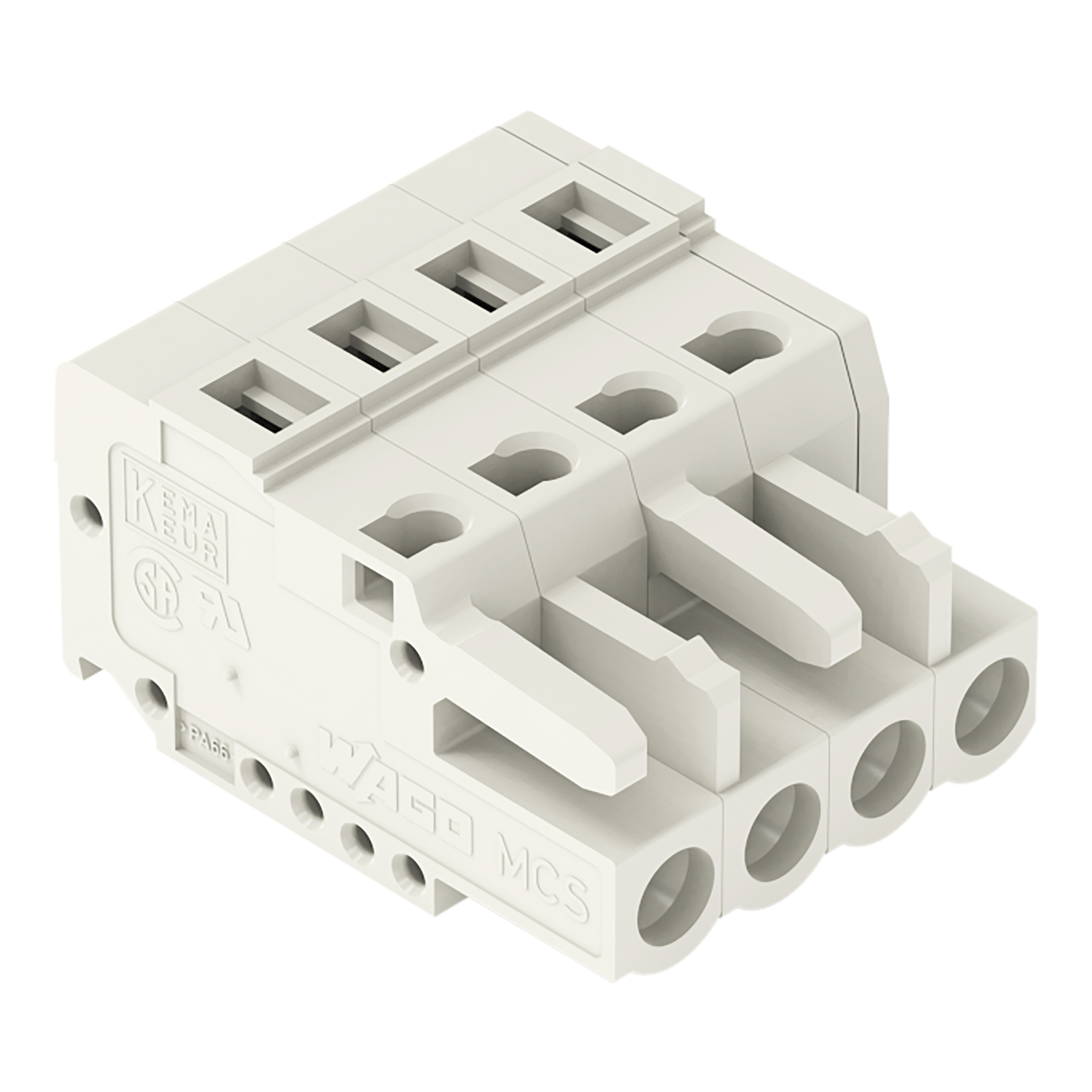

1-przewodowe gniazdo CAGE CLAMP®, pełna ochrona przed błędnym wetknięciem, jasnoszary 721-104/026-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 721-104/026-000 |
| GTIN(EAN) | 4044918353557 |
| Price unit | piece |
| Catalog price | 17,56 zł (14,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo 1-przewodowe; CAGE CLAMP®; 2,5 mm²; raster 5 mm; 4-bieg.; 100% ochrona przed błędnym połączeniem; 2,50 mm²; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7,47 g |
| ETIM class: | Cable connector |
| Coating housing: | Uncoated |
| Operating temperature: | -60 - 85 °C |
| Housing material: | Plastic |
| Type of connection: | Printed circuit board to cable |
| Angle contact/conductor connection: | 180° (horizontal) |
| Connectable cable type: | Tubular cable |
| Contact type: | Bus |
| Rated current In: | 16 A |
| Type of electric connection: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Over voltage category: | III |
| Rated surge voltage: | 4 kV |
| Material contact: | Other copper alloys |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Housing colour: | Grey |
| Modular spacing contacts: | 5 mm |
| With protective conductor: | no |
| Pollution degree: | 2 |
| Degree of protection (IP), mounted: | IP20 |
| Material of contact surface: | Tin |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 320 V |
| Number of poles: | 4 |
| Number of plug-in contact rows: | 1 |
| Modular spacing connections: | 5 mm |
