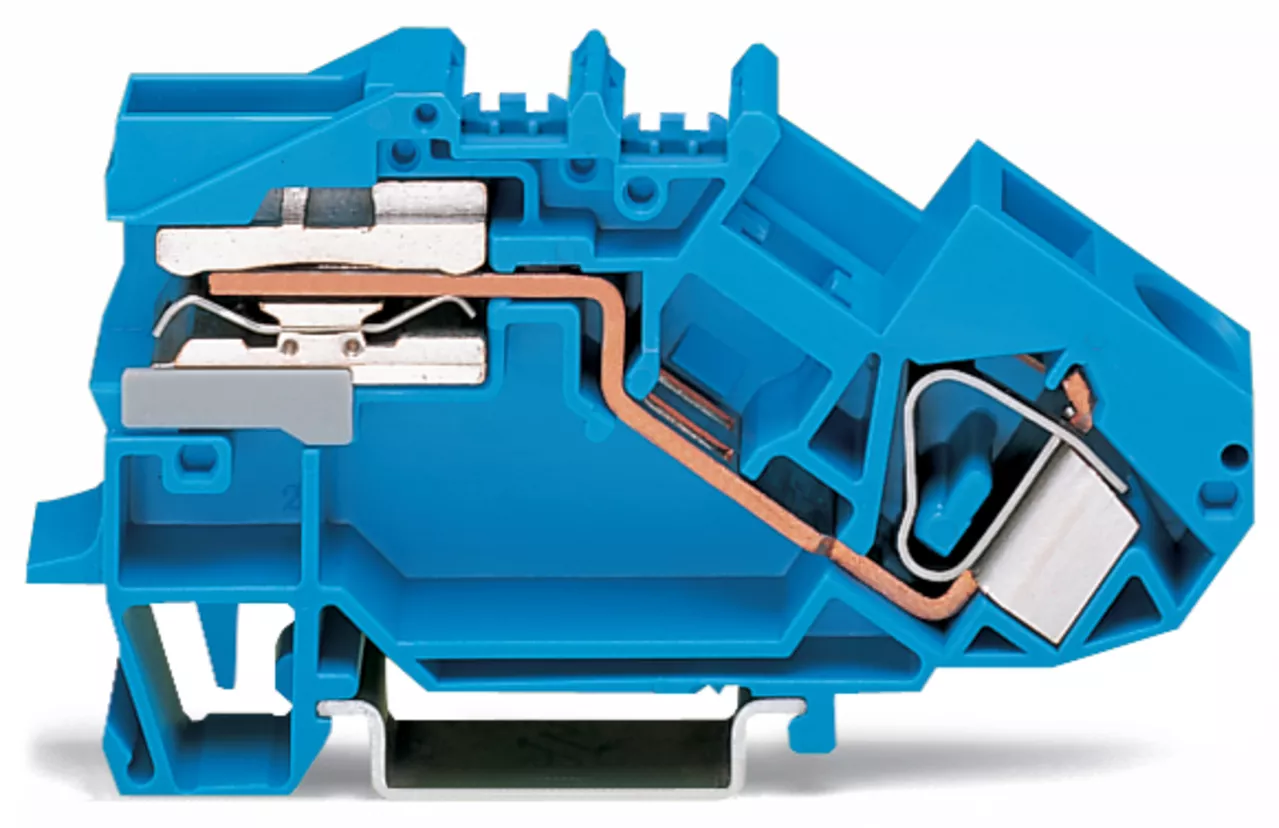

1-przewodowa złączka rozłączalna N 16 mm², niebieska 783-613
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 783-613 |
GTIN(EAN) | 4044918691451 |
Price unit | piece |
Catalog price | 28,36 zł (23,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka rozłączalna N 1-przewodowa; 16 mm²; CAGE CLAMP®; 16,00 mm²; niebieski
Additional features:
Information | Value |
---|---|
Net weight: | 43,52 g |
ETIM class: | Neutral disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 88.5 mm |
Connectable conductor cross section solid-core: | 0.2 - 16 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 68 A |
Suitable for N-busbar: | 3x10 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Type of electric connection: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 16 mm² |
Connecting plate required: | yes |
Connectable conductor cross section multi-wired: | 0.2 - 16 mm² |
Colour: | Blue |
Rated voltage: | 400 V |
Width: | 12 mm |
Depth: | 43.5 mm |
Number of clamp positions: | 1 |
