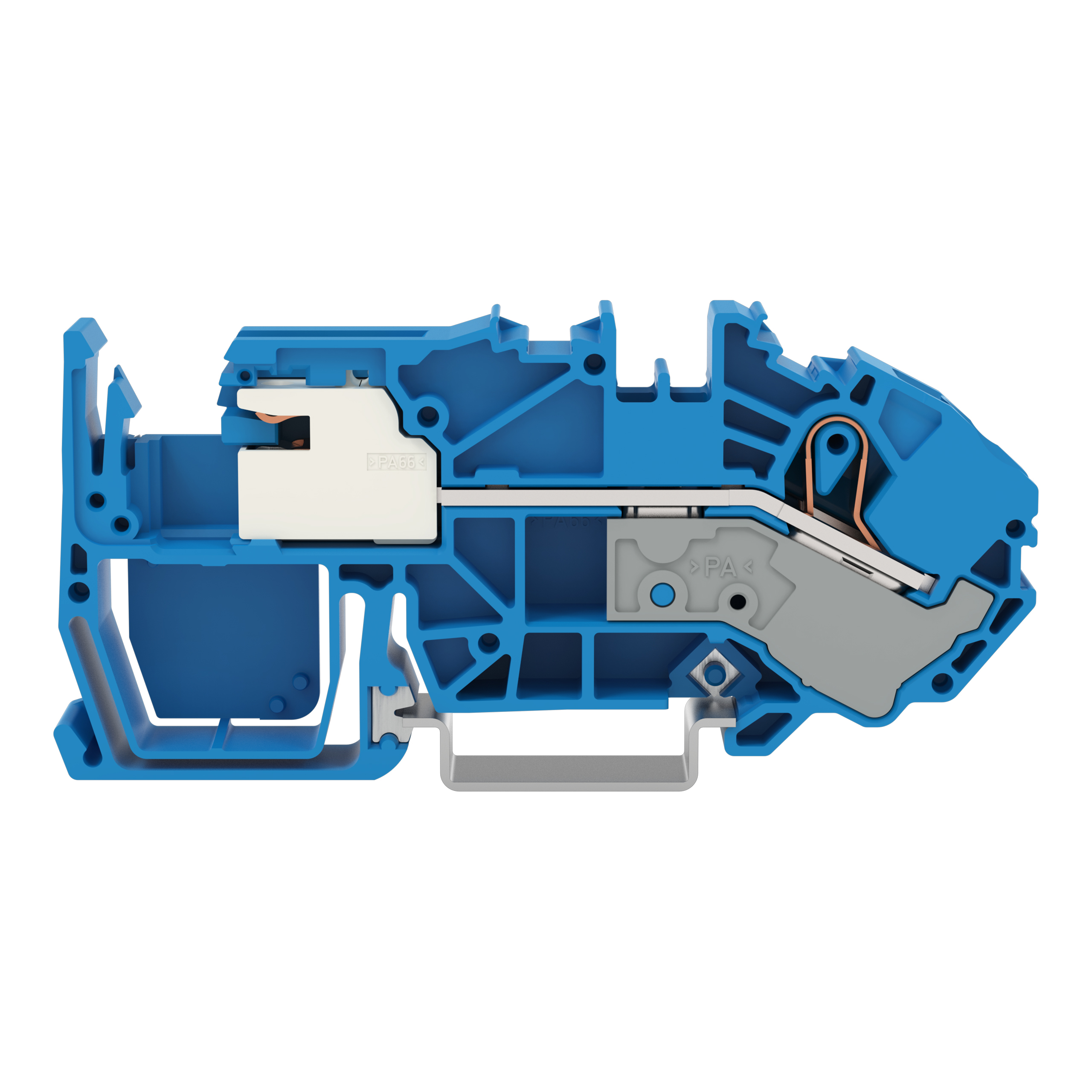

1-przewodowa złączka rozłączalna N 16 mm², niebieska 2016-7714
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2016-7714 |
| GTIN(EAN) | 4045454685300 |
| Price unit | piece |
| Catalog price | 29,74 zł (24,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka rozłączalna N 1-przewodowa; 16 mm²; Push-in CAGE CLAMP®; 16,00 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 34,11 g |
| ETIM class: | Neutral disconnect terminal block |
| Operating temperature: | 105 - 105 °C |
| Connecting plate required: | yes |
| Rated current In: | 76 A |
| Type of electric connection: | Spring clamp connection |
| Height: | 99.7 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 25 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 16 mm² |
| Connectable conductor cross section solid-core: | 2.5 - 16 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 16 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Colour: | Blue |
| Width: | 12 mm |
| Number of clamp positions: | 1 |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 250 V |
| Depth: | 40.8 mm |
| Suitable for N-busbar: | 3x10 mm |
