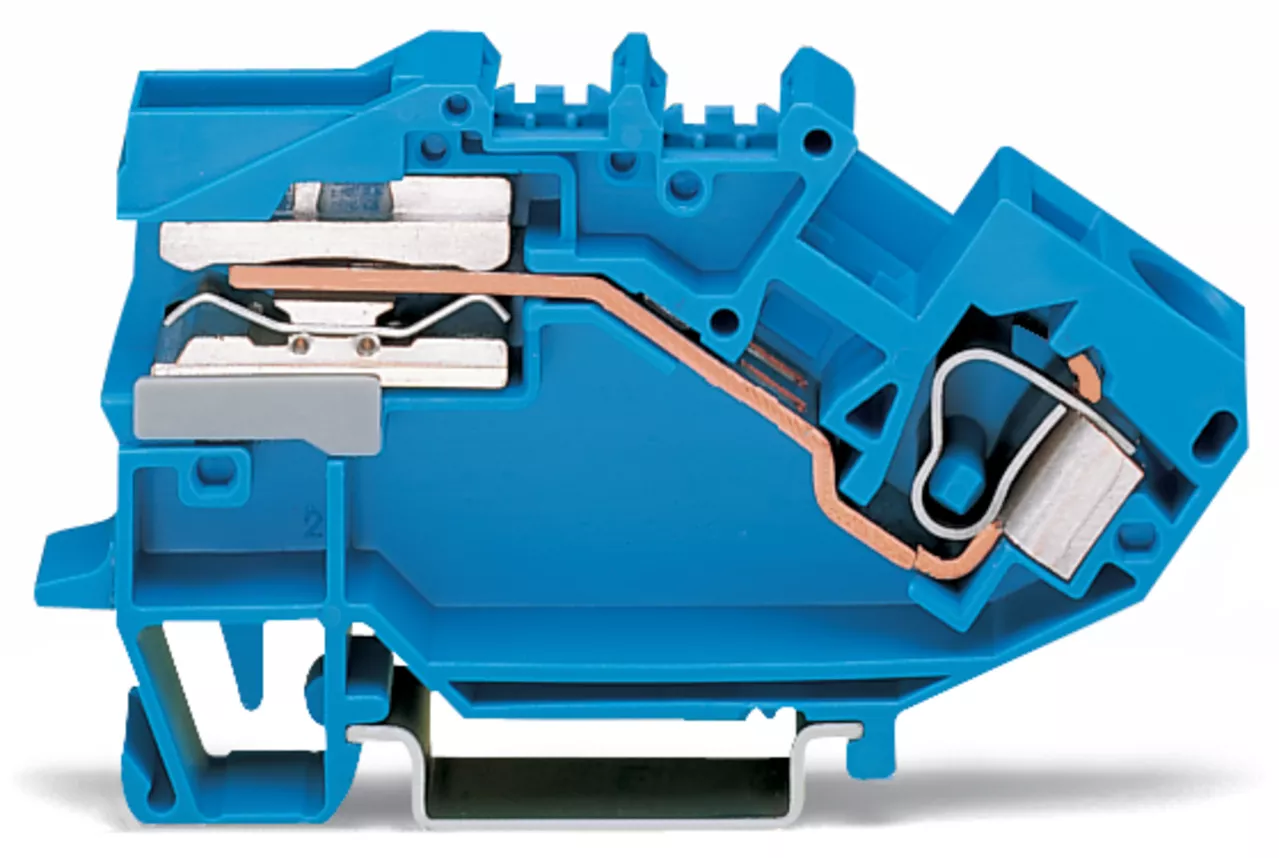

1-przewodowa złączka rozłączalna N 10 mm², niebieska 784-613
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 784-613 |
GTIN(EAN) | 4045454016975 |
Price unit | piece |
Catalog price | 26,08 zł (21,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka rozłączalna N 1-przewodowa; 10 mm²; CAGE CLAMP®; 10,00 mm²; niebieski
Additional features:
Information | Value |
---|---|
Net weight: | 32,85 g |
ETIM class: | Neutral disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 82.5 mm |
Connectable conductor cross section solid-core: | 0.2 - 10 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 57 A |
Suitable for N-busbar: | 3x10 mm |
Inflammability class of insulation material according to with UL94: | 5V |
Type of electric connection: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 10 mm² |
Connecting plate required: | yes |
Connectable conductor cross section multi-wired: | 0.2 - 10 mm² |
Colour: | Blue |
Rated voltage: | 400 V |
Width: | 10 mm |
Depth: | 43.5 mm |
Number of clamp positions: | 1 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:10:50 |
Files to download: | |
External links: |
