Wtyczka izolacyjna odbiornikowa 32A/400V 3p+z IP-44 116
| Information | Value |
|---|---|
| Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
| Symbol | 116 |
| GTIN(EAN) | 5903874958161 |
| Price unit | piece |
| Catalog price | 38,62 zł (31,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

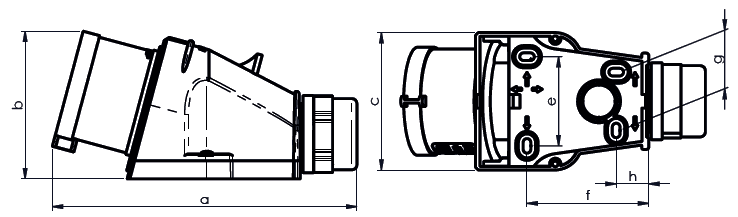

Wtyczka izolacyjna odbiornikowa,32A,400V,4 styk,3P+Z,IP44,Wymiary gabarytowe (mm) dł.166,szer.72,wys.78,Przyłączalność przewodów 2.5–6.0
Additional features:
| Information | Value |
|---|---|
| Net weight: | 225 g |
| ETIM class: | CEE appliance inlet (IEC 60309) |
| IEC-amperage: | 32 A |
| Amperage according to UL/CSA (for UL-version): | 32 A |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Number of poles: | 4 |
| Clock hour position: | 6 h |
| Identification colour: | Red |
| RAL-number: | 3020 |
| Degree of protection (IP): | IP44 |
| Connection system: | Screwed terminal |
| Construction type: | Surface mounted device plug |
| Phase inverter: | yes |
| Insert direction: | Straight |
| Material: | Plastic |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
| Military model: | no |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-01-02 00:03:27 |
| Files to download: |
