Wtyczka izolacyjna odbiornikowa 32A/400V 3p+n+z IP-44 117
| Information | Value |
|---|---|
| Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
| Symbol | 117 |
| GTIN(EAN) | 5903874958178 |
| Price unit | piece |
| Catalog price | 42,93 zł (34,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

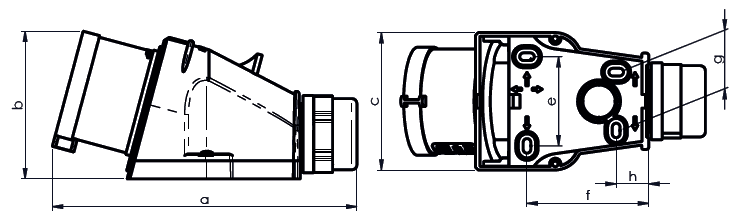

Wtyczka izolacyjna odbiornikowa,32A,400V,5 styk,3P+N+Z,IP44,Wymiary gabarytowe (mm) dł.180,szer.65,wys.68,Przyłączalność przewodów 2.5–6.0
Additional features:
| Information | Value |
|---|---|
| Net weight: | 285 g |
| ETIM class: | CEE appliance inlet (IEC 60309) |
| IEC-amperage: | 32 A |
| Amperage according to UL/CSA (for UL-version): | 32 A |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Number of poles: | 5 |
| Clock hour position: | 6 h |
| Identification colour: | Red |
| RAL-number: | 3020 |
| Degree of protection (IP): | IP44 |
| Connection system: | Screwed terminal |
| Construction type: | Surface mounted device plug |
| Phase inverter: | no |
| Insert direction: | Straight |
| Material: | Plastic |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
| Military model: | no |
