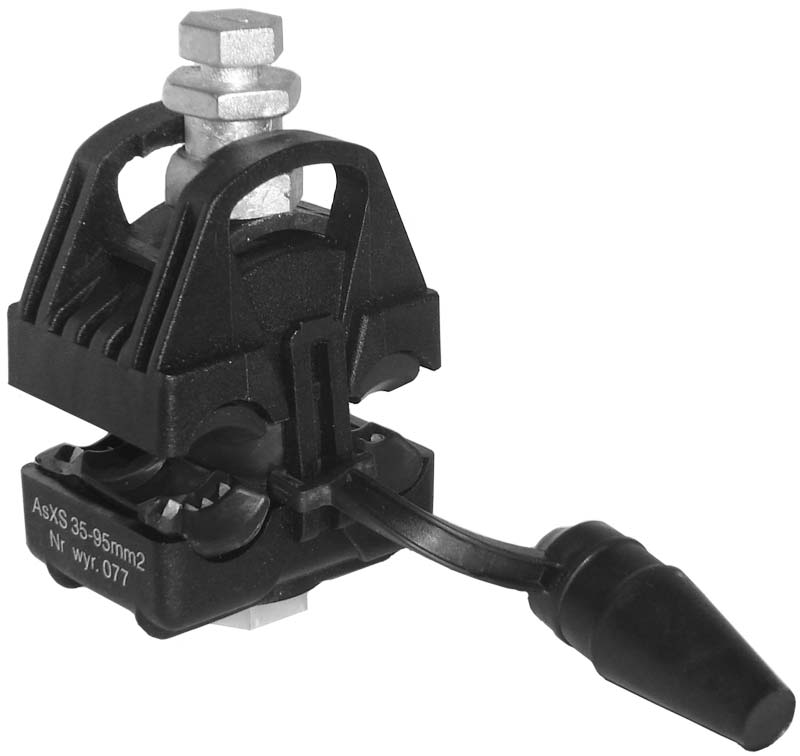

ZP77 zacisk przebijający izolację AsXS 35-95mm2/AsXS 16-35mm2
| Information | Value |
|---|---|
| Supplier | Tarnowskie Zakłady Osprzętu Elektrycznego TAREL sp. z o.o. |
| Symbol | 077 |
| GTIN(EAN) | 5903874950776 |
| Price unit | piece |
| Catalog price | 31,73 zł (25,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 125 g |
| ETIM class: | Branch terminal |
| Nominal cross section main conductor, SE: | 16 - 95 mm² |
| Nominal cross section main conductor, SM: | 16 - 95 mm² |
| Nominal cross section branch conductor, SE/RE: | 16 - 50 mm² |
| Nominal cross section branch conductor, SM/RM: | 16 - 50 mm² |
| Material main conductor: | Aluminium |
| Material branch conductor: | Aluminium |
| Terminal insulated: | no |
| Clamping channel opening main conductor: | Both sides open |
| Clamping channel opening branch conductor: | One side open |
| Surface protection: | Bare |
| Type of connection: | Insulation piercing connector IPC |
